LED Bulbs & Tubes>>>Lights & Lighting
Brand Name Mr.white
Item Type LED Bulbs
Beam Angle(°) 120°
LED Chip Brand Epistar
Base Type 60*8mm 3V cob led strip
Voltage DC 2-2.5V(Red),3-3.7V(Others)
Color Temperature Cool White(5500-7000K)
Average Life (hrs) 15000
Shape Bar
Certification CCC
Certification ROHS
Certification ce
Certification FCC
Led Bulb Type Car Bulb
Length 60x8mm
LED Chip Model 1W High Power
Luminous Flux 250 - 499 Lumens
Occasion Bedroom
Power Tolerance 3%
Type Mr.white-6008 1.5W 3W
Board size 60x8mm
Lighting area 50x7mm
Power 1.5W 3W
Forward Voltage(Red) 2-2.5V DC
Forward Voltage(Warm White/White/Blue) 3-3.7V DC
Max Forward Current(1W) 300mA DC
Max Forward Current(3W) 1000mA DC
Warm White 2800-3200K
Cold White 6200-6800K
Red(wavelength) 620-630nm
Blue(wavelength) 450-460nm
Main Material Aluminum-board silicon rubber
Notice Please use a necessary heatsink when used
application Bicycle light / Work light / flash light / table lamp
Emitting Color
Wattage
1.5W 300mA
3W 1000mA
Number of LED Chip
1pcs 60x8mm
dianxiaobao_1
hot sale 3V 3.7V DC 60mm 8mm LED COB Strip 1.5W 3W Warm Cold White Blue Red COB LED light source for DIY Bicycle work lamp
hot sale 3V 3.7V DC 60mm 8mm LED COB Strip 1.5W 3W Warm Cold White Blue Red COB LED light source for DIY Bicycle work lamp

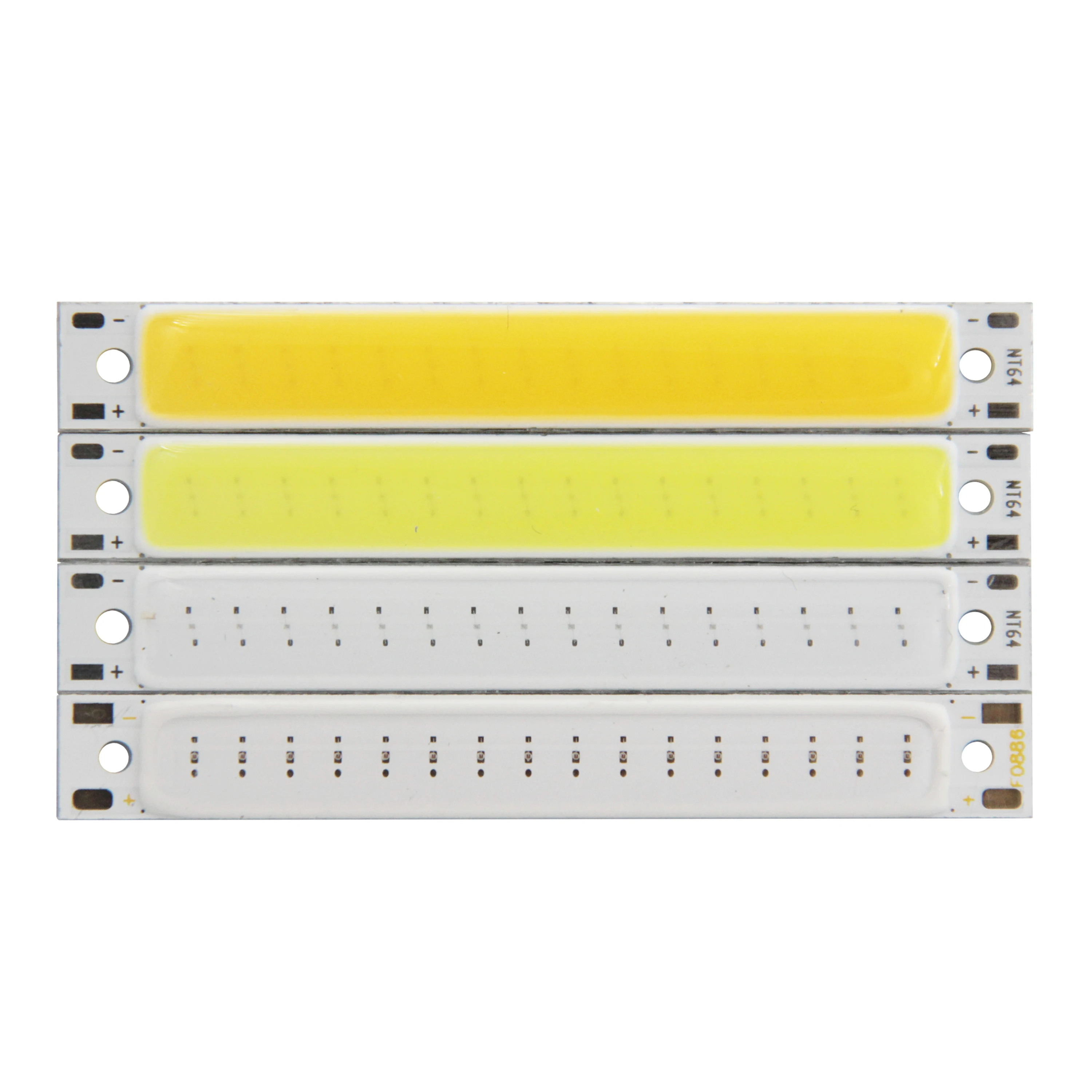

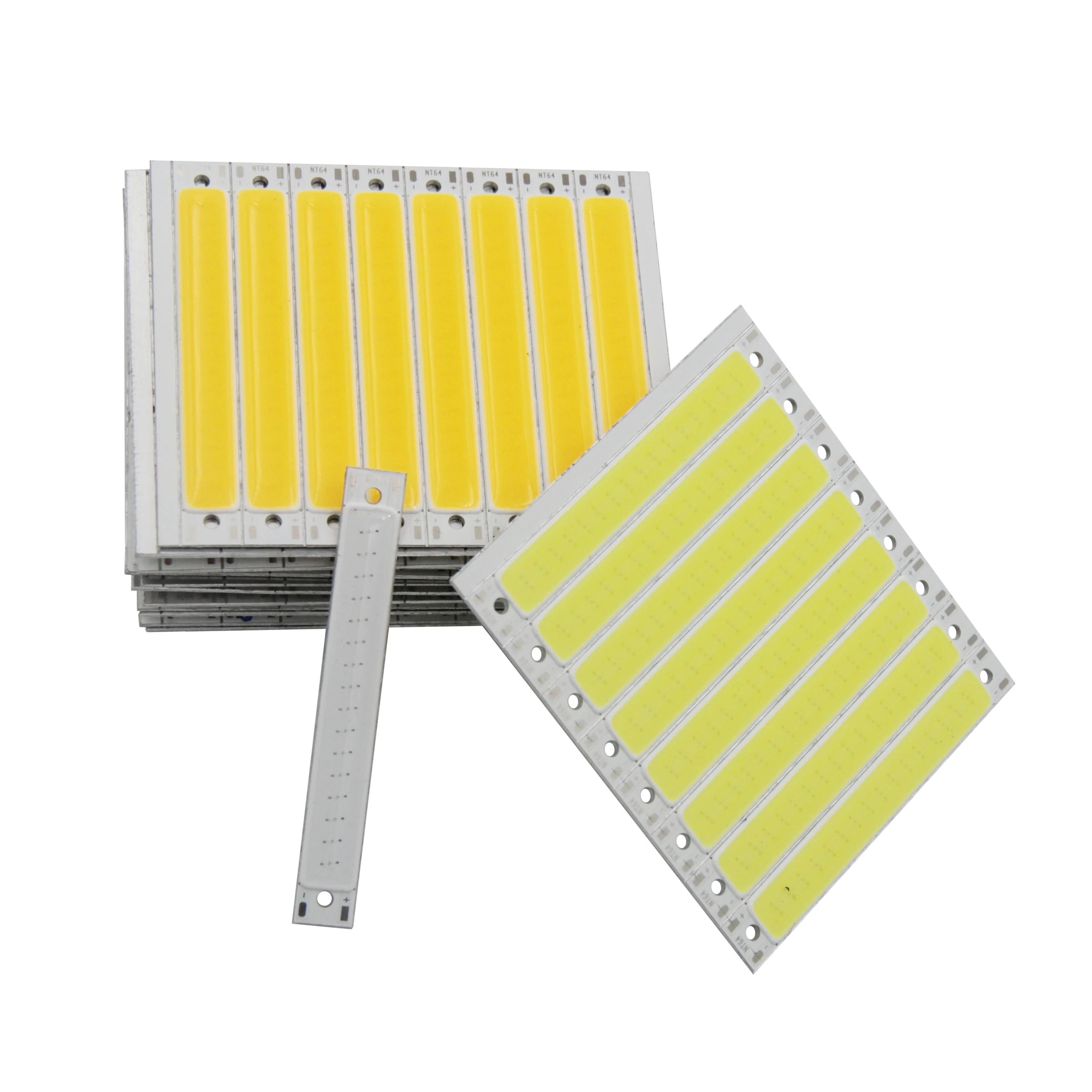

Mr.white Factary store 60*8mm COB LED bar strip light source.
_ Type : Mr.white-6008-1.5W / Mr.white-6008-3W.
_ Product Size : 60*8mm.
_ Light area : 50*7mm.
_ Power : 1.5W / 3W.
_ Forward Voltage(DC) : 3-3.7V(Warm white, Cold white, Blue), 2-2.5V(Red).
_ Max Forward Current : 500mA(1.5W), 1000mA(3W).
_ Emitting color : Cold White(C.W 6200-6800K), Warm white(w.w 2800-3200k), Blue(450-460nm), Red(620-630nm).
_ Luminous Flux :>100lm/w
_ Viewing Angle : 120 degrees
_ OEM/ODM : We are manufacturers. If you have any need, please contact us. We accept customization.
_ Notice:Please add a necessary heatsink when used.

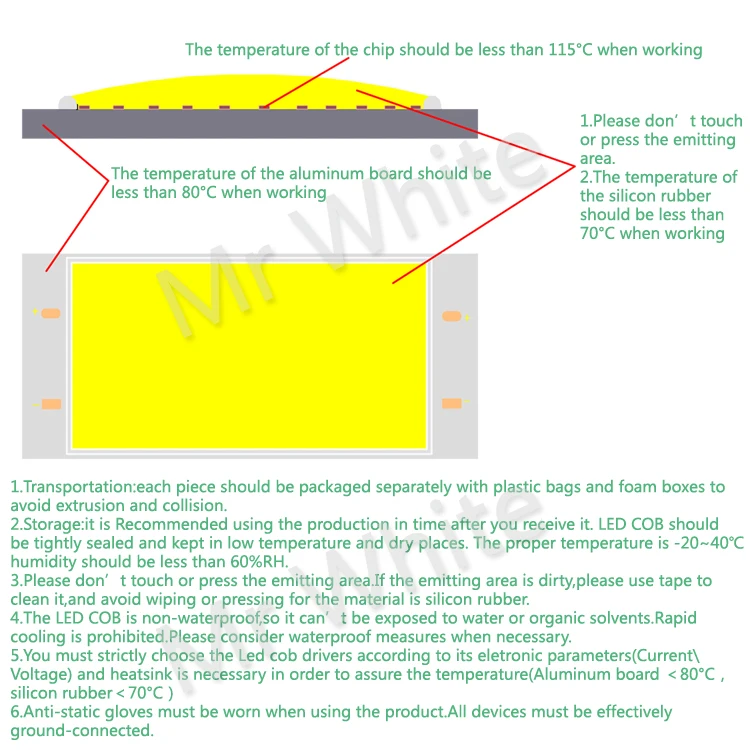

_ Tips: please use this product as required below.
We give priority to safe and concise package. If you have specific requirements, please communicate with our customer service staff when ordering. Thank you for your cooperation.
