Textile sheet insulation structural thickness 6mm textolite buy textolite sheet buy textolite buy in moscow textolite buy retail textolite sheet buy retail buy textolite price textolite buy in moscow retail where to bu

>>>

Rated Voltage 20 kV/mm

Type Insulation Sheet

Tensile Strength 140 MPa

Application High Voltage

is_customized Yes

Origin RU(Origin)

Material E932

Model Number A

Brand name Stamps A or B

Structure Layered

Main material Pp fabric

Binding component Phenolformaldehyde

Manufacturing method Pressing Machine

Heating class And up to 105gr.

Thickness 6mm

Mechanical processing Yea

Led figure Rectangle, Square

Error cut -50/+ 100 micron

Production item Preform

Sides (degree) 90/360

Unit dimension PCs.

Ships From

Russian Federation

Color

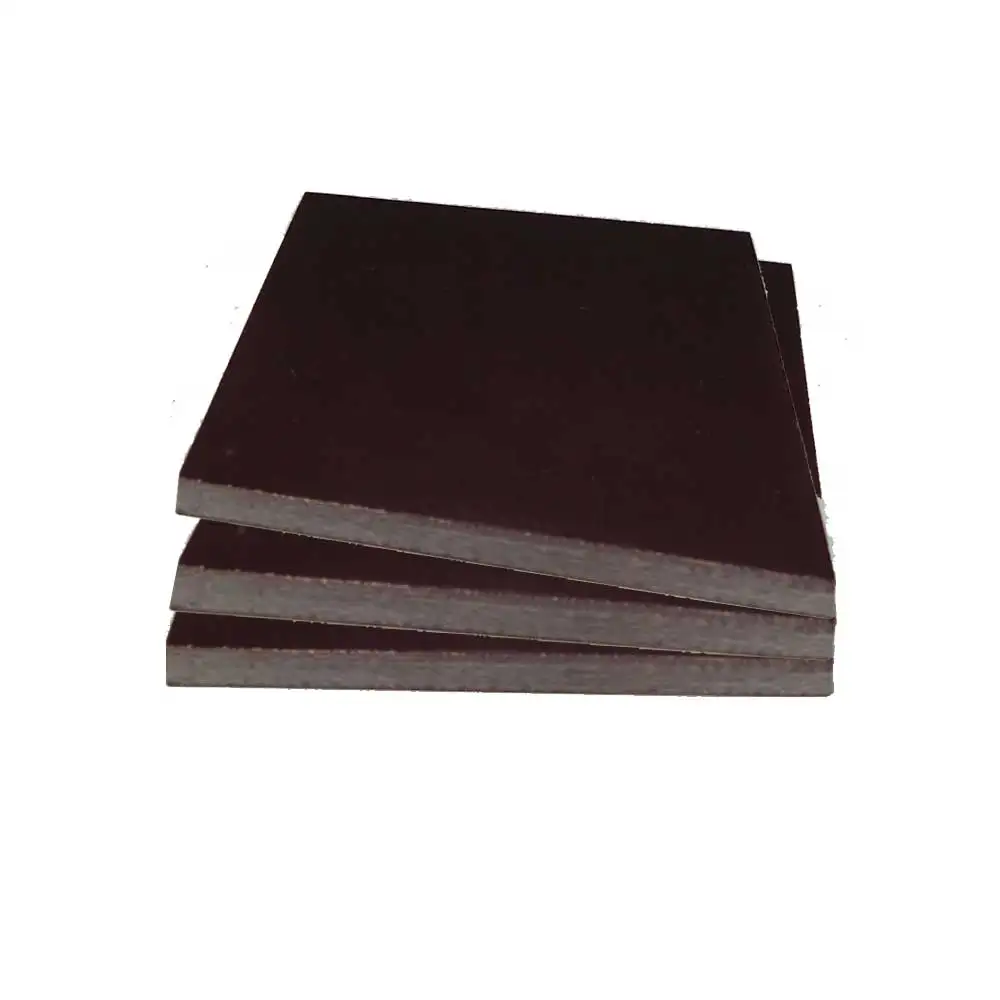

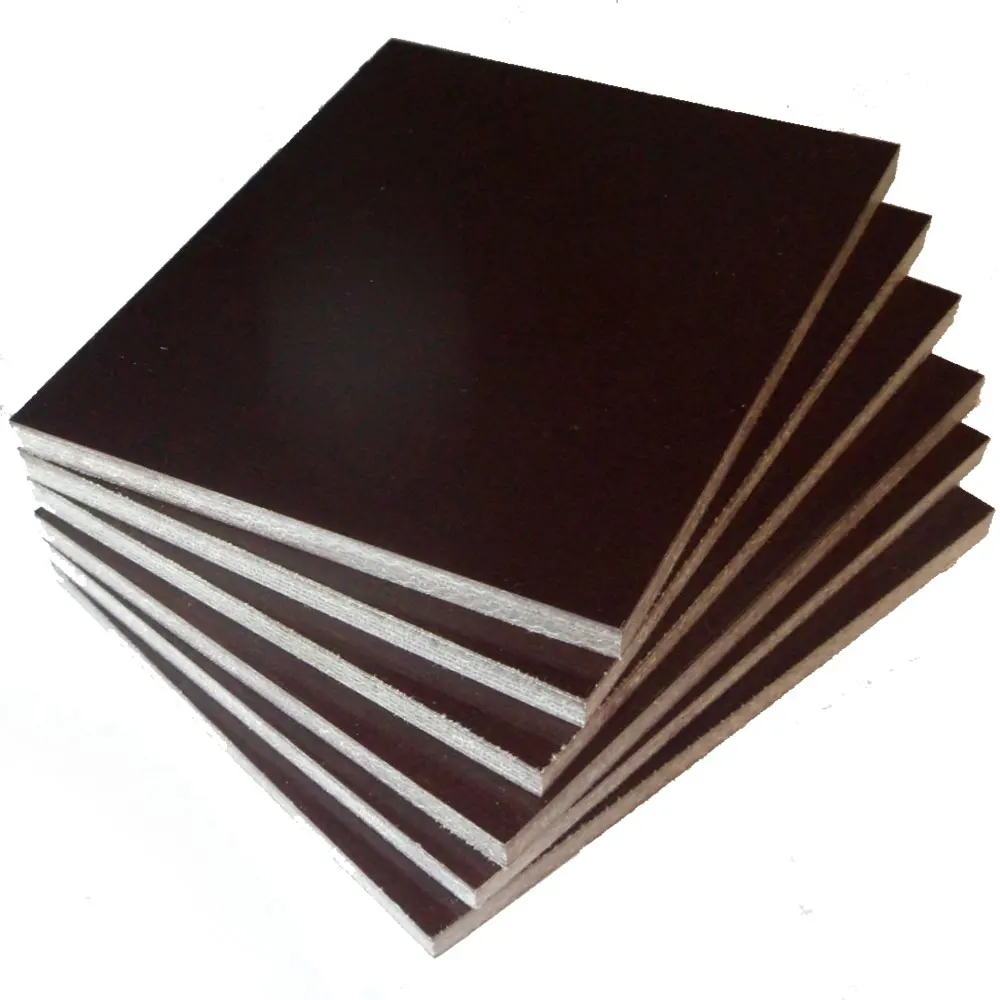

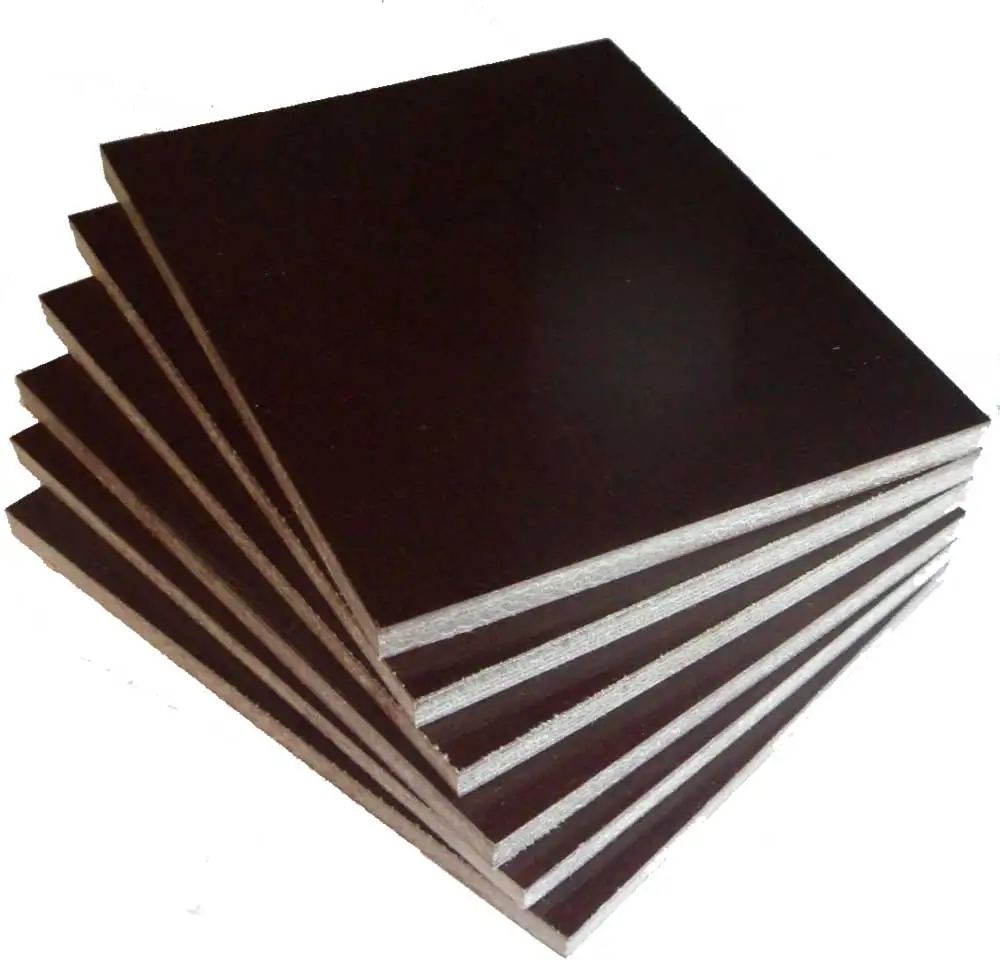

Texting layered material, made by hot method of pressing cotton fabrics. Thanks to the introduction of cotton fabrics, textilitis has a high compression strength. Easily subjected to machining, drilling, milling. Ideal as a structural product, has increased toughness. Successfully applicable for highly loaded familiar electro and mechanical loads. Sliding on friction: Fibres, rings, washers, stops, fists. A beautiful electrical insulation material for inserts and various construction parts.

External surfaces, glossy, the reverse side is matte. There are possible transport scratches that do not affect the operational characteristics of the material.

Permissible operating temperature from-65 ° C to + 105 ° C.

Dimensions: 100x80x6mm. +/- 0,15mm
