Connectors>>>Lights & Lighting
Brand Name RUOXI
Origin CN(Origin)

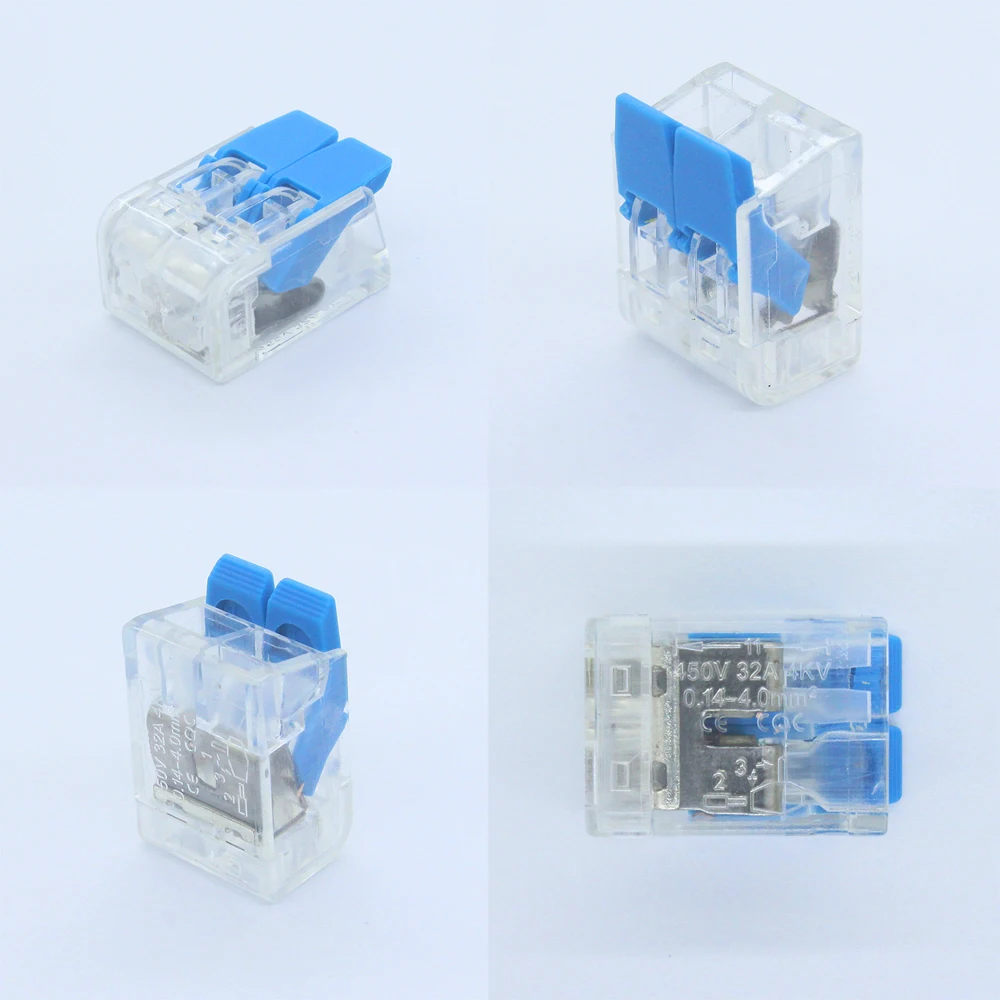

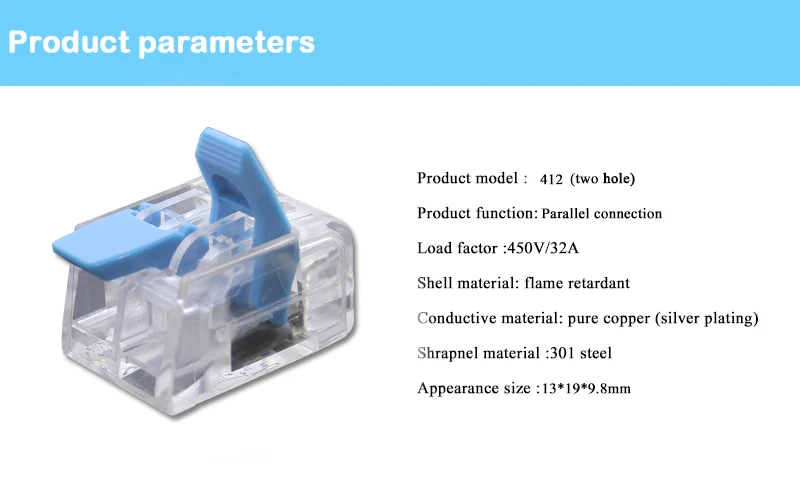

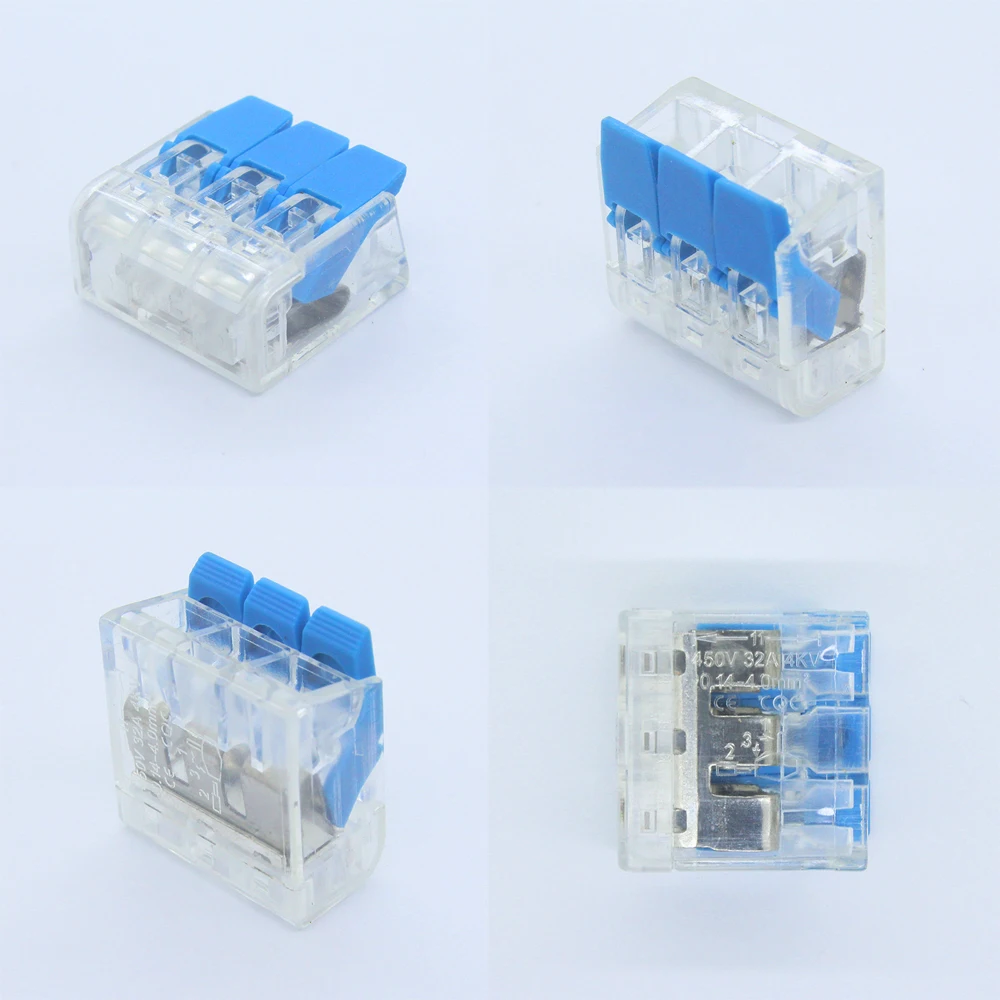

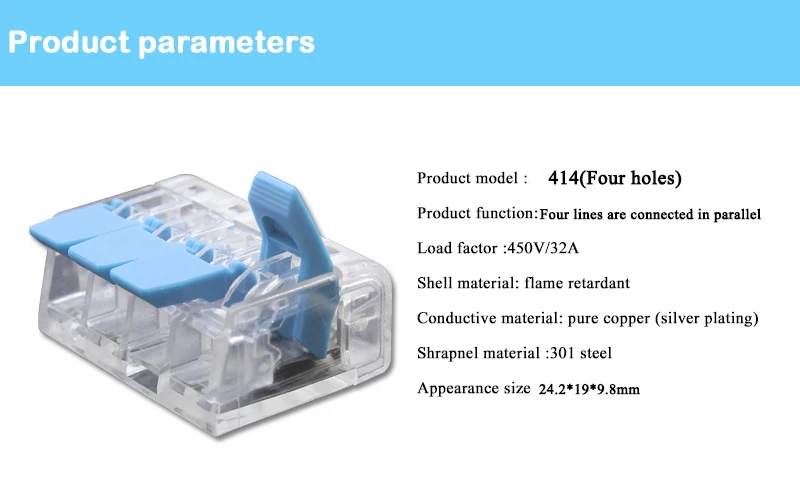

Model Number CH-412 413 414 415
Certification CE

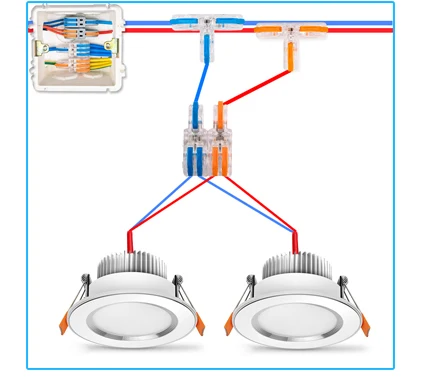

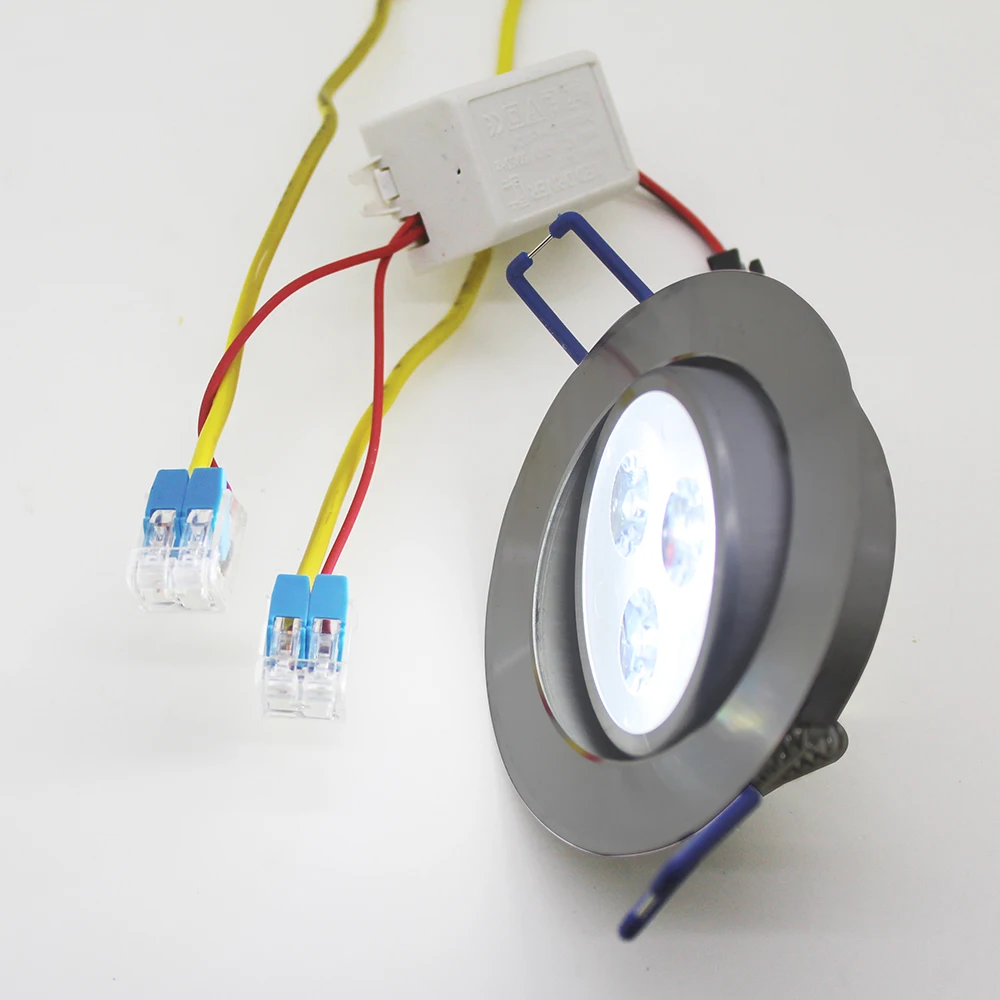

Application Wire connection
In 32A
Model Number CH-412 413 414 415
Section [mm2] 0.2 - 4 mm2 AWG 24-12 Cu
Un 450v
other appcation Quick Disconnect Connectors
Type terminal block

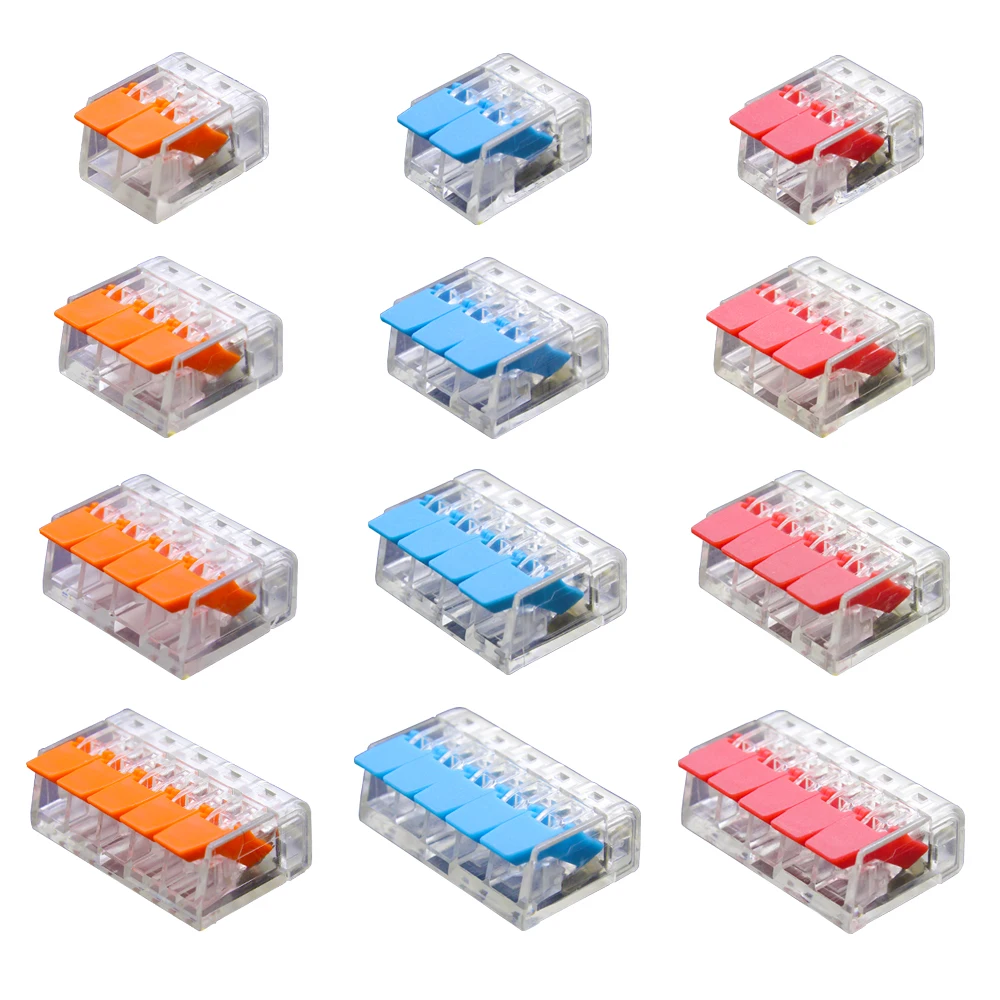

colour Orange blue red rose red
Color
Package
25pcs
50pcs
100pcs

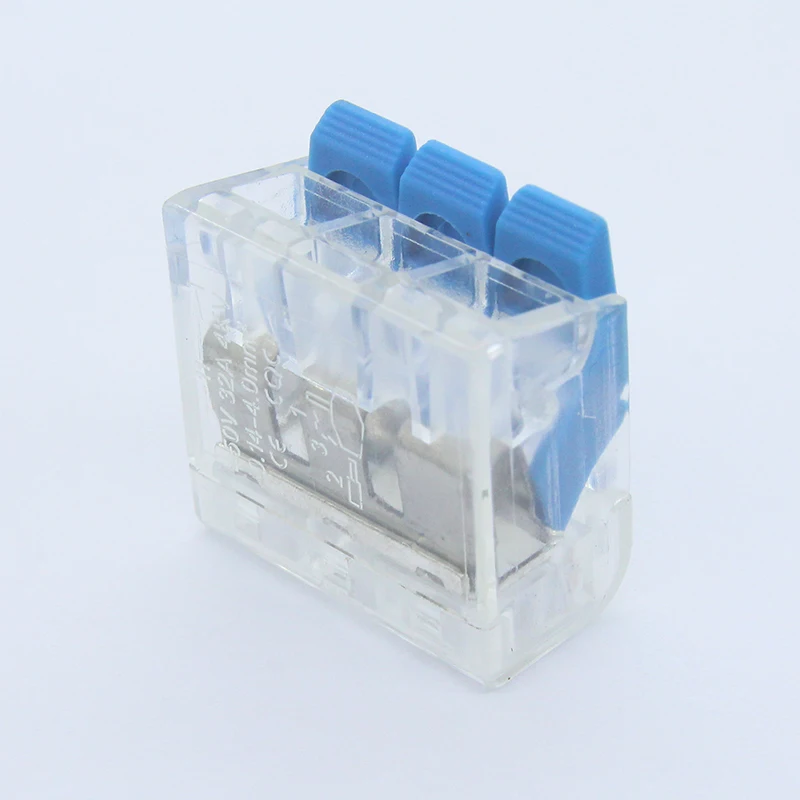

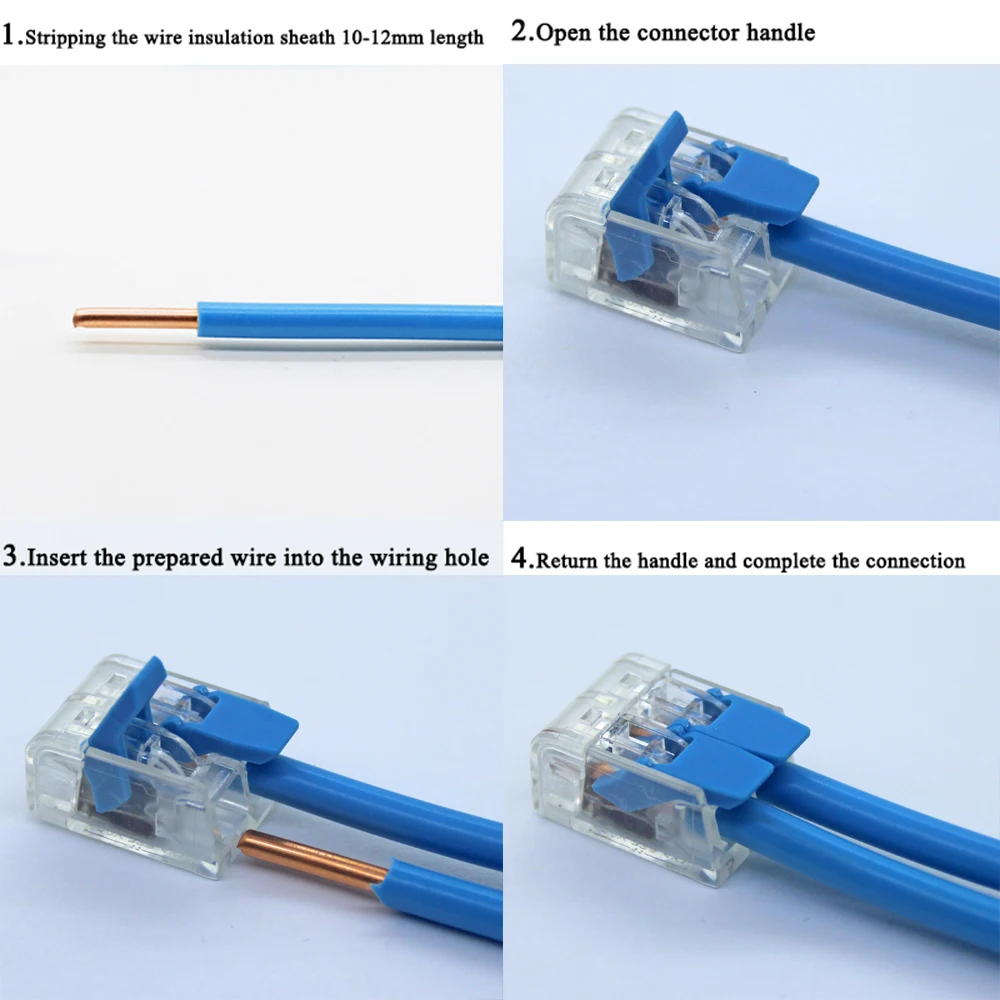

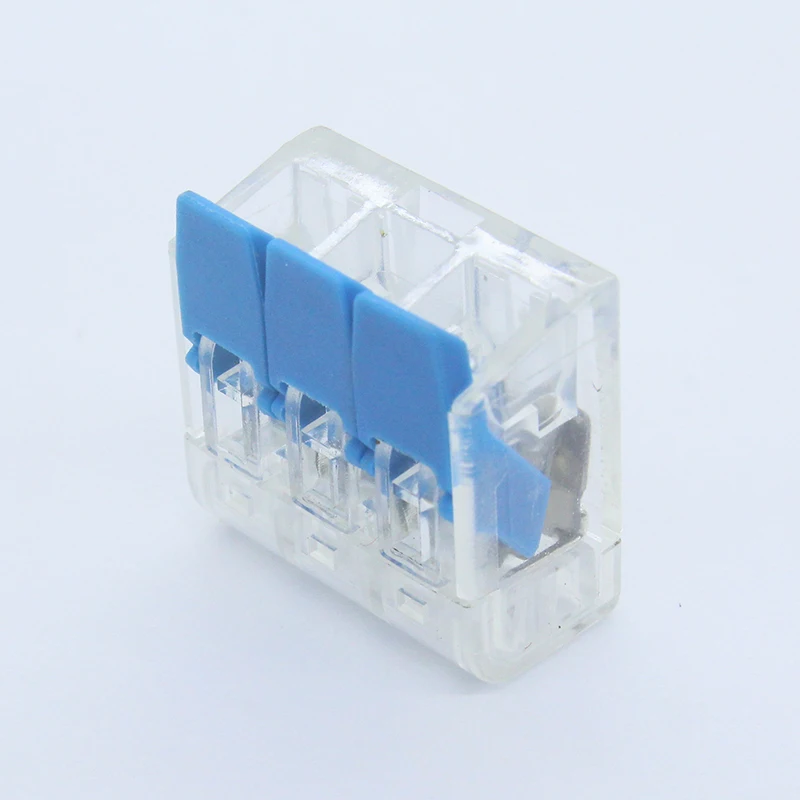

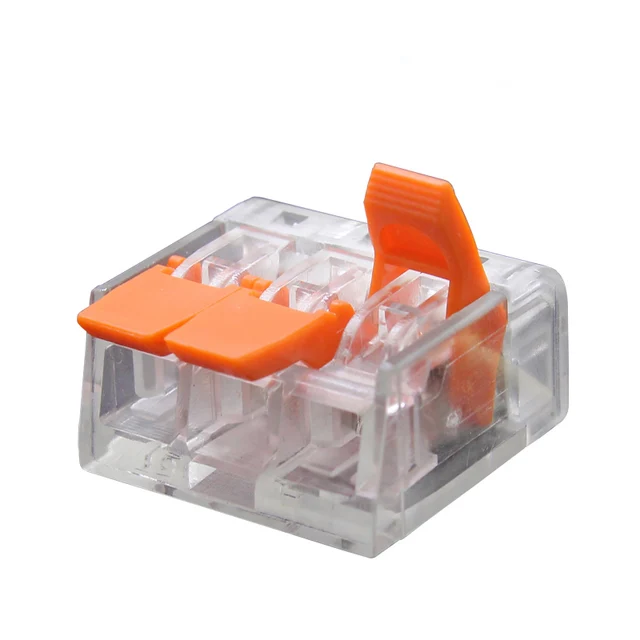

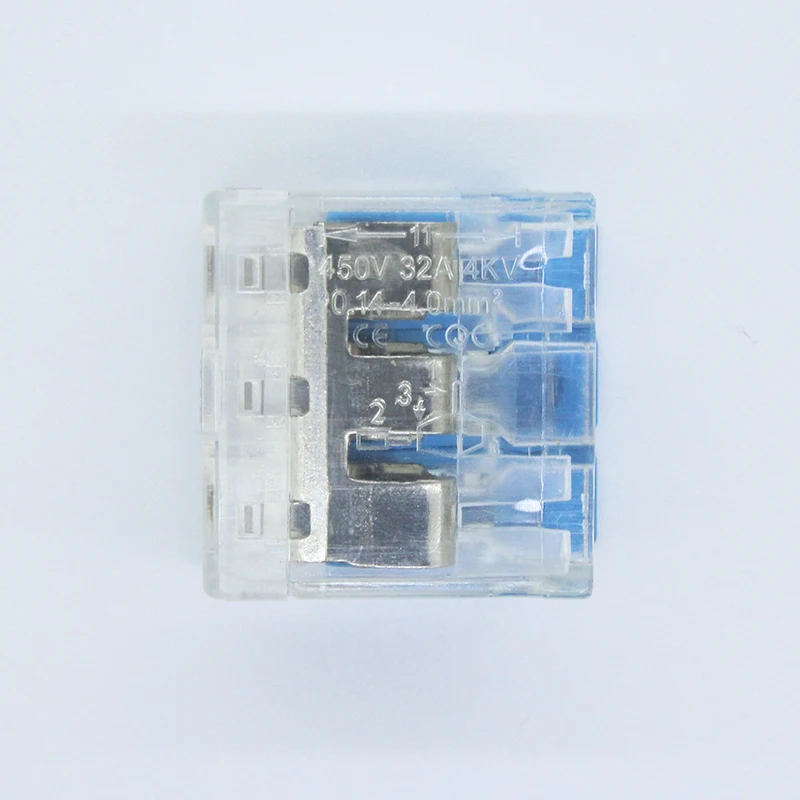

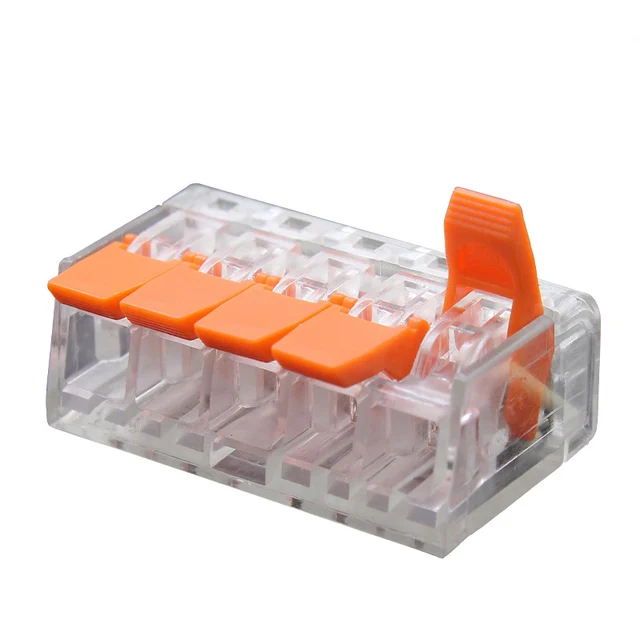

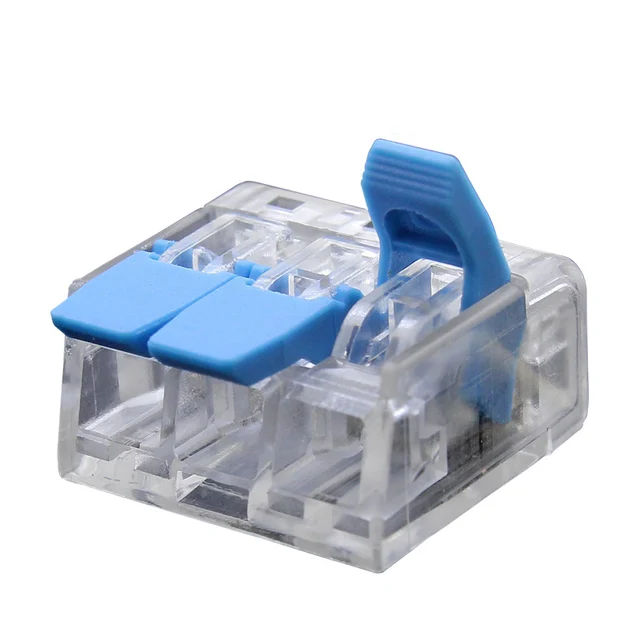

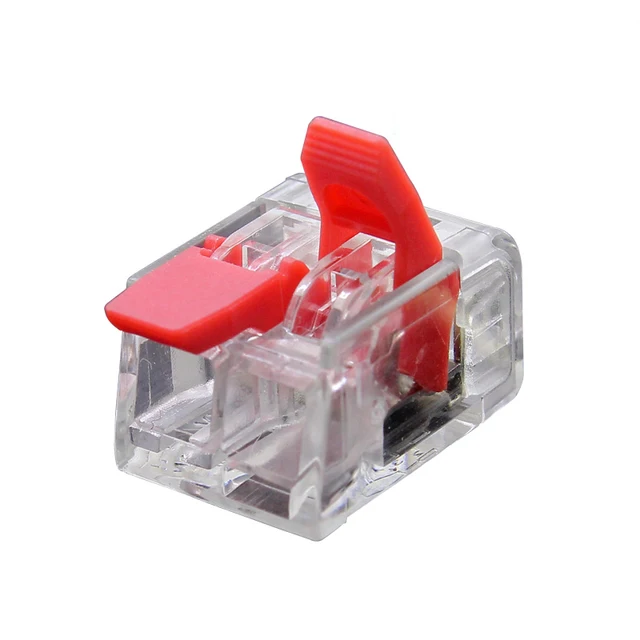

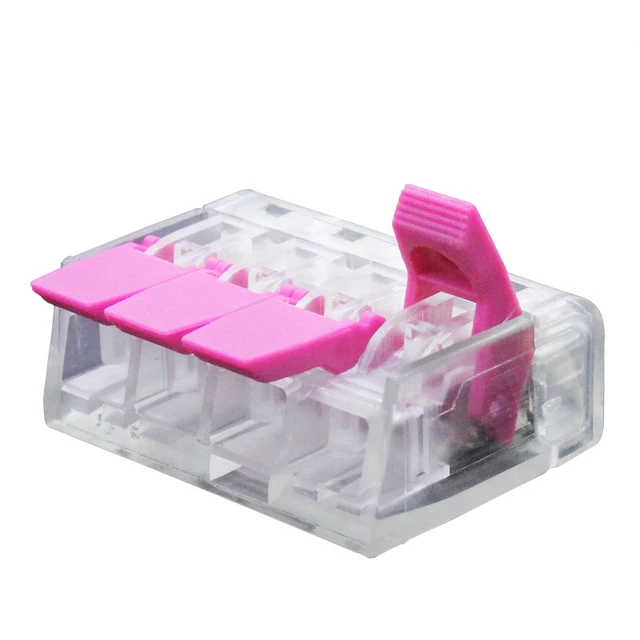

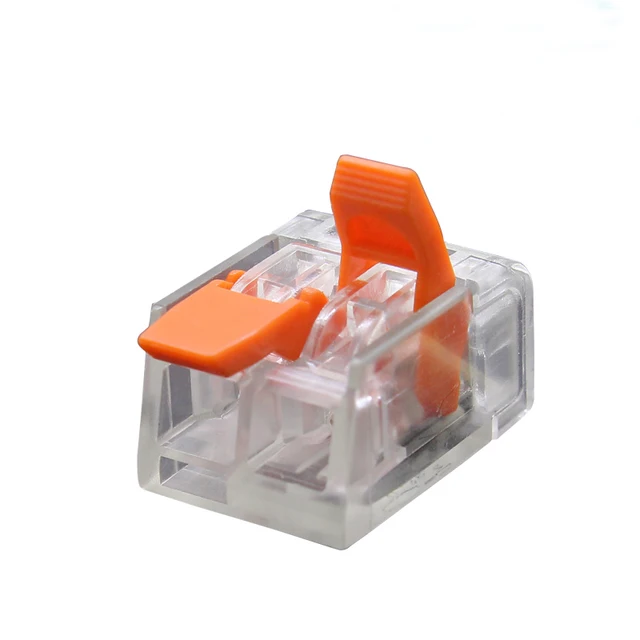

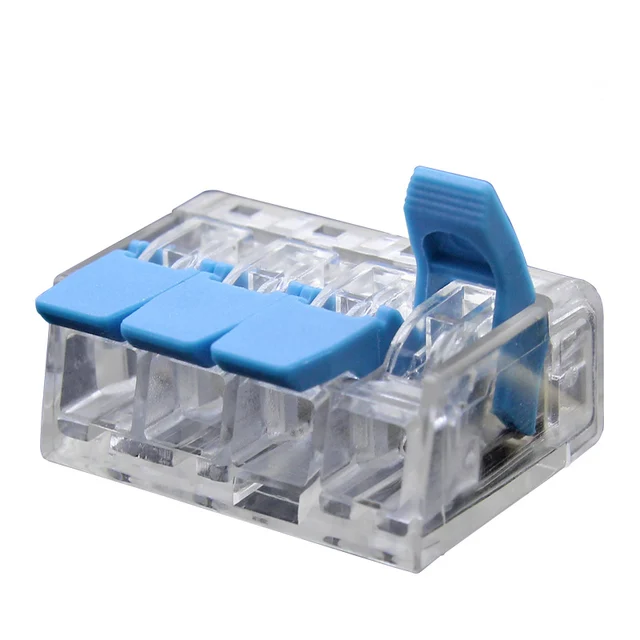

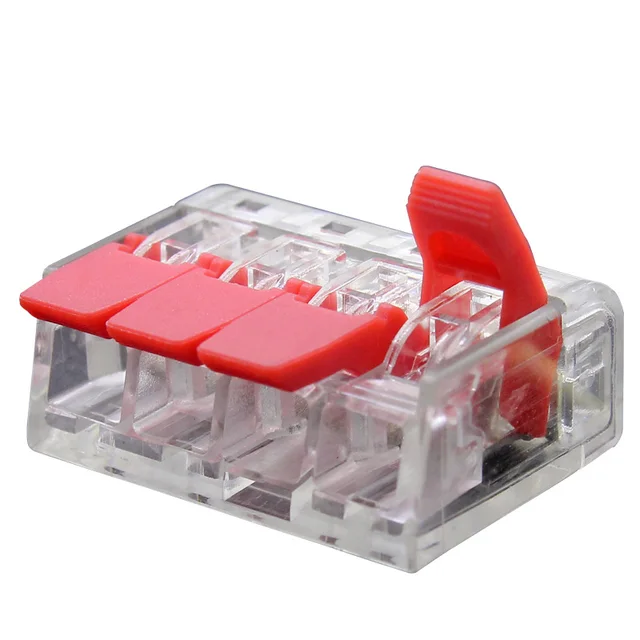

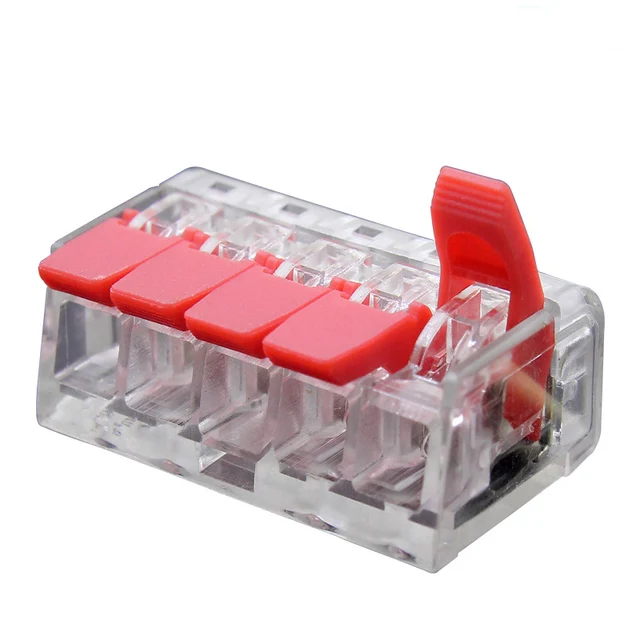

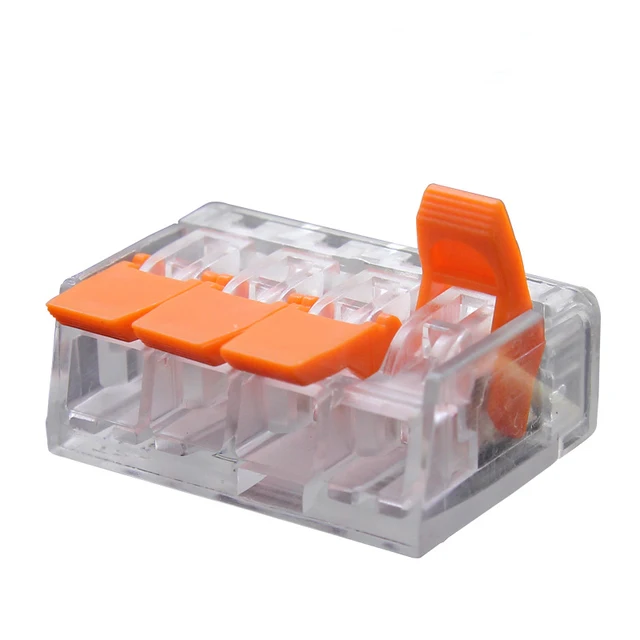

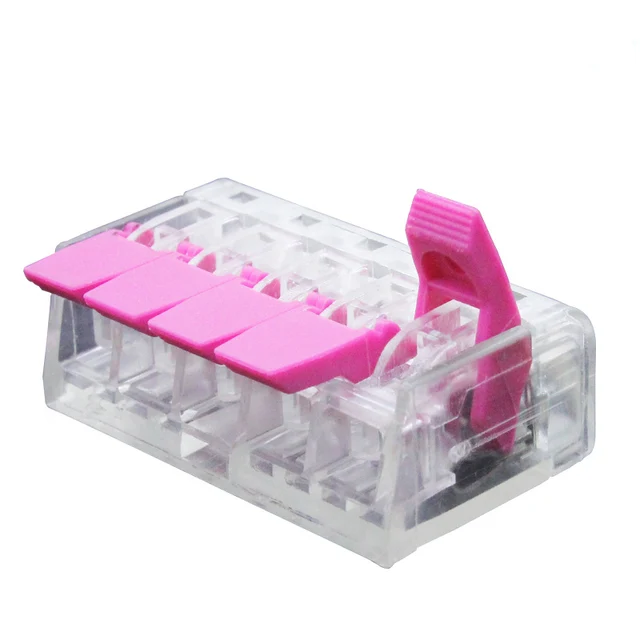

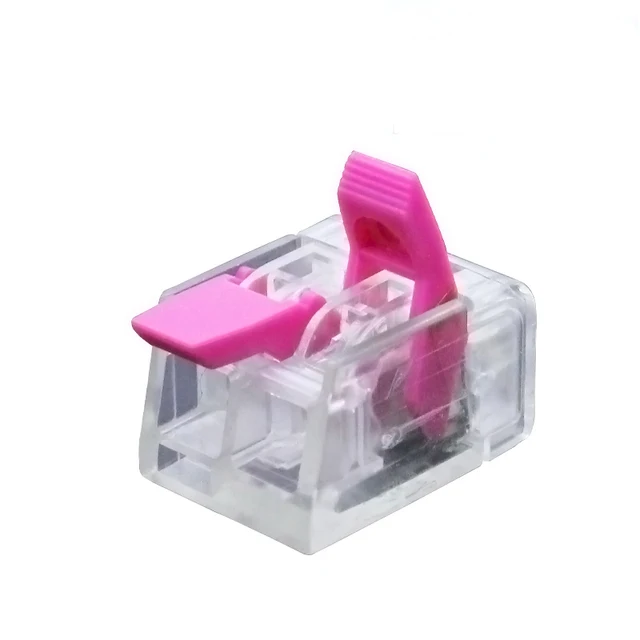

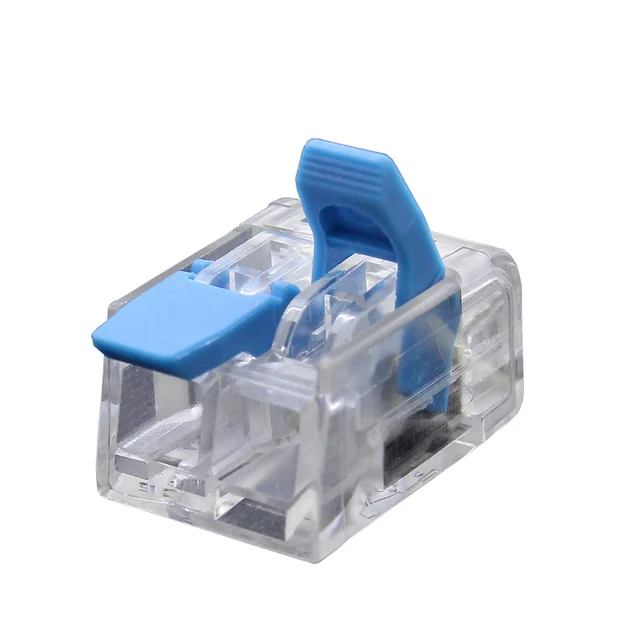

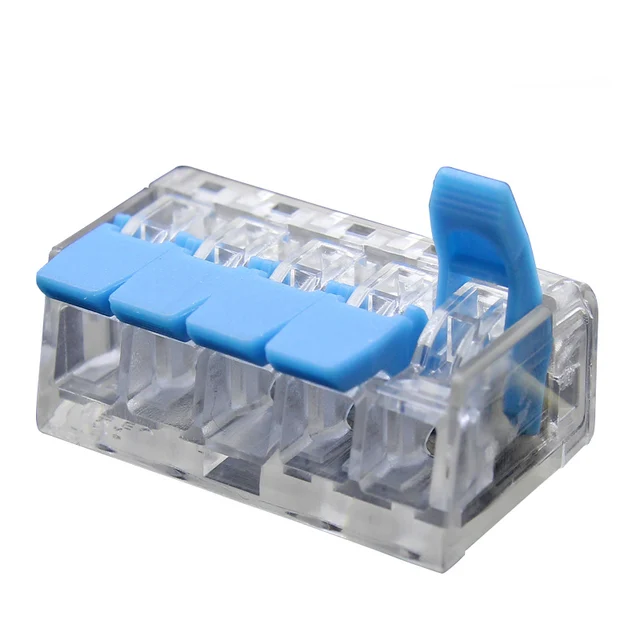

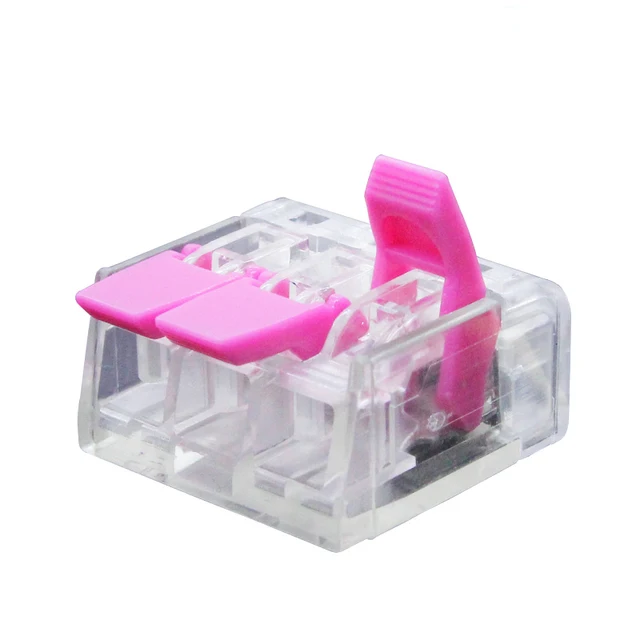

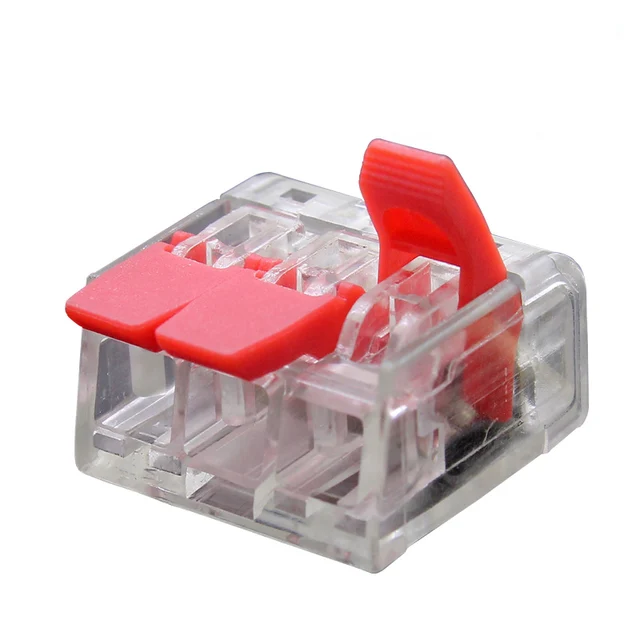

If you are looking for other sizes of this new series, looking for the old series or something else, be sure to also see my other items!The CH series compact connector for all cable types Saves 40% more space than its predecessor !These cable connectors are suitable for fine strand cables from 0.14 to 4 mm2 (24-12 AWG), as well as plain and braided cables from 0.2 to 4 mm2 (24-12 AWG). This wide range allows you to quickly and easily connect different types of cables and allows you to close cables with very different cross sections.-Voltage of up to 450 V-Current up to 32 A-It has easier lifting levers.-Requires a 40% less space on the connectors of the series.-Not only the new connectors are smaller, they also have transparent shells that allow installers to check their work- Integrated probe test holes-It can be used in temperatures up to 221 ° F (105 ° C), ambient up to 140 ° F (60 ° C)Ease of use has priority:The ease of use is improved thanks to the recessed grips on the side of the box, making it easier for the user to hold onto the connector during installation. The contact is based on the testedTechnology, which means that no tools are required to make contacts permanently safe and secure. The technical data clearly printed on the product presents all the important information to the installer at a glance and also indicates the strip length required for the cables, for example, The operating levers also provide more potential marking surfaces.
