LED Displays>>>Electronic Components & Supplies
Brand Name SZLIGHTALL
Origin CN(Origin)
Tube Chip Color Full Color
Model Number P4
Usage Indoor
Display Function VIDEO
Pixels 4mm
brightness 1500
LED Type SMD2121
Module size 256 x 128mm
input voltage DC5V
guarantee period 3 years
Dots 64x32
Support Language
Simplified Chinese
Traditional Chinese
Russian
Hebrew
Spanish
English
Japanese
Korean
Other
P4 SMD2121 256x128 1/16SItem
P4
Chip
Epstar
Chip size
Red 9 mil, Green 12. Blue 12mil
Light type
SMD
Pixel Pitch
4mm
Module Size
256mmX128mm
Module Resolution
64 X 32 (dots)
Density of pixel
40000dots/m2
Pixel configuration
1R1G1B
Red wavelength
625±2nm
Green wavelength
525±2nm
Blue wavelength
470±2nm
Colors
16777216
Best viewing distance
≥4m
viewing angle
120°/90°
Maximum power consumption
20W
Brightness
2000cd/m2
Gray scale
14bits per color
Color temperature
6500k
Control method
Synchronization or Asynchronization
Driving method
1/16 scanning
Frame frequency
60Hz
Refresh frequency
≥600Hz
Working Voltage
DC5V
IP grade
IP54
MTBF
More than 8000hours
Life Span
80,000hours

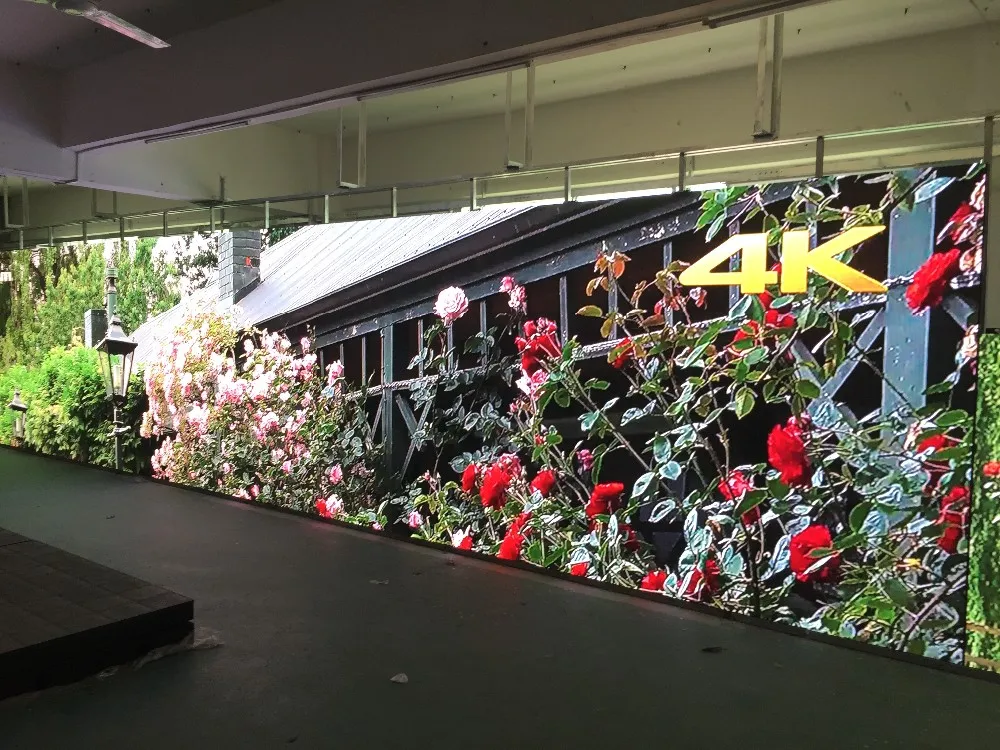

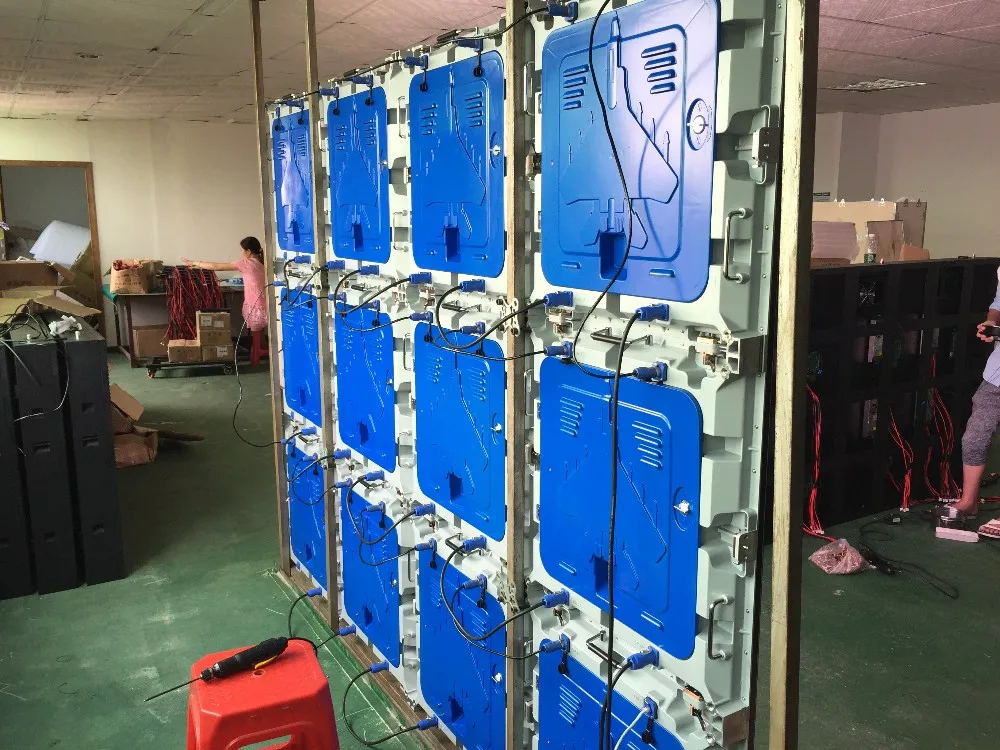

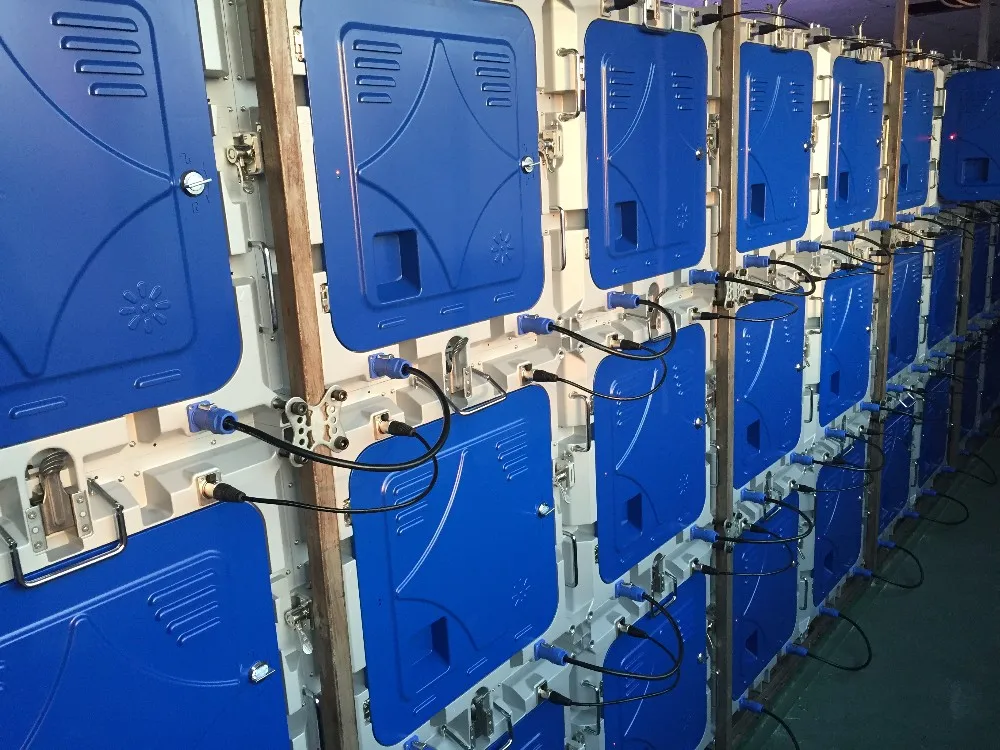

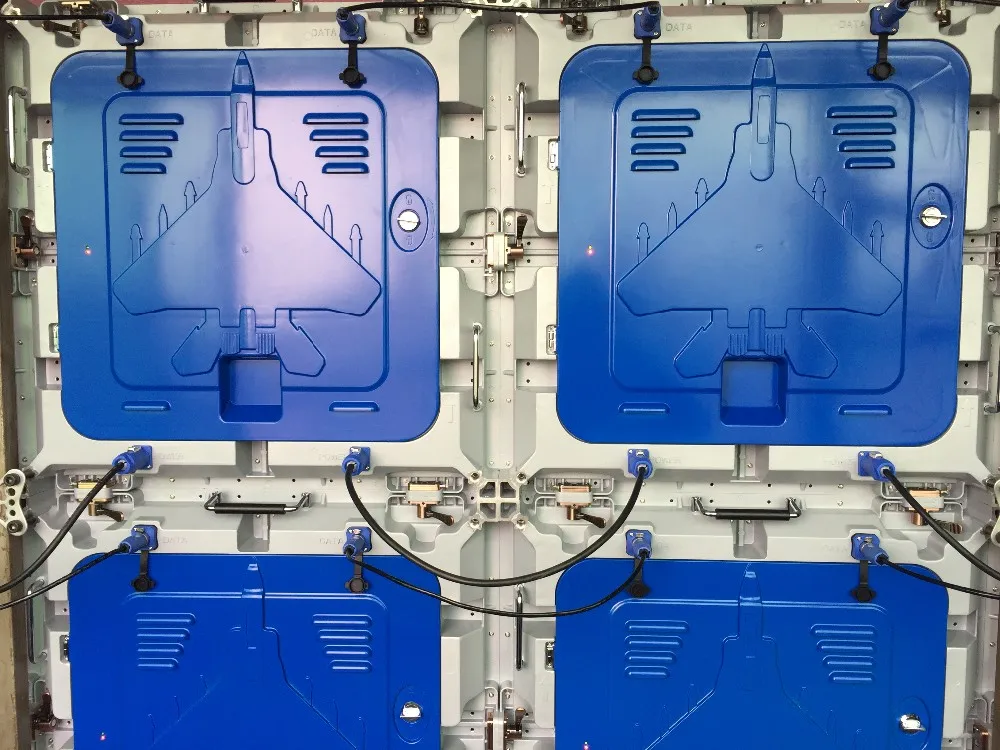

Seamless splicing Quick install
Company Profile1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.
2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.
3. With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.
We also supply Flight Case
if you need pls contact us.
Shipping by Express
1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.
Or by Sea
If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
