Video Intercom>>>Security & Protection
Brand Name MOUNTAINONE
Connection Method Wired
Certification CE
Certification FCC
Certification RoHS
Smart home platform NONE
Origin CN(Origin)
Answering Mode Hands-free
Camera Sensor type CMOS
Display Size 7
Display Screen Type color
Material ABS
Viewing Angle (°) 92
Plug Type EU plug
Plug Type US plug
Plug Type AU Plug
Plug Type UK Plug
Power DC 15V
Model Number SY813
IP Camera Interface No
Zone Input None
Samrt Home Interface Yes
Kit Configuration One to One video doorphone
Installation Wall Mounting
Resolution > 420 TV Line
Doorbell Yes
Access Control None
Sensor Size(Inch) 1/3
Technology DIGITAL
Camera color
Type Intercom System
Power 220v
Connection Type Wired
Waterproof Yes
Resolution 700TVL
Type Video Door Phone
Access Control Indoor Monitor
Ships From
China
United States
Russian Federation
Color

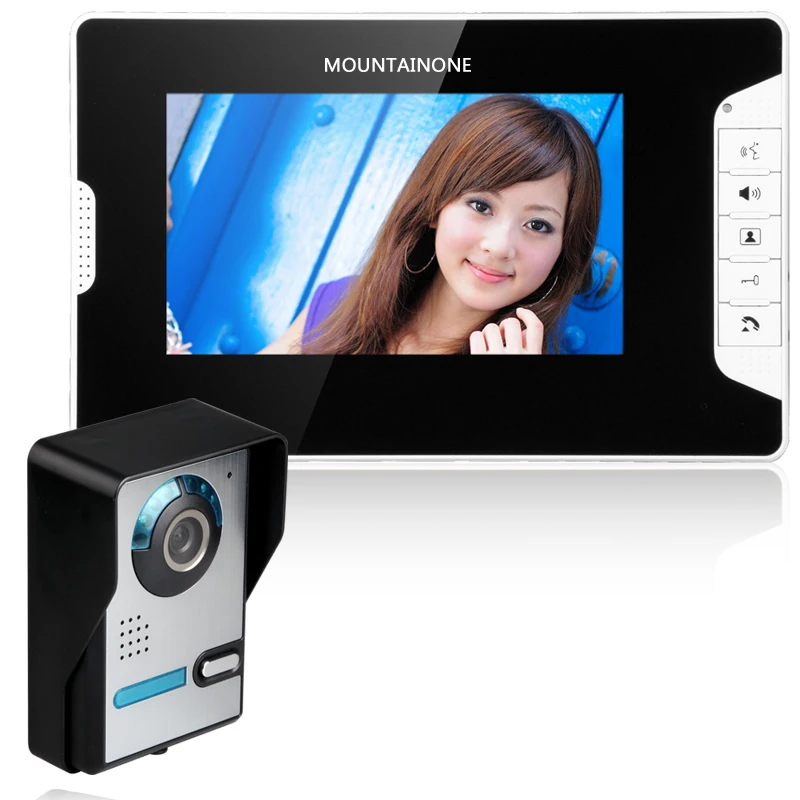

Visual Intercom Doorbell 7'' TFT LCD Wired Video Door Phone System Indoor Monitor 700TVL Outdoor IR Camera Support Unlock
Note: Our indoor monitor or outside unit only can work with our products,thank you!
Features:Little rain and oxidation-proof for the durable7" color TFT LCD without radiation, low power consumption and high definition. IR Camera with Night Vision. Electric lock-control function. Handfree intercom. Mute indoor intercom function. Monitoring the outside of the door. 16 kinds of door bell rings. Volume, brightness and contrast adjustable. Easy installation by yourself with adapter and cable we provide in this kit.

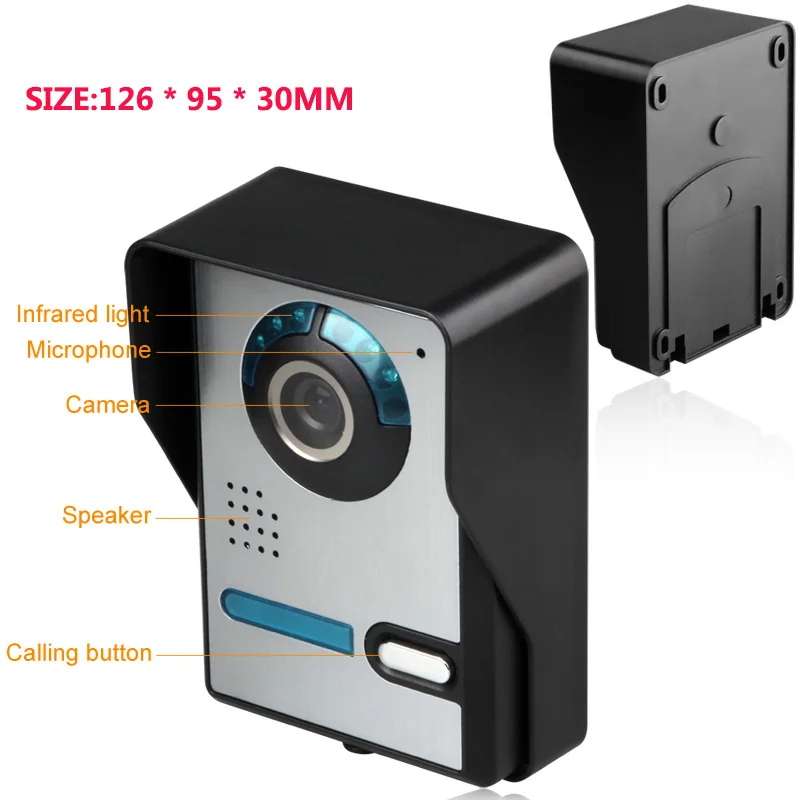

Outdoor Camera
Camera: 1/4" CMOSMin. Illumination: 0.5LuxVideo output: 1Vp-p/75ΩAdapter input: AC100~240V, 50/60HzAdapter output: DC15V/1.2AWires for Lock-camera connection. Working Temperature: -20°C to 50°C Installation: Wall mountedMaterial: ABS plasticDimensions: 12.6 * 9.5 * 3cm

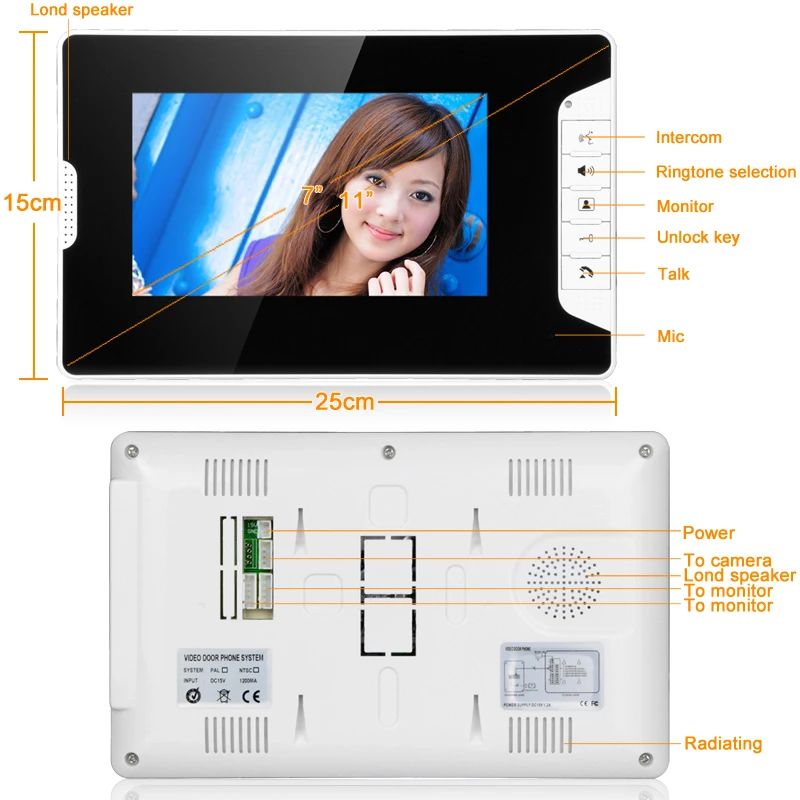

Monitor
Screen: 7" TFT/LCDPower source: AC100V-240V / 50-60HzEffective pixels: 480 * 234 * 30Power: ≤14W(operation), ≤2W(standby)Wiring: 4 wiresDimensions: 24* 15 * 23cmPackage size: 28 * 18 * 10cm

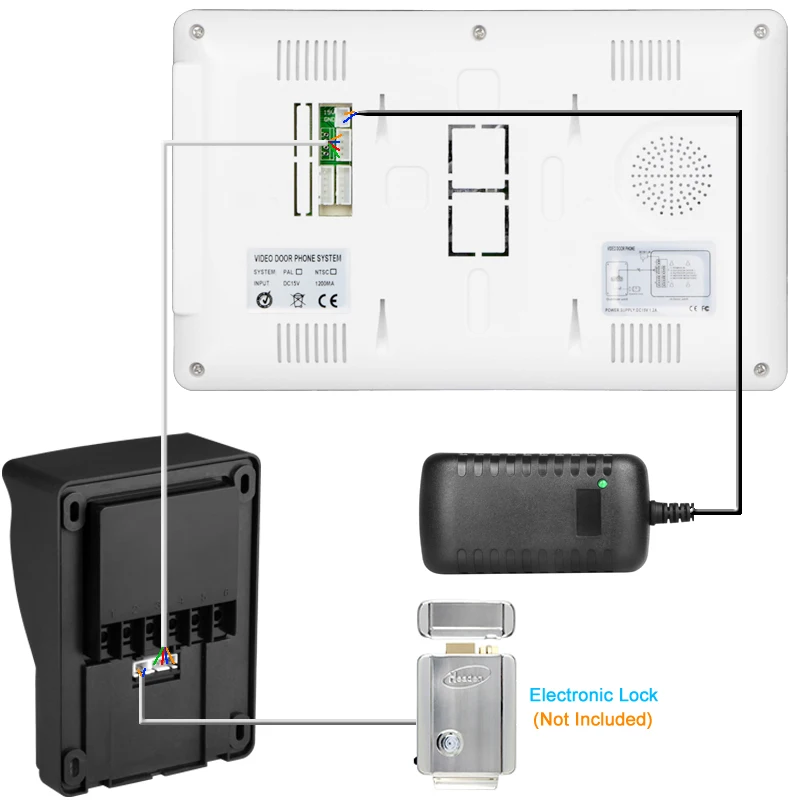

Wire Diagram
The door lock and access control power supply does not include
SY813FA11 Included
1 * Outdoor Unit (Camera) 1 * Indoor Unit (Monitor) 1 * DC15V Adapter 1 * 5m 4-core Connection Cable 1 * 2-core Connection Cable2 * 4-core Connection Cable1 * User Manual 1 * Package of Screws
