Switches>>>Lights & Lighting
Brand Name WenQia
Origin CN(Origin)
Certification CCC
Certification ce
Certification ROHS
Current 10A
Features 433Mhz Remote Control Home Appliances
Material Plastic
Item Type Switches
Warranty ONE YEAR
Is Smart Device NO
Model Number 2201D 433Mhz Remote Control Switch Light Controller DIY
Switch Type Remote Control
Remote Distance Open space is more than 50 meters
Working Voltage AC 90V-250V
Max Current 10Amp
Receiving Sensitivity 97dbm
Modulation Mod ASK
Matching Mode Intelligent Learning code 1527
Working temperature -30 ~ +80
Shell Yes
Application Light ,LED,Bulb,Lamp,Security access control system
Receiving range Open space is more than 50 meters
Application 1 Led Light Lamp Switch, Home Security Alarm System Home Appliances
Application 2 Taking Care for the elderly, children
Application 3 Light, Fan, Door, LED, Lamps, Security Alarm System and so on
Application location Family, Farm, Factory, Office, Supermarkets and so on
Color
Ships From
China
SPAIN
Russian Federation
France

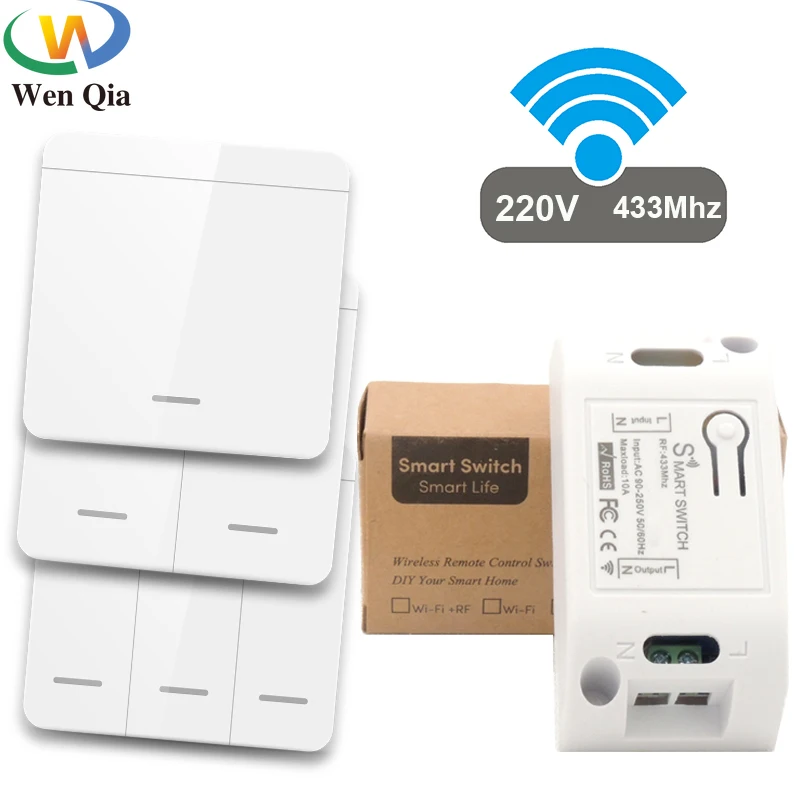

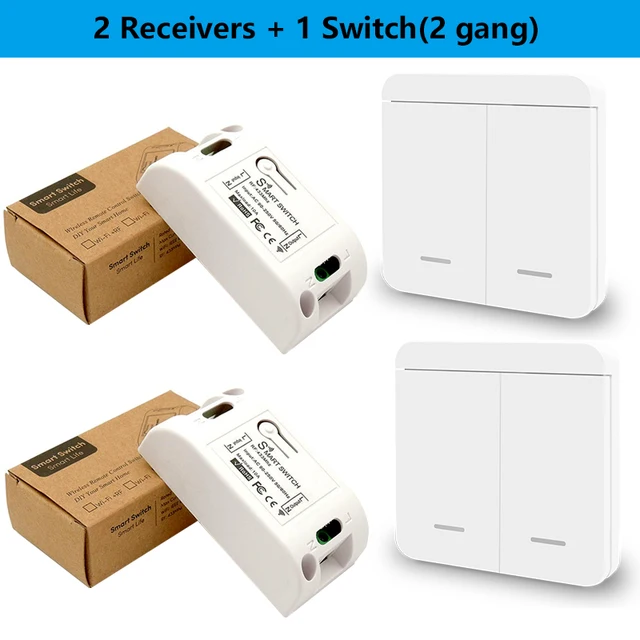

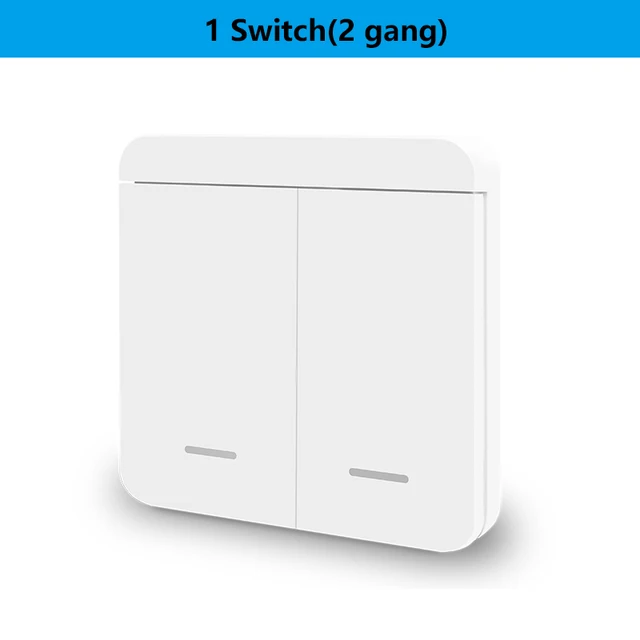

433Mhz Smart Light Switch LED Light Push Button Universal Wireless Remote Control AC90~250V 10Amp 1CH Relay interruptor for Lamp There are various combinations in the options, which are convenient to use, please purchase according to actual needs.Product list
Simple to use How to connect

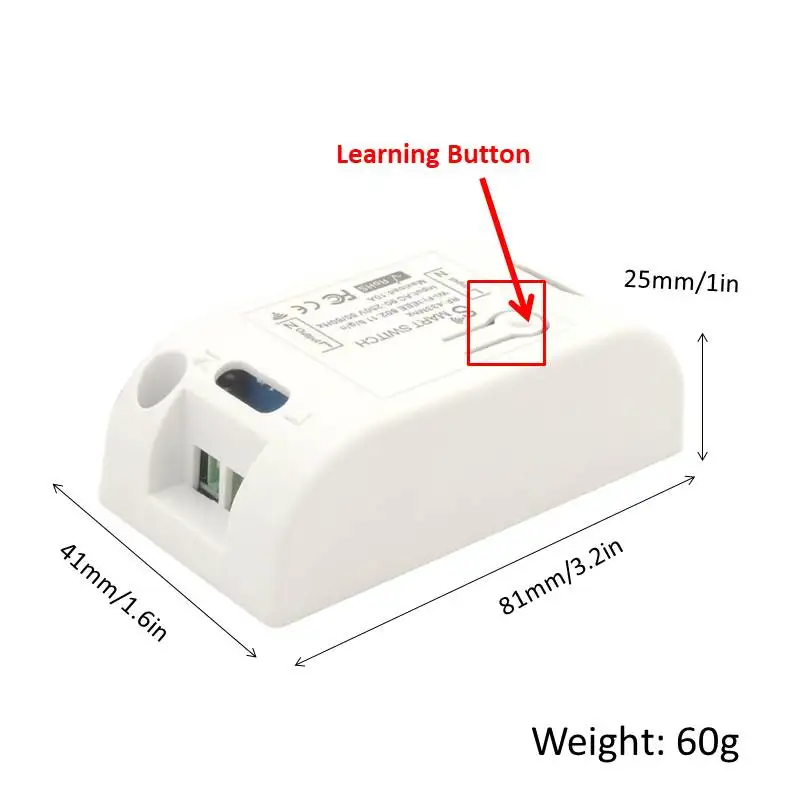

How to get the signal Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds; Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.How to clear the signal Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;
Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission Remote control humidifiers, microwaves, coffee machines Remote control Taking Care for the elderly, children Features: 1:Multi switches Control One/Multi Lights Receiver in the meanwhile

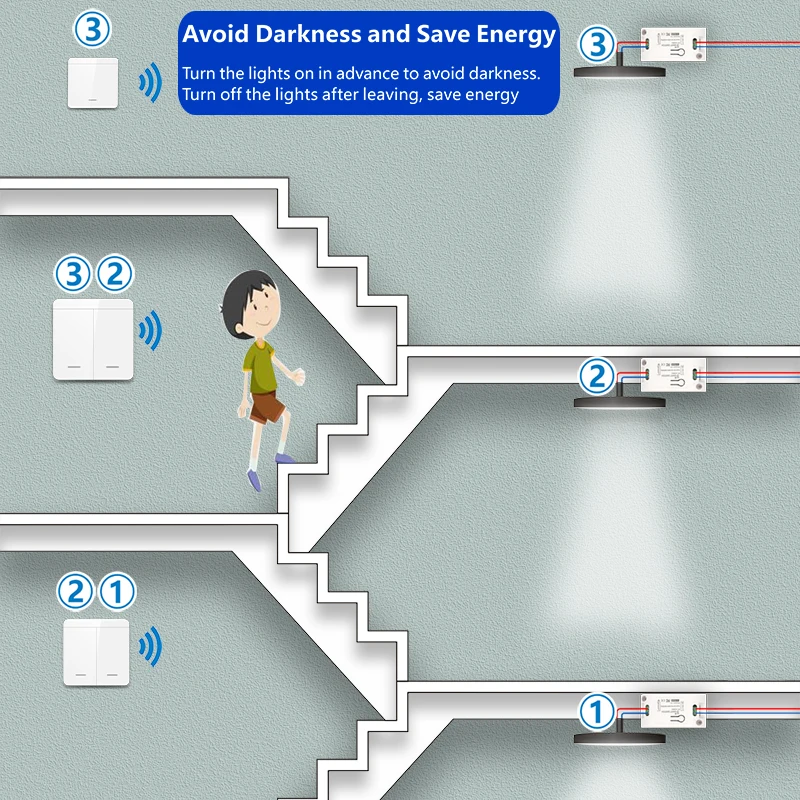

2:Avoid Darkness and Save Energy --Set the remote control at different locations to quickly turn on or off the lights.--Turn the lights on in advance to avoid darkness, Turn off the lights after leaving, save energy.

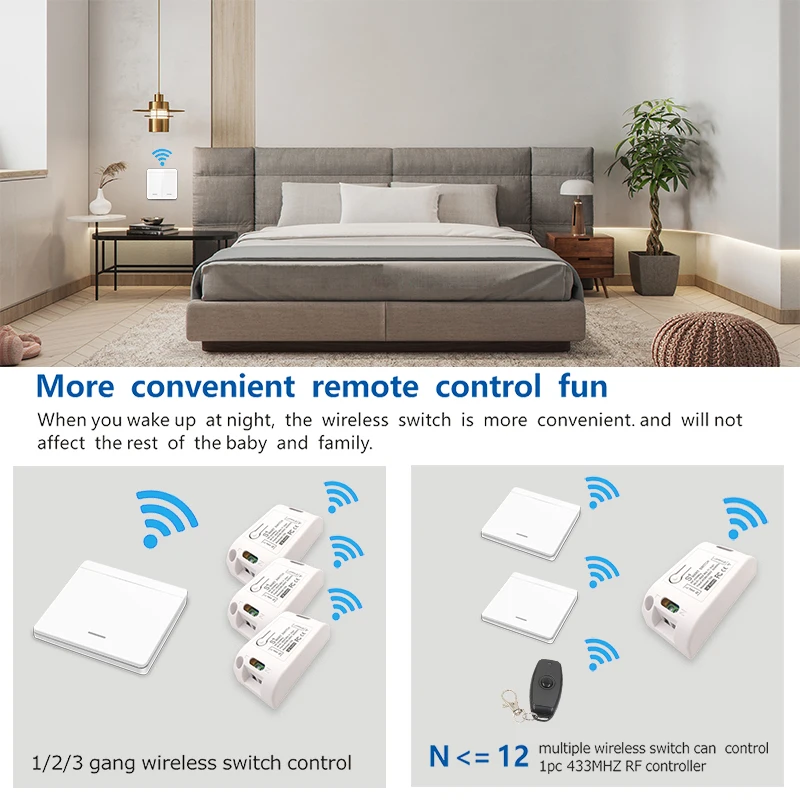

3:More convenient remote control -- When you wake up at anytime, the wall panel switch is more convenient.and it will not distrube babies and other family members.
4:Multiple control methods
Relay Receiver Board Parameter
Product Type: Single Channel Remote Control SwitchEncoding Type: Intelligent Learning Code 1527RF Working Mode: Superheterodyne ReceptionModulation Mode:ASKRF Frequency: 433MHzWorking Mode:Momentary, Toggle and LatchedInput Voltage: AC 90V~250V Max current: 10 AmpQuiescent Current: 5mA Receiving Sensitivity: >97dbm Remote Control Range: >50m (Free Space)Wired Connection Way: Fixed Wiring PillarOutput Terminal: L /NL : Living lineN : Neutral lineColor: White (Outside Shell)
--RF frequency : 433MHz --Support encoding : 1527 Leaning code --Transmitting range : Open space is more than 50 meters --Battery : NO Battery include --Panel fluorescence : Yes

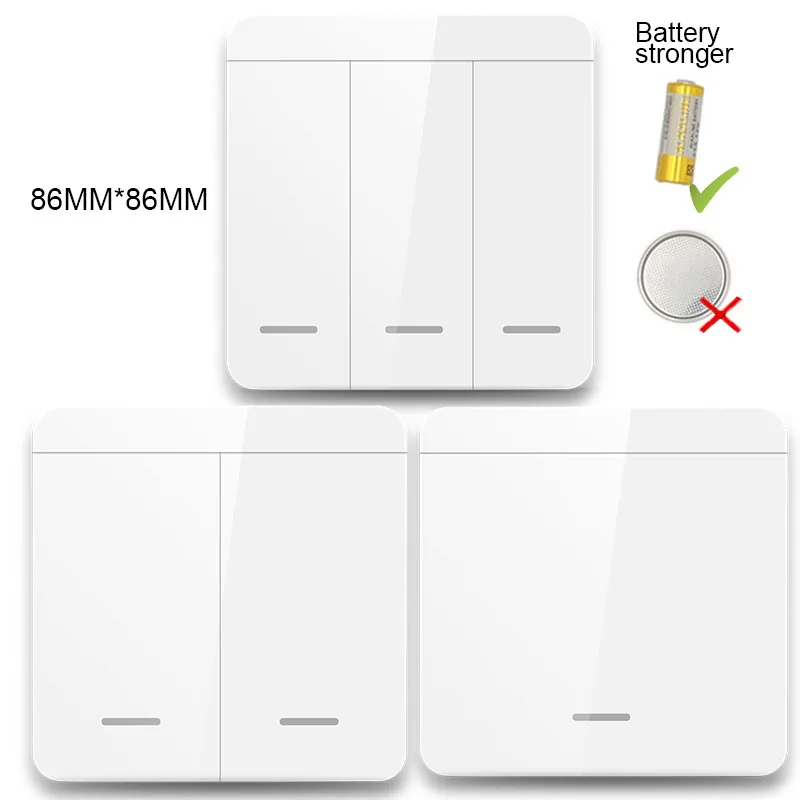

Remote controller Transmitter Parameter
--RF frequency : 433MHz --Support encoding : 1527 Leaning code --Transmitting range : Open space is more than 50 meters --Battery : 2pcs * CR2016 or 1pcs * CR2032 ( include )
High quality
Relay Reciever ( include shell )
On this product detailed page, there is a demonstration video for your reference. *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
