Batteries>>>Consumer Electronics
Brand Name Heltec Automation
Certification CE
Accessory Type Battery Accessories
Origin CN(Origin)
Model Number BMS 4S 10A 20A 25A 3
Current
4S 10A 3.7V
4S 20A 3.7V
4S 25A 3.2V

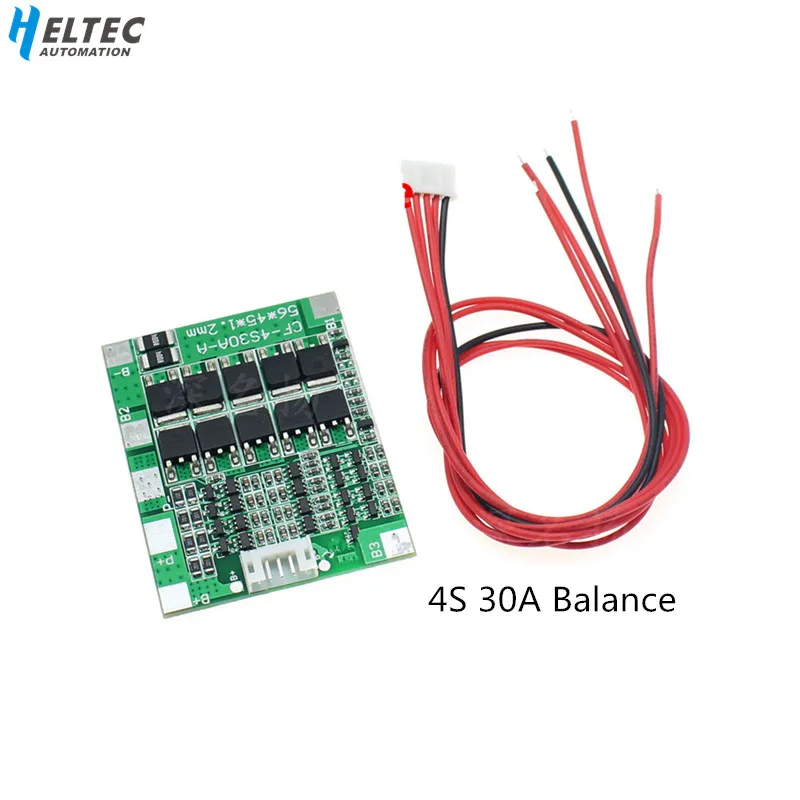

4S 30A Balance 3.7V
4S 30A Balance 3.2V
4S 40A Balance 3.7V
4S 35A Balance 3.2V
4S 50A Balance 3.7V
4S 50A Balance 3.2V
4S 100A Balance 3.2V

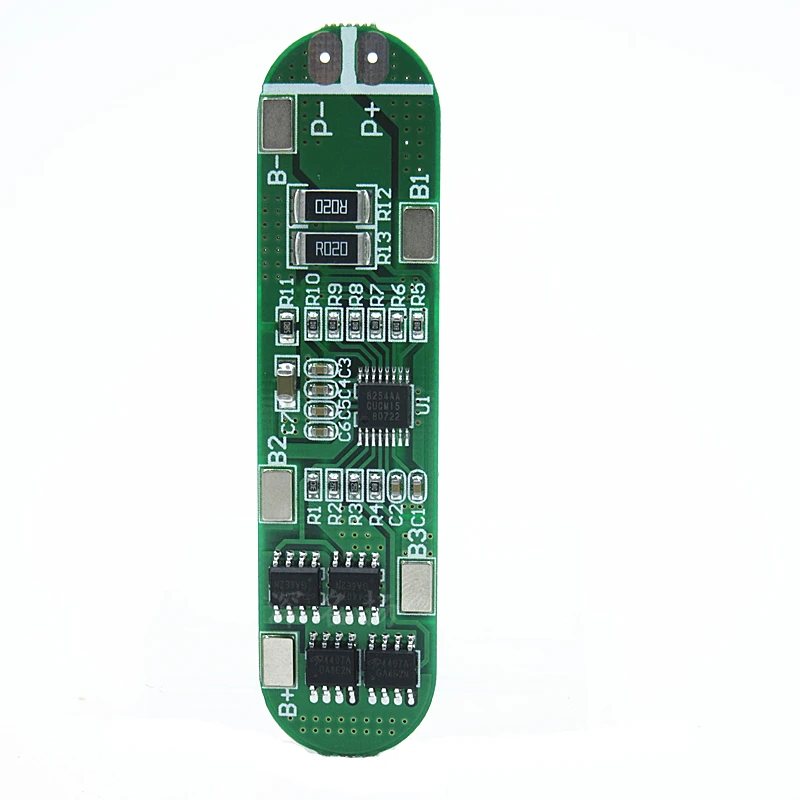

4S 10A
Fetures: Overcharge voltage range: 4.25-4.35v±0.05vSize: 72*17*3.0mmOver discharge voltage range: 2.3-3.0v±0.05vWorking current: 5-6AWorking temperature:-40---+50°CLarge Instantaneous Current: 10AStorage Condition: -40-- +80°CStatic current: less than 30uAeffective life: more than 50000 hoursInternal resistance: Less than 100mΩShort circuit protection: Protectable, need charge recovery The protection board size and device description; The protection board size is 72*17*3.0mm;the components are Seiko S-8254AA protection chip and the genuine WAN4 AO4407*4;
4S 20A

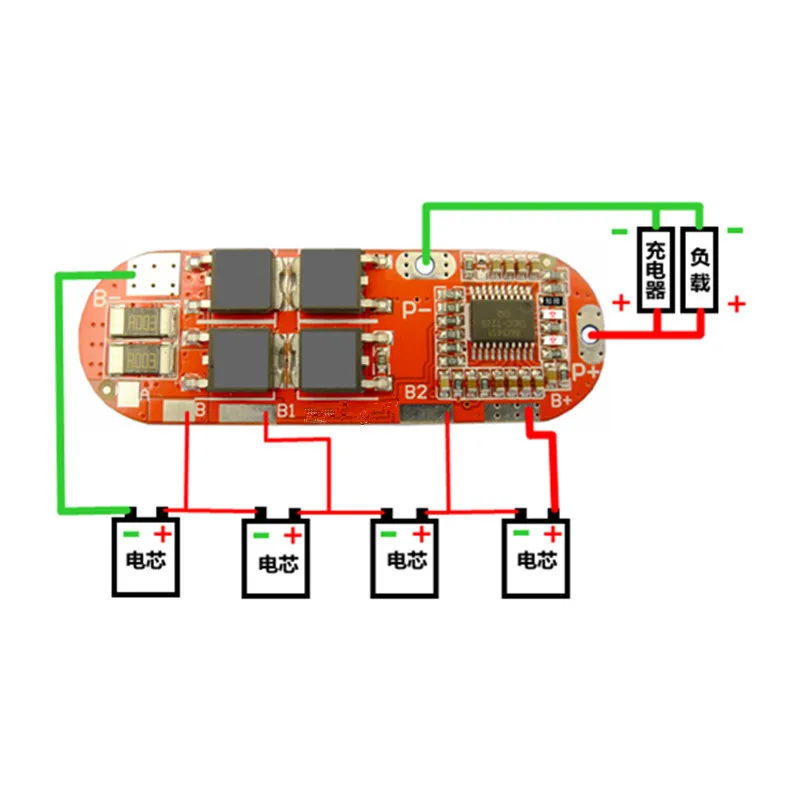

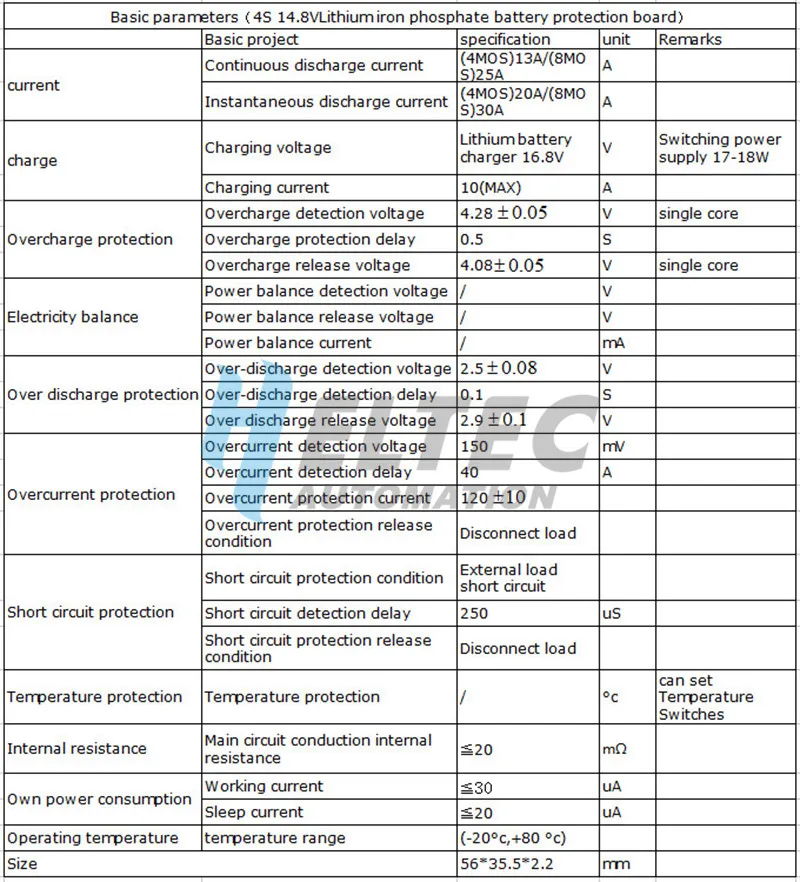

4S 25A

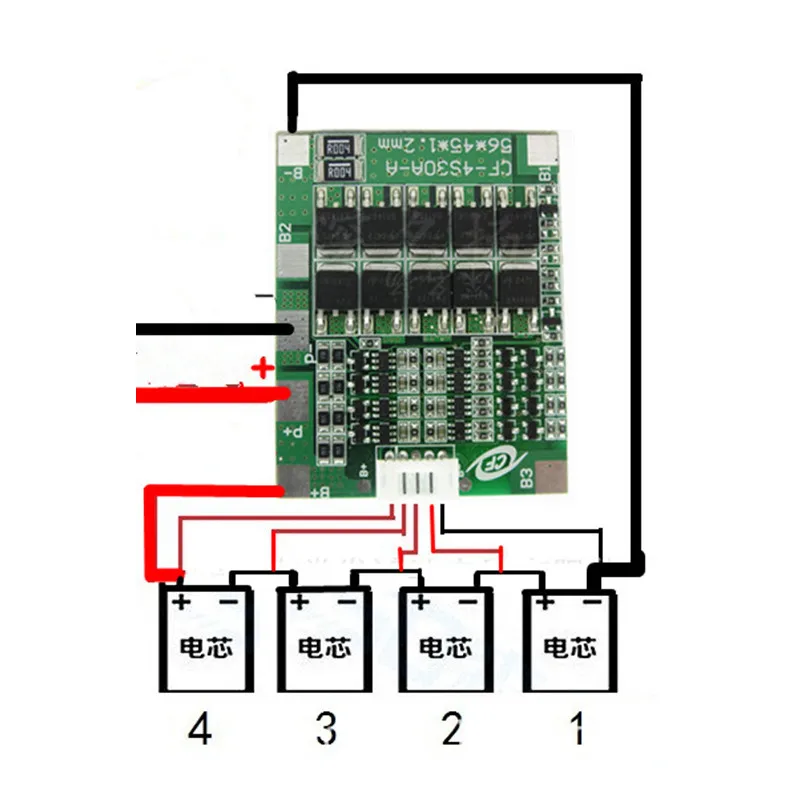

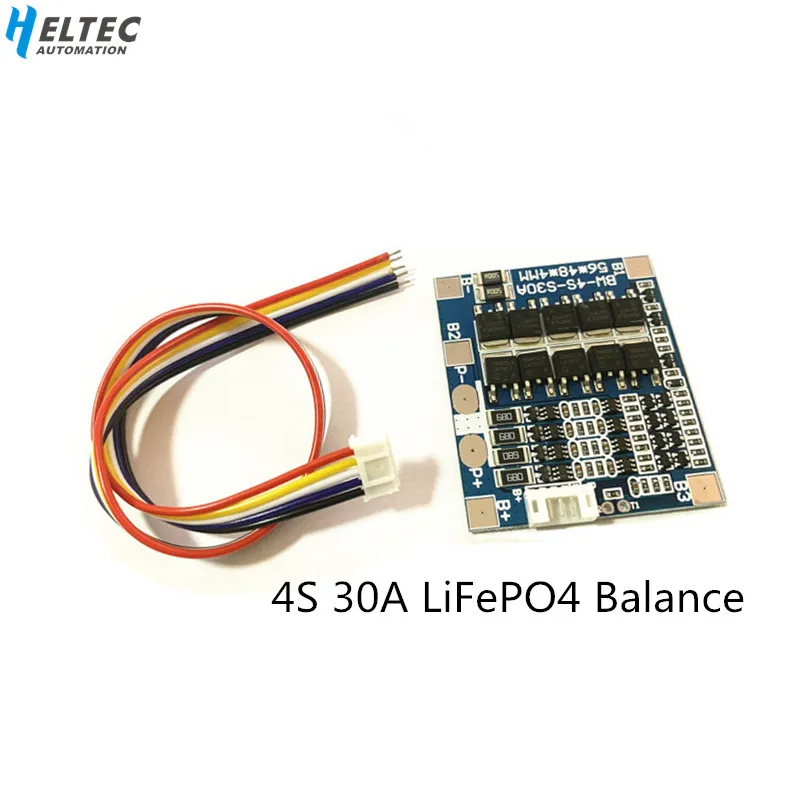

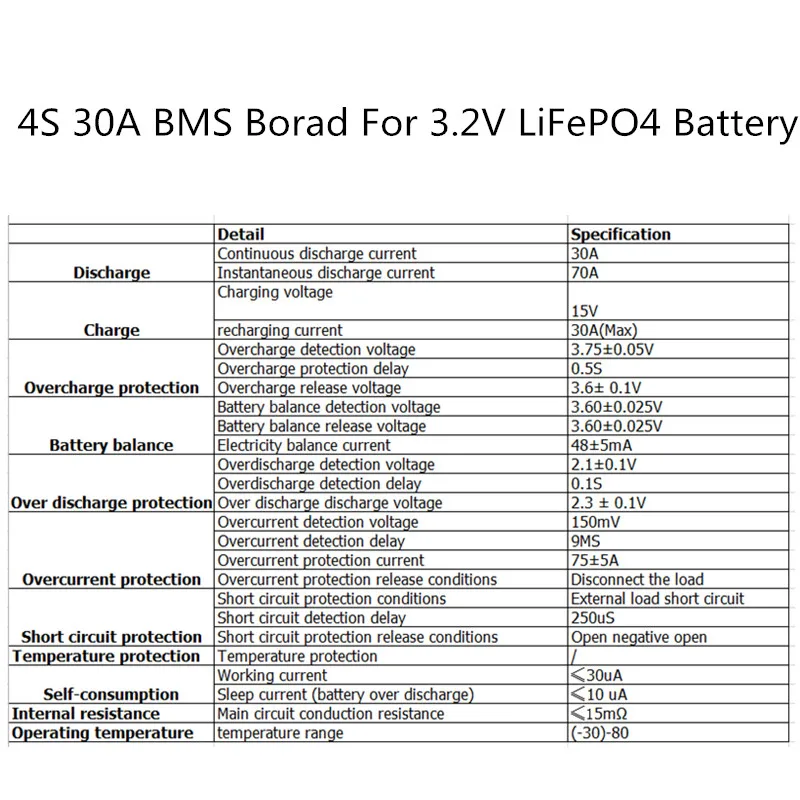

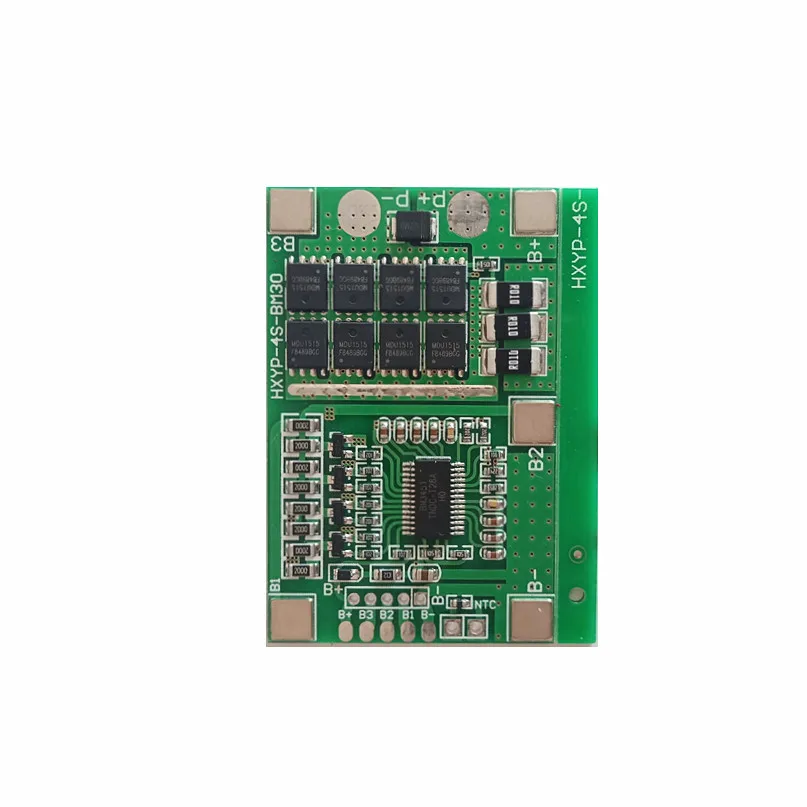

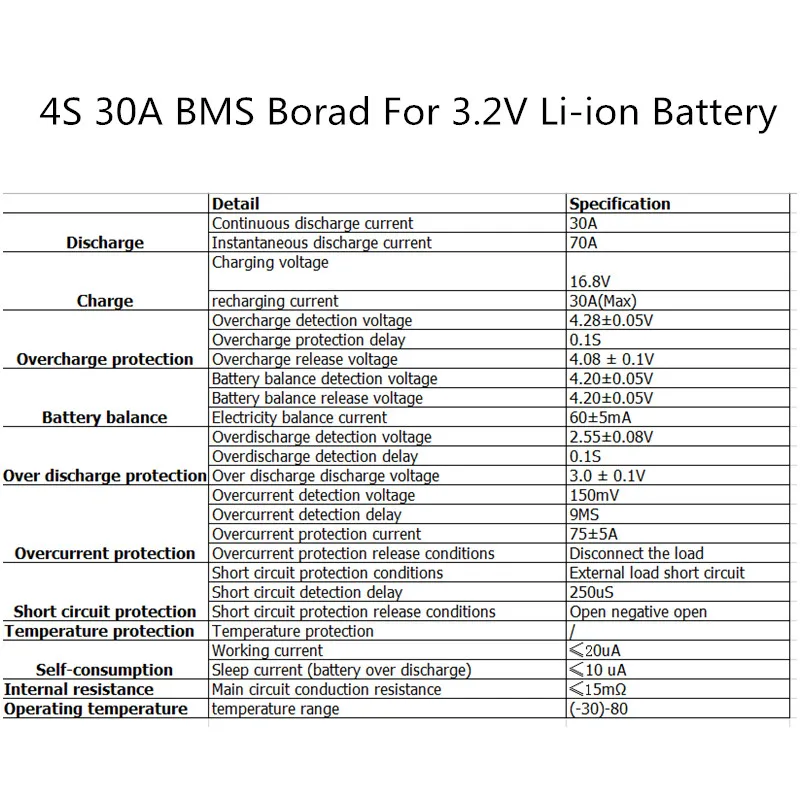

4S 30A FOR 3.7V Or 3.2V

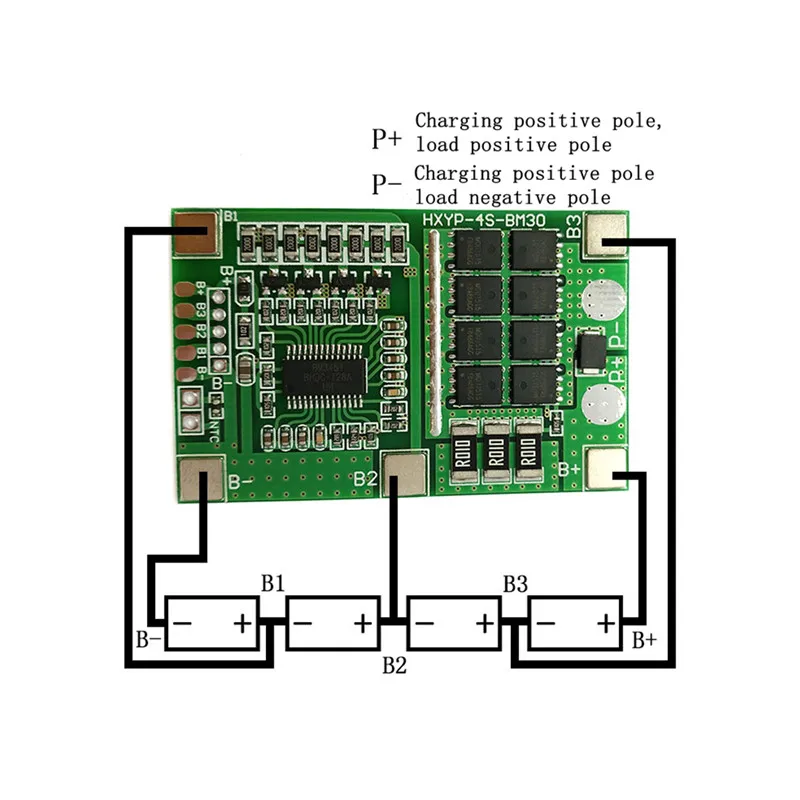

4S 3.7V lithium battery Protection BoardSize:56*43*3MMWork Current :30A(Max)

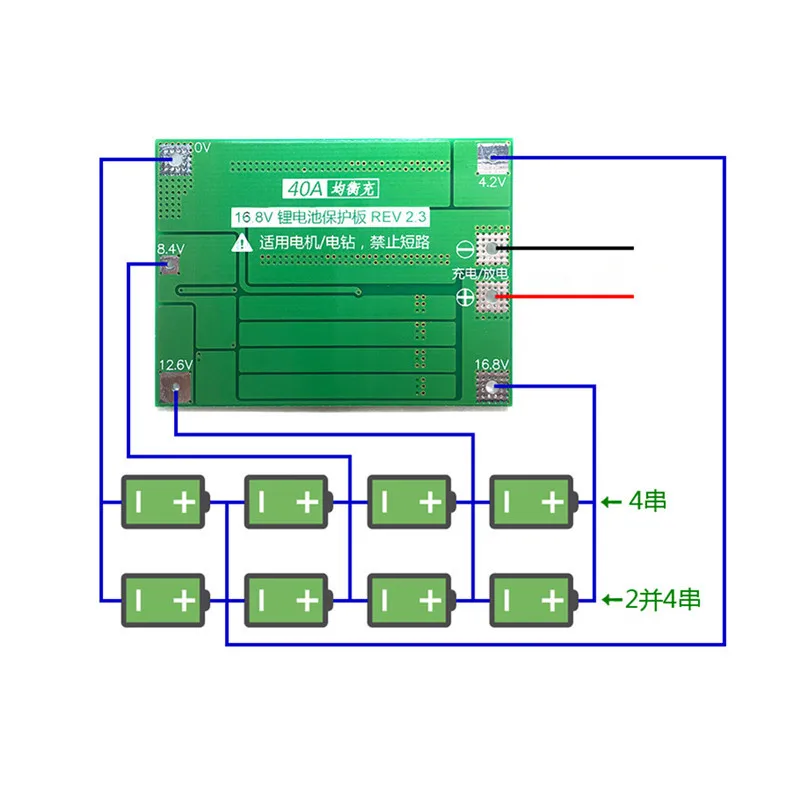

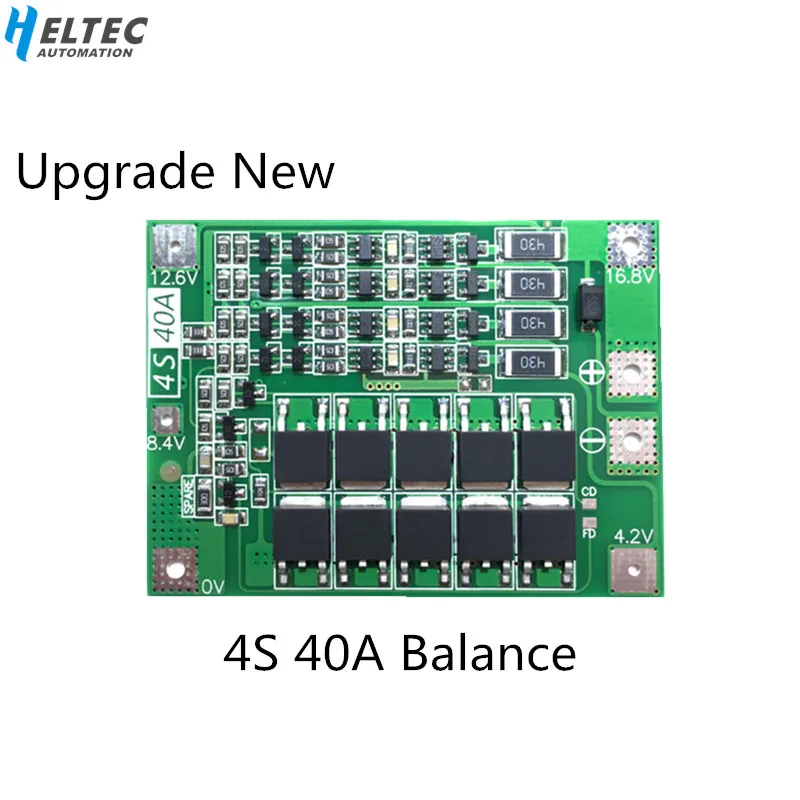

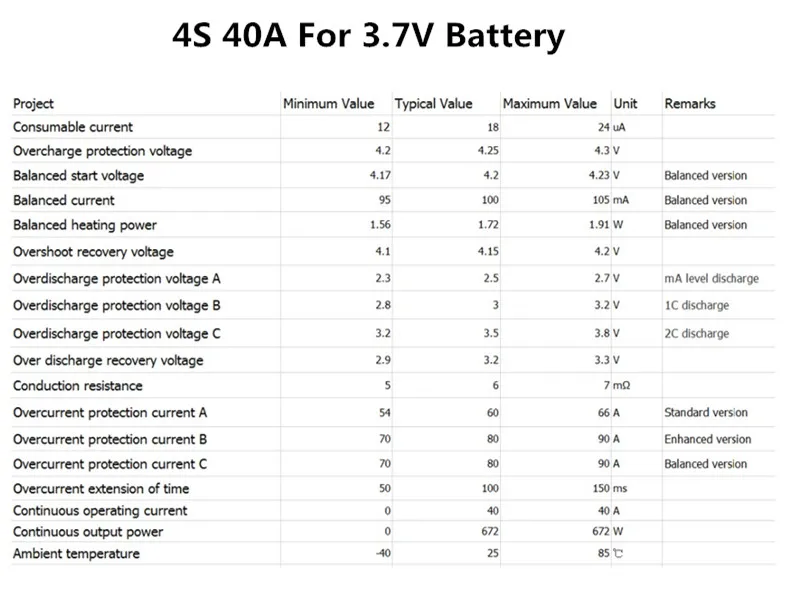

4S 40A FOR 3.7V Or 3.2V
4S 35A 3.2V Same
Charging protection voltage: 3.65VCharge release voltage: 3.55VBalanced opening voltage 3.405VDischarge protection voltage: 2.35VDischarge release voltage: 2.55VBalance current: 37 mAContinuous discharge current: 35AContinuous charging current: 20ACurrent limit protection: 67AWith temperature control protectionShort circuit protectionSpecification size: 56×36×3mmSuitable for motors within 150W, 350W energy storage. Commonly used for sea fishing and fishing turbines, Xenon lamp lighting, street lamp lighting, etc.
4S 50A Balance

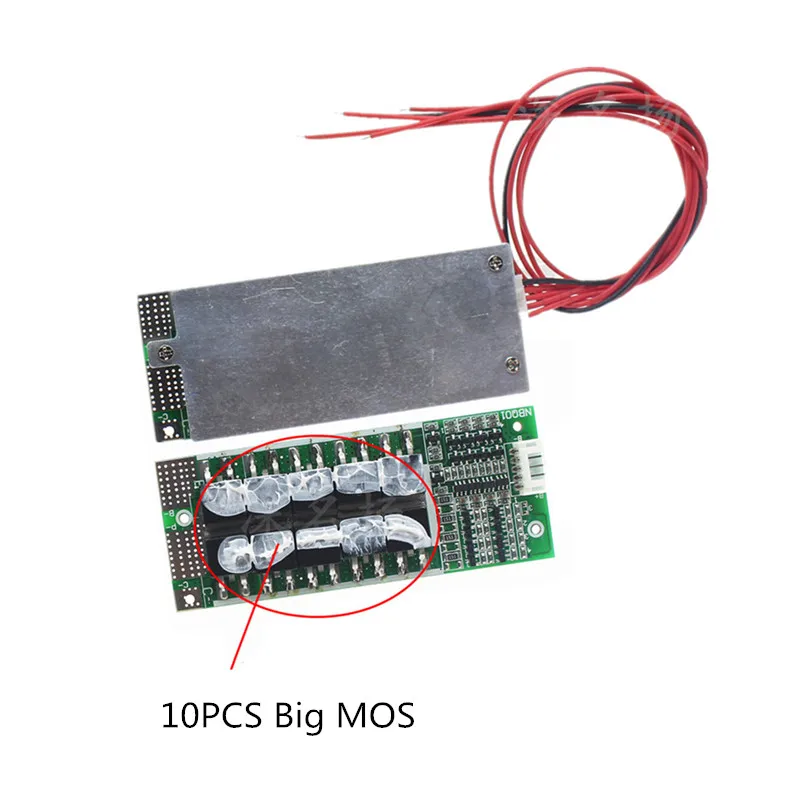

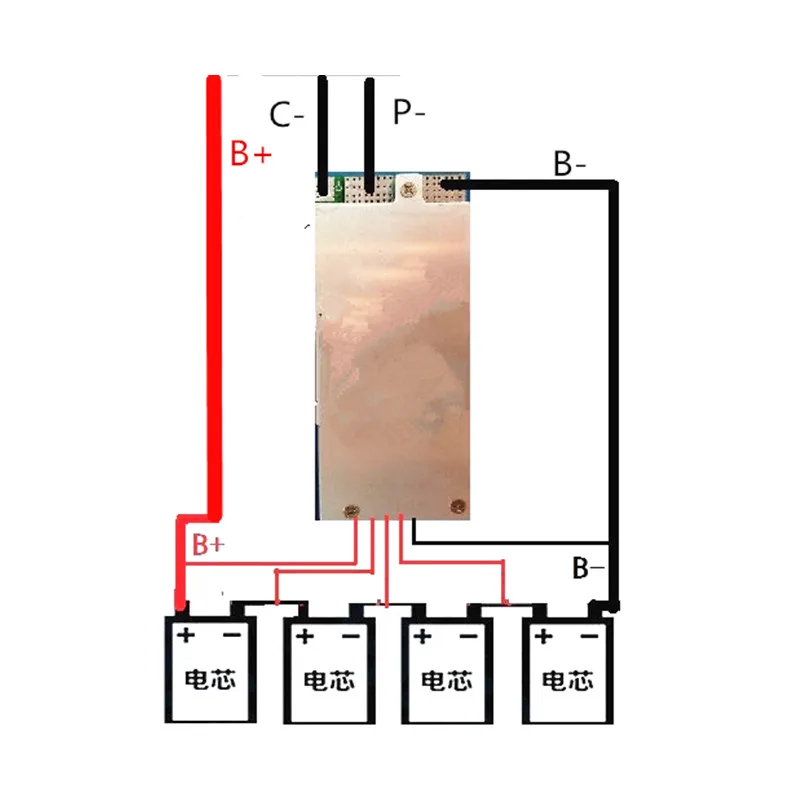

4S 100A 3.2V
Size: 87 * 35 * 8mmContinuous working current: 100A or lessCharge current: 8A or lessBalanced charging: YesShort circuit protection: yesFor assembly: Nominal 3.2V batteries / four strings and more Package Include: 1*Protection Board
