Switches>>>Lights & Lighting
Brand Name WenQia
Origin CN(Origin)
Certification CCC
Certification CQC
Certification EMC
Certification ROHS
Certification RoHS
Certification CQC
Certification CCC
Current 10A

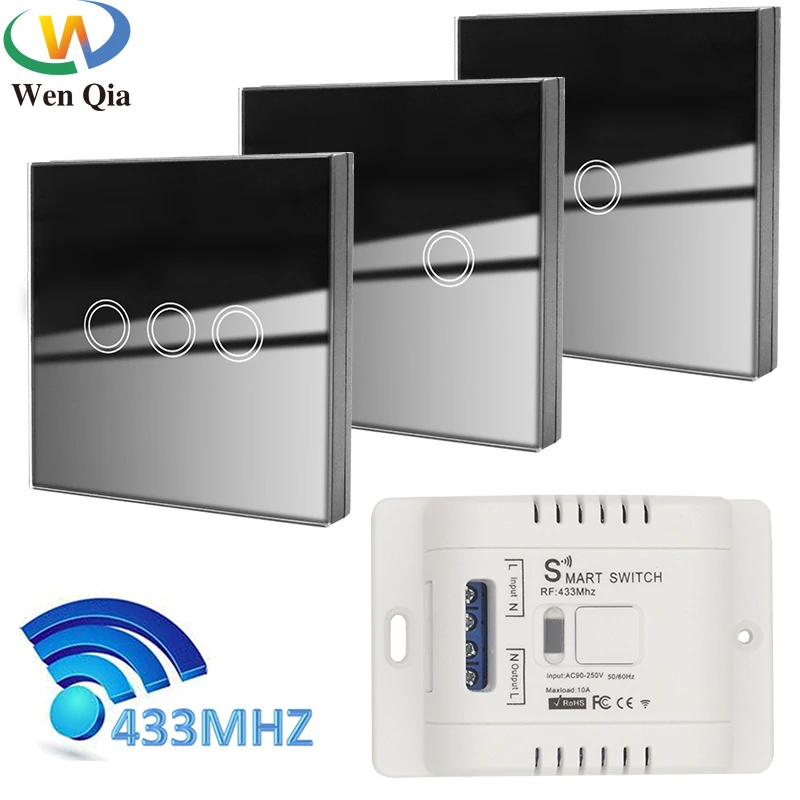

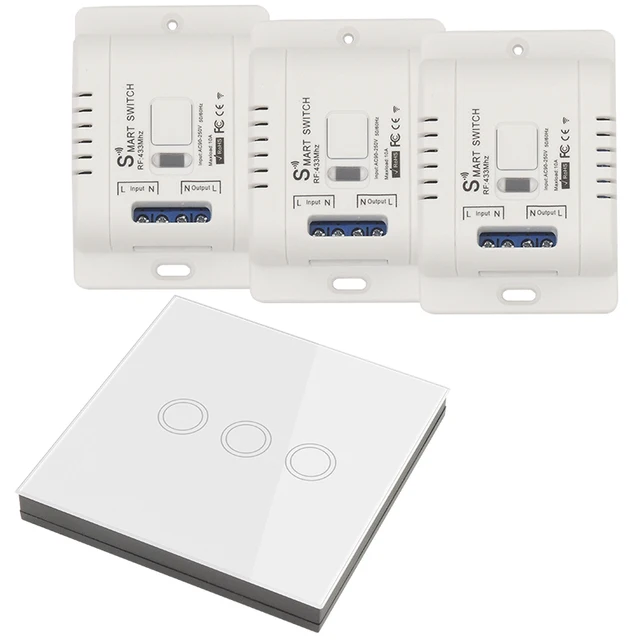

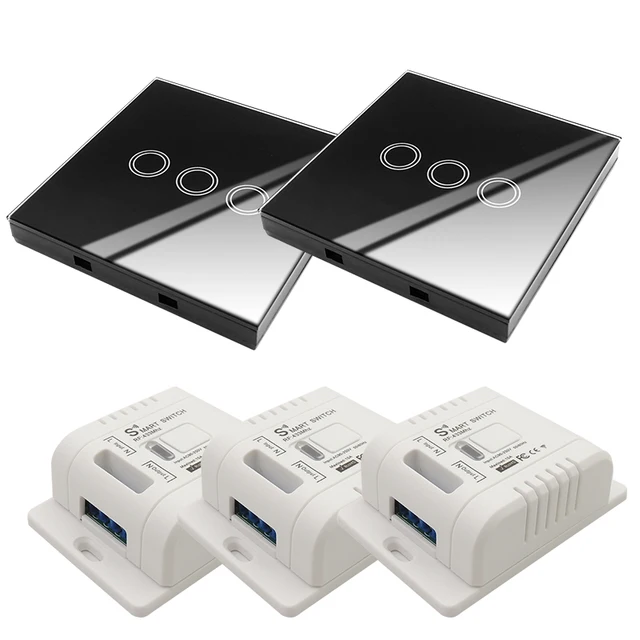

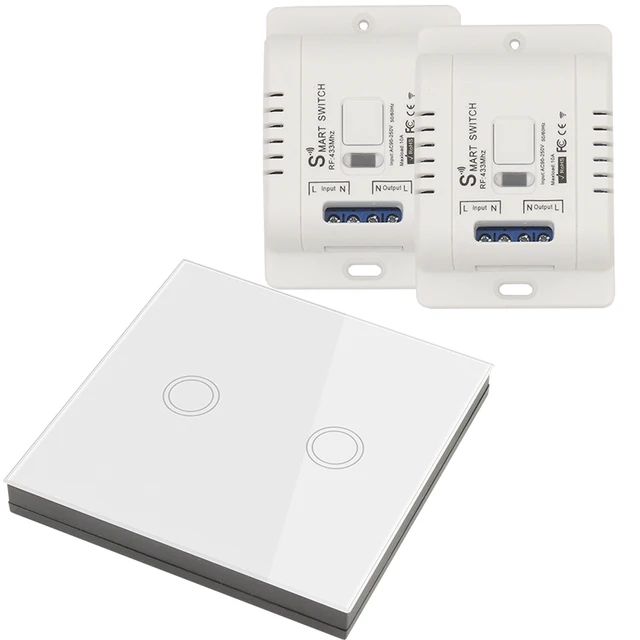

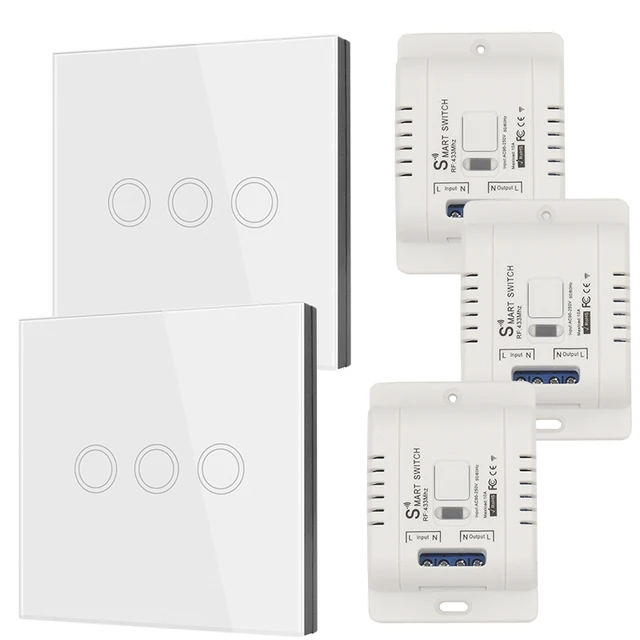

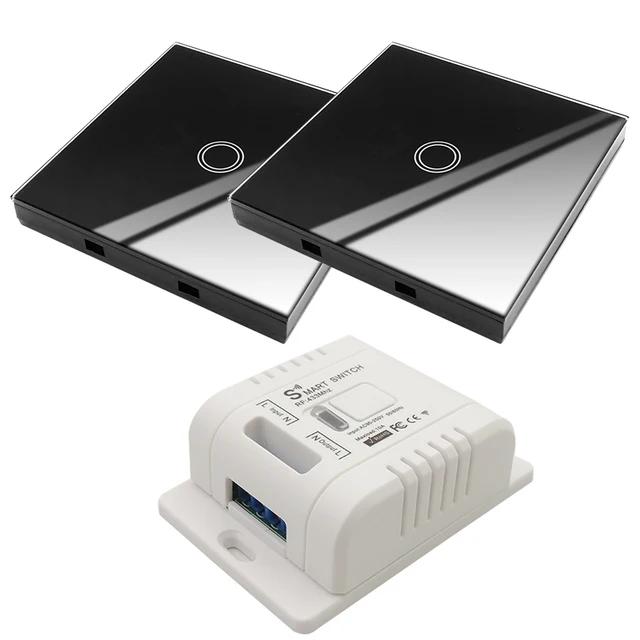

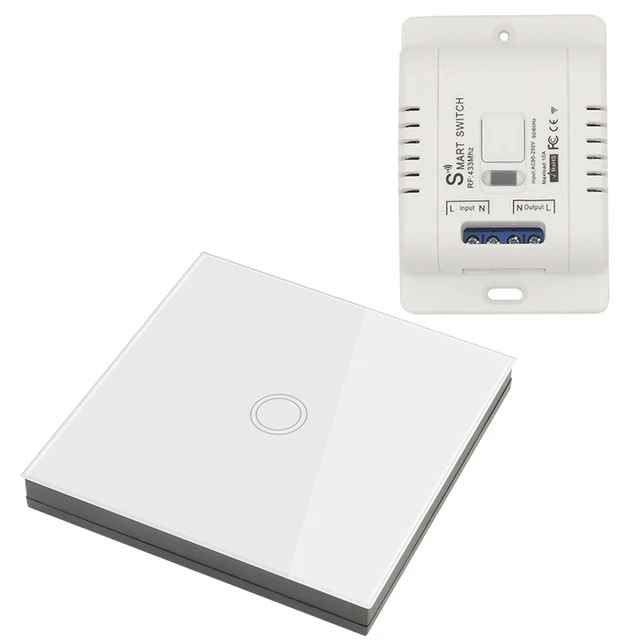

Features 433Mhz RF Wireless Remote Control Switch
Material plastic
Item Type Switches

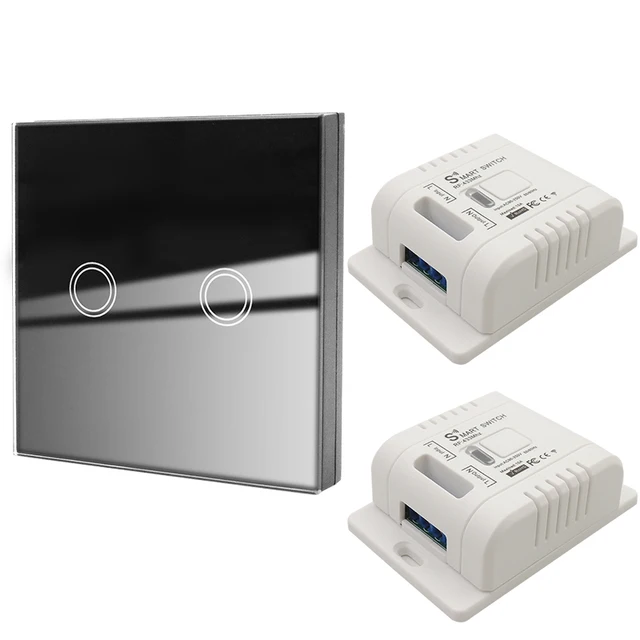

Warranty 1 Year RF 433 MHz 86 2CH Wall Panel Remote Smart Home Led Light Switch
Is Smart Device no
Model Number 2201J+WP08B
Switch Type Touch On/Off Switch
Working Voltage AC 90-220 V 50-60HZ
Quiescent Current less than 5mA
Max current 10A
Receiver Size 75*52*25mm(2.95*2.05*0.98in)
Receiver Weight 0.1 lb(45 g)
RF frequency 433MHz
Receiving Sensitivity more than 97dbm
Working temperature -30~+80 Celsius
Features Wireless Remote Control Switch RF Relay Output 220V 1Channel Receiver
Features2 HD Glass
Wall Switch Size 86*86*13 mm(3.39*3.39*0.51 in)
Wall Switch Weight 0.26 lb(120 g)
Wall Switch Battery 1pcs 27a12v battery
Receiving Range Up to 50m (theoretical distance)
Support encoding 1527 Leaning code
Modulation Mode ASK superheterodyne wireless reception
Remote operating mode Momentary / Toggle/ Latched Mode
Shell YES
Certification CE CCC ROHS
Application scenario Family, Farm, Factory, Office, Supermarket
Application2 Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor
Application3 Garage Doors Access Control System
Application4 Car Sunroofs Control, Mando Garaje
Application5 Caring for the elderly, children, women, pregnant women
Color

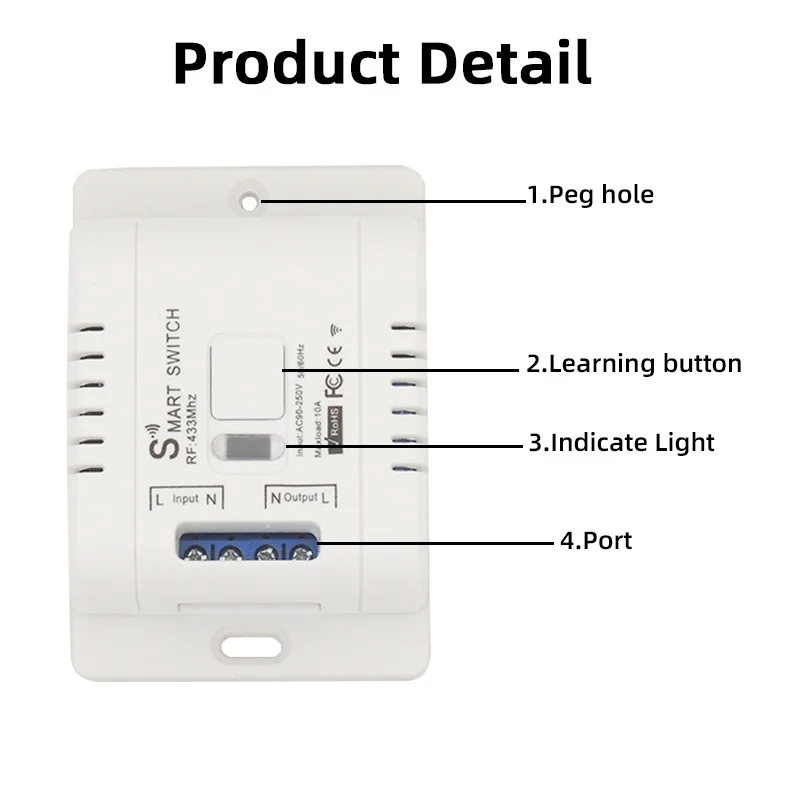

How to set up 1.Press learning button 2times; 2.The indicator will flash several times; 3.Touch wall switch once,succeed. How to Clean Press learning button 8times,the data has been cleaned successfully.

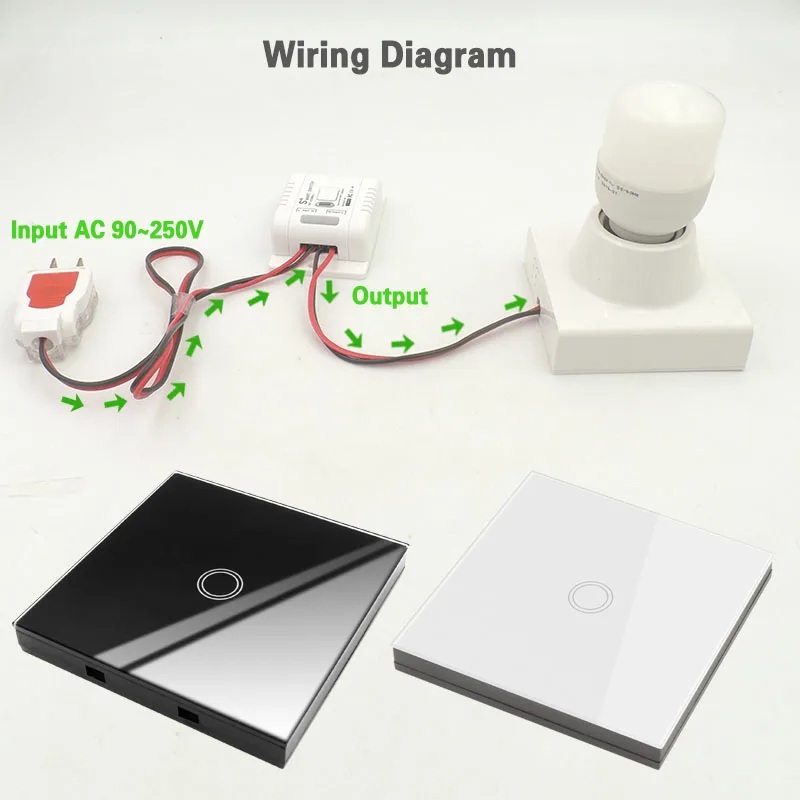

How to Connect

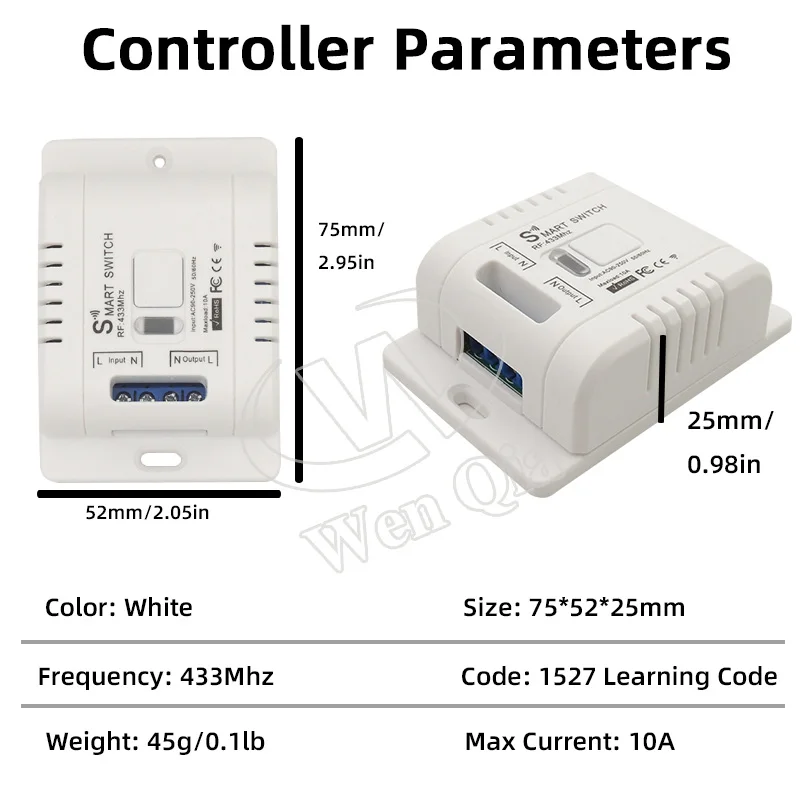

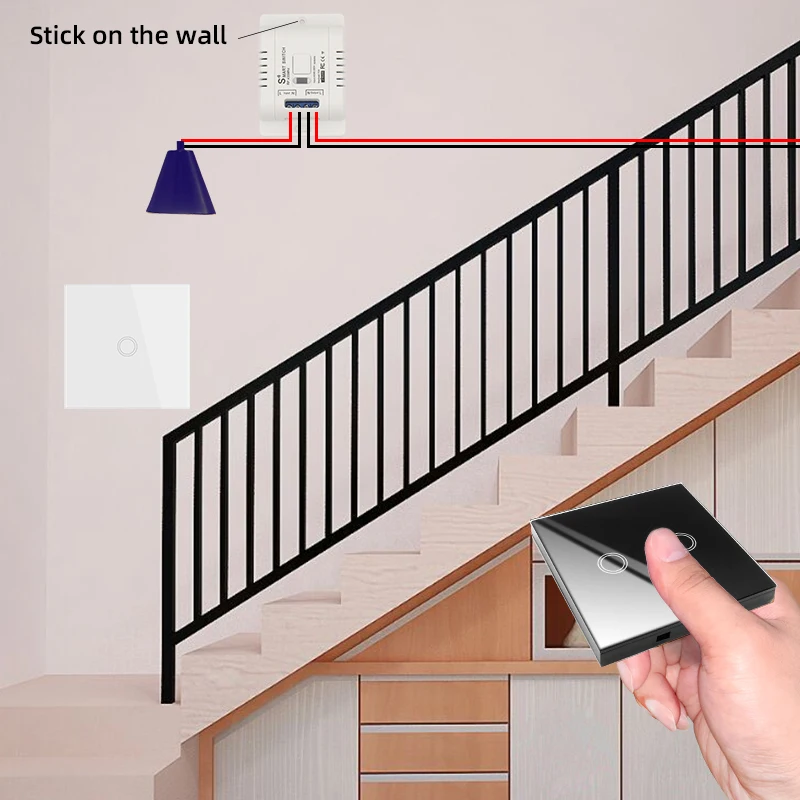

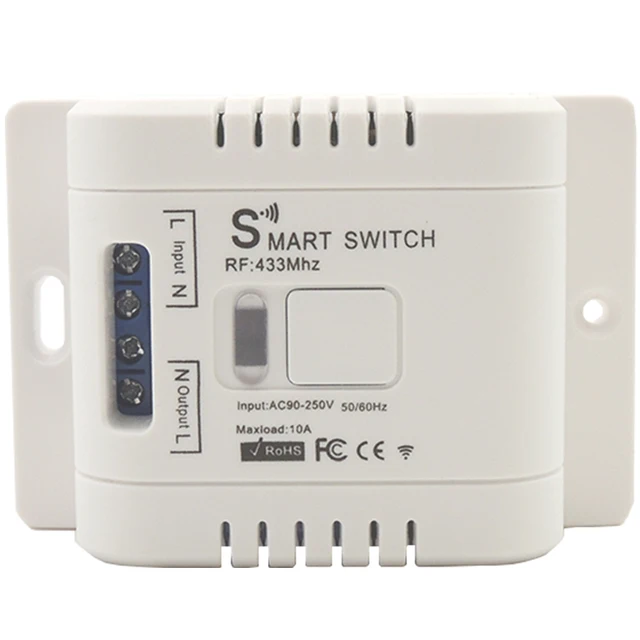

Size 75*52*25mm(2.95*2.05*0.98in) Weight 0.1 lb(45 g) Working Voltage AC 90-220 V 50-60HZ Max current 10A Working temperature -30~+80 Celsius Shell Yes RF frequency 433MHz Feature Has nail holes,can stick on the wall

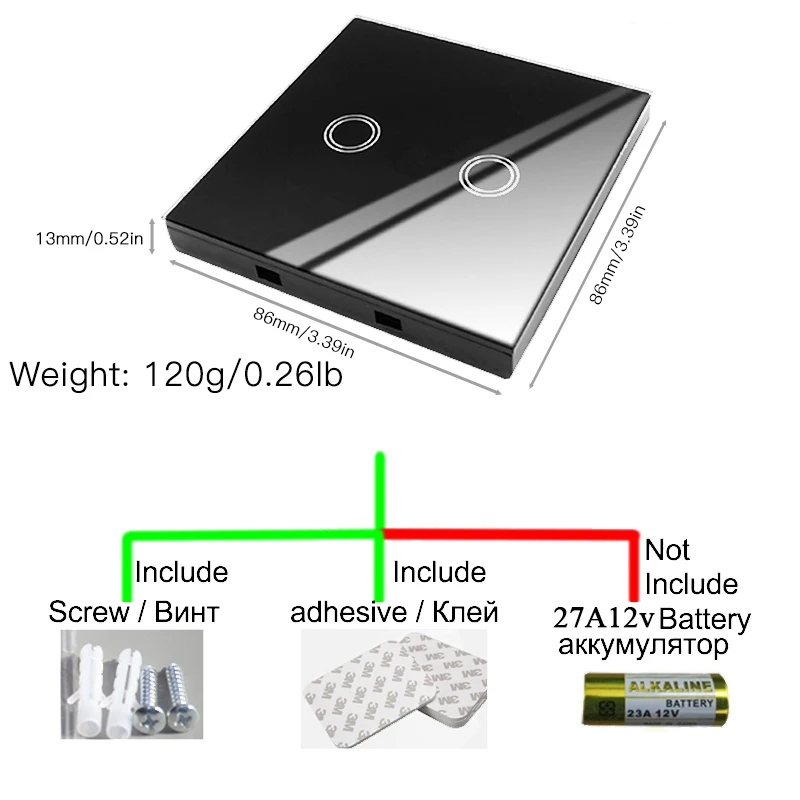

Size 86*86*13 mm(3.39*3.39*0.51 in) Weight 0.26 lb(120 g) Receiving range Up to 50m (theoretical distance) Battery 1pcs 27a12v battery(not include) Working Voltage 3V Working Method wireless remote control Feature Can be seen in the dark night Feature2 Has double side tapy,can paste on anywhere Feature3 Can stick on the wall Feature4 HD Glass

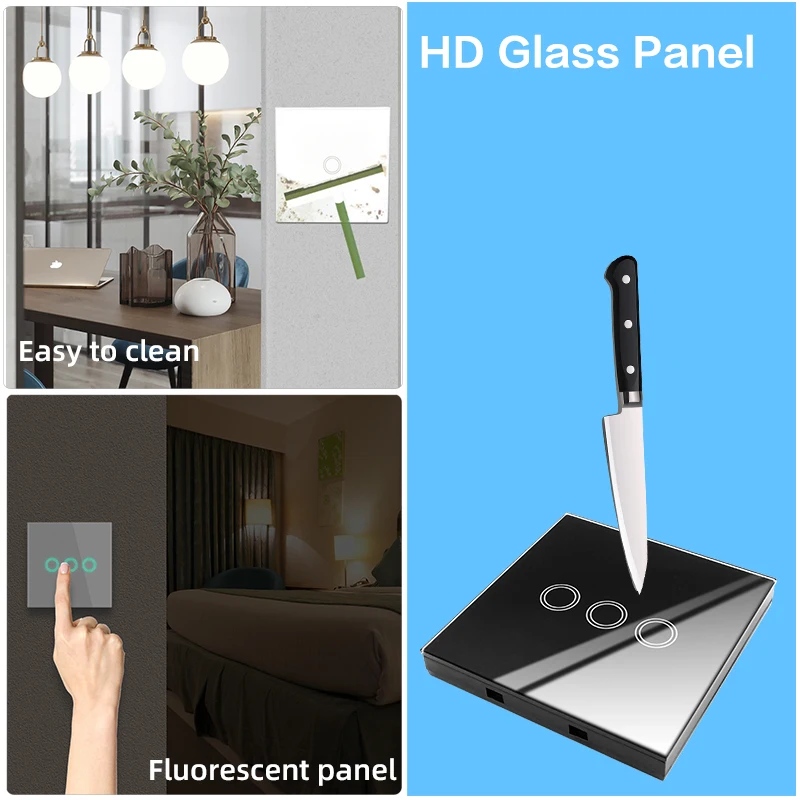

HD Tempered Glass Easy to clean Has Fluorescent strip
Package Include Receiver,Wall switch,Double side tape,nails
Q&A 1.What kind of battery does this wall switch use? It uses 1pcs 27a12v battery.It is smaller than 23a12v battery. 2.When i pressed and hold the button,the lamp light,when I release the button,the lamp off.What is the problem? The receiver has 3modes.Momentary,Toggle,Latched.U need to clear the data and set up in mode2. 3.If u want to buy lot of products,we will use fast shipping method like DHL/FEDEX/UPS to ship your parcel. Note 1.professional electrician should operate this product. When powering on, do not touch the antenna. Install this product without opening the protective cover 2.this receiver can work well with other 433mhz 1527 code remote.U can also use remote in our store to control this receiver. 3.When the voltage of the wall switch is insufficient, please change the battery in time (the remote distance becomes closer when the wall switch battery voltage is insufficient). 4.When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally. *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!* *We have our own factory.Please let us know if you have some OEM projects.We are willing to get a cooperation with you.*
