Solar>>>Consumer Electronics
Brand Name LiWenJinex
Origin CN(Origin)
Type Controller
Model Number MPPT
Color
Features
1. Own algorithm, fast and accurate locking MPPT point, within 10 seconds, accuracy is greater than 99%, MPPT peak conversion rate is 98%.2. Four-stage charging: high-current charging under MPPT point, floating charging, boost charging, balanced charging.3. Lithium battery can be charged (lithium iron phosphate battery, ternary battery), when the lithium battery is under voltage protection, the battery can be activated.4. External temperature probe, accurate temperature5. The maximum voltage of PV input can reach 100V6. System voltage 12 / 24V automatic identification.7. Communication function (can be built-in or crooked WIFI, Bluetooth, GPS module), provides standard MODBUS communication protocol, seamlessly embedded in the client terminal.
Protective function
1. Overcharge protection, automatic recovery2. Over discharge protection, automatic recovery3. Overload protection, short circuit protection4. Solar panel, battery reverse connection protection5. Night charge protection6. USB output overheat and short circuit protection
specification
Rated charging power
10A
20A

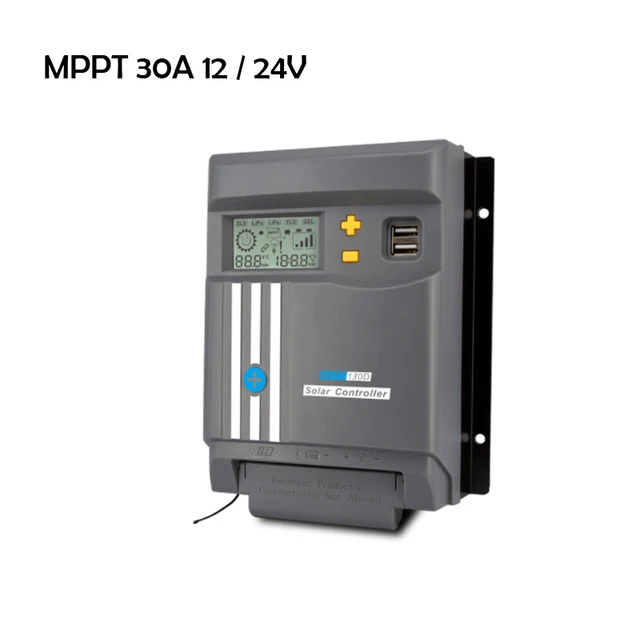

30A
40A
System rated voltage

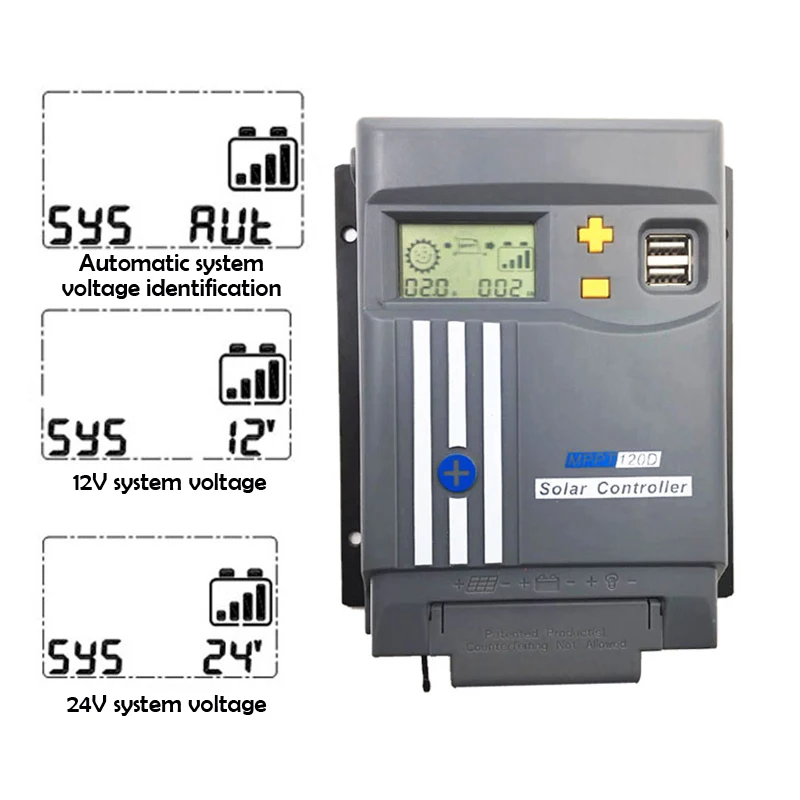

12V / 24V automatic identification
Battery voltage range
8-32V
PV open circuit voltage

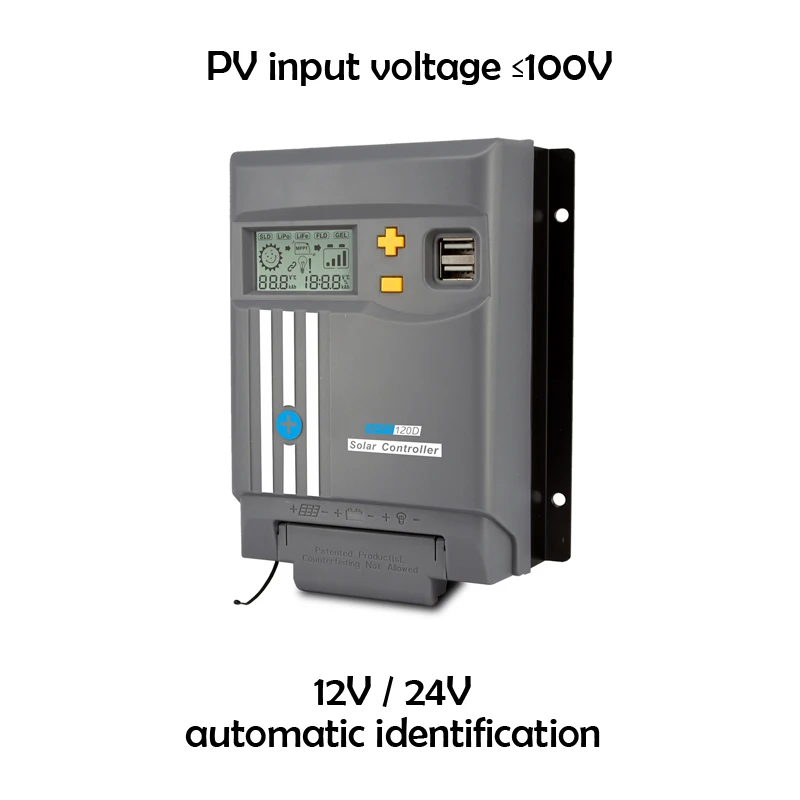

Within 100V
Battery type

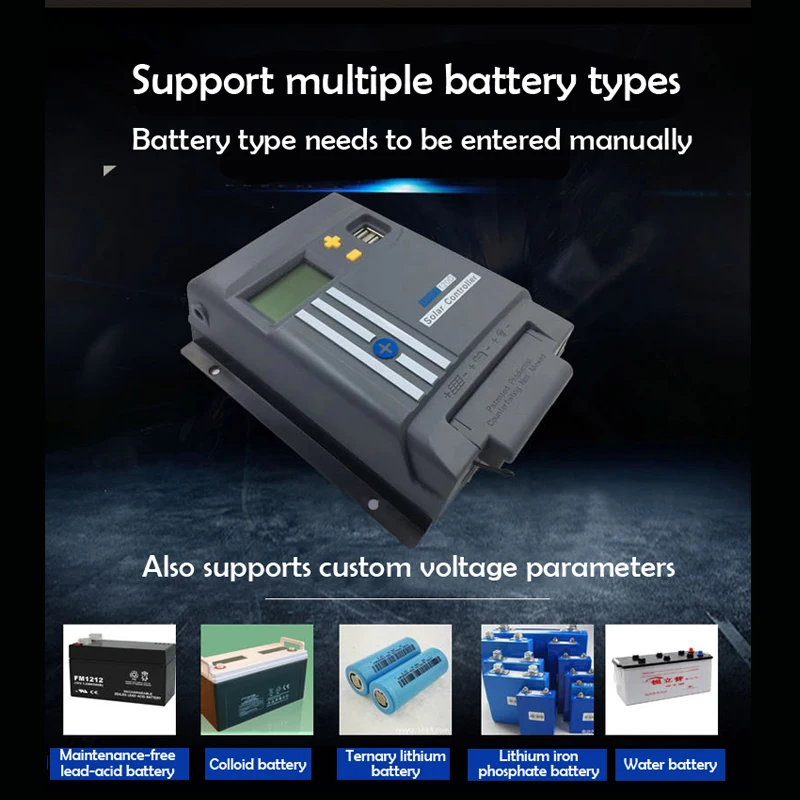

Custom / sealed lead acid / open lead acid / lithium iron phosphate / ternary lithium battery
Balanced voltage
Lead-acid maintenance-free: 14.6V; colloid: none; lead-acid liquid: 14.8V
Boost voltage
Lead-acid maintenance-free: 14.4V; colloid: 14.2V; lead-acid liquid: 14.6V
Float voltage
Lead-acid maintenance-free / colloid / lead-acid liquid: 13.8V
Low voltage disconnection recovery voltage
Lead-acid maintenance-free / colloid / lead-acid liquid: 12.6V
Low voltage disconnection voltage
Lead-acid maintenance-free / colloid / lead-acid liquid: 10.8V
Static loss
≤45mA / 12V; ≤37mA / 24V
Overvoltage protection point
16.00V
Increase charging time
2hs
Equalized charging time
2hs
Light control voltage point
5V
Temperature compensation coefficient
-4mv / ℃ / 2V (25 ℃)
Discharge circuit buck
≤0.20V
LCD temperature range
-20 ℃ ~ + 70 ℃
Working temperature range
-20 ℃ ~ + 55 ℃
storage temperature
-30 ℃ ~ + 80 ℃
Relative humidity
≤90% without condensation
Protection level
IP30
Grounding type
Positive ground
Dimensions
155.5 * 127 * 42.5mm
175.5*145*50mm
195*160*60mm
215.5*174*65mm
Mounting hole size
117 * 100mm
135*110mm
150*120mm
165*160mm
Mounting hole size
5mm diameter
Wiring
10mm²/7AWG
16mm²/5AWG
net weight
360g
525g
835g
1125g
Optional communication function
Remote communication, RS485 / RS232, RJ45 interface
The voltage parameters are 25 ℃ / 12V system parameters, 24V system parameters * 2
