Motors & Parts>>>Home Improvement
Origin CN(Origin)
Certification CCC
Certification ce
Certification ROHS
Certification UL
Commutation Brush
Model Number FF-180SH-3533 Motor
Type Micro Motor
Protect Feature Explosion-proof
Construction Permanent Magnet
Usage Home Appliance
Efficiency IE 1
Usage Electric Shaver

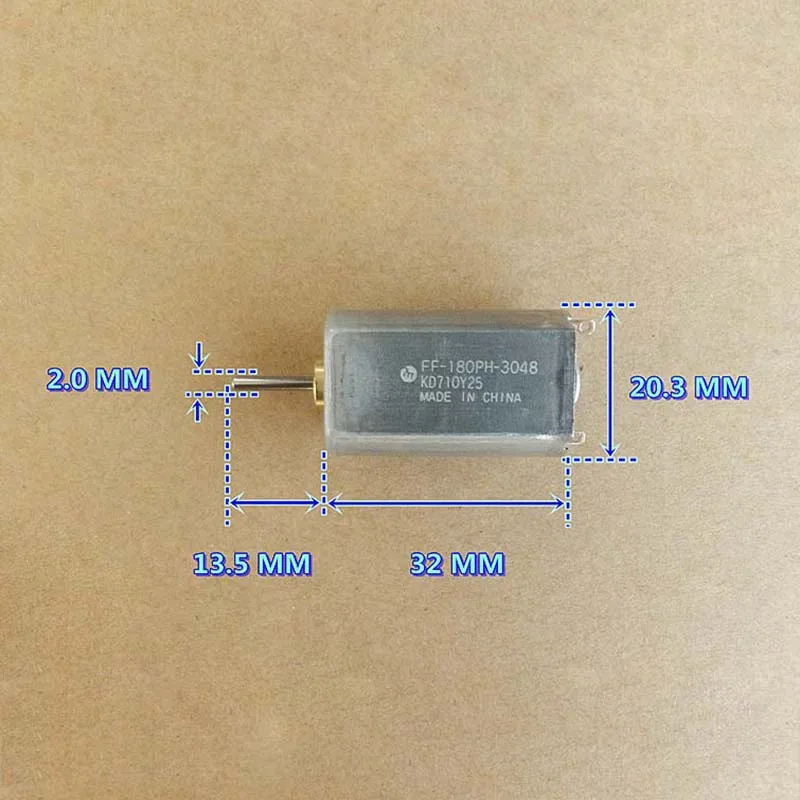

Motor Specification 15.4*20.3mm
Motor Length 32mm
Output Shaft Diameter 2mm
Output Shaft Length 13.5mm
Voltage Range DC 1.5-6V
Nominal Rated Input Voltage 3V, 2.4V, 3.6V, 3.7V

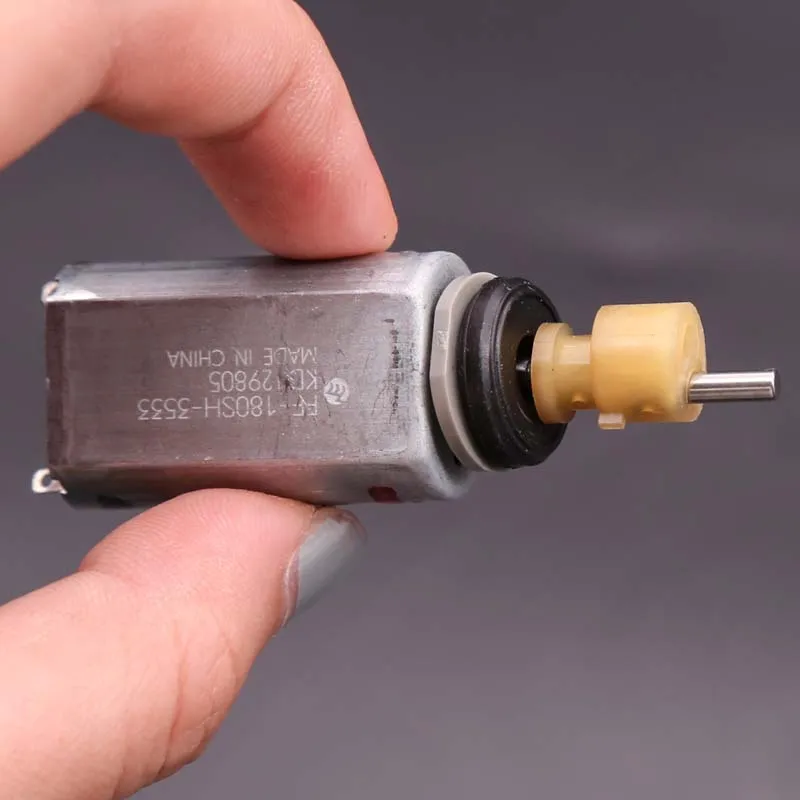

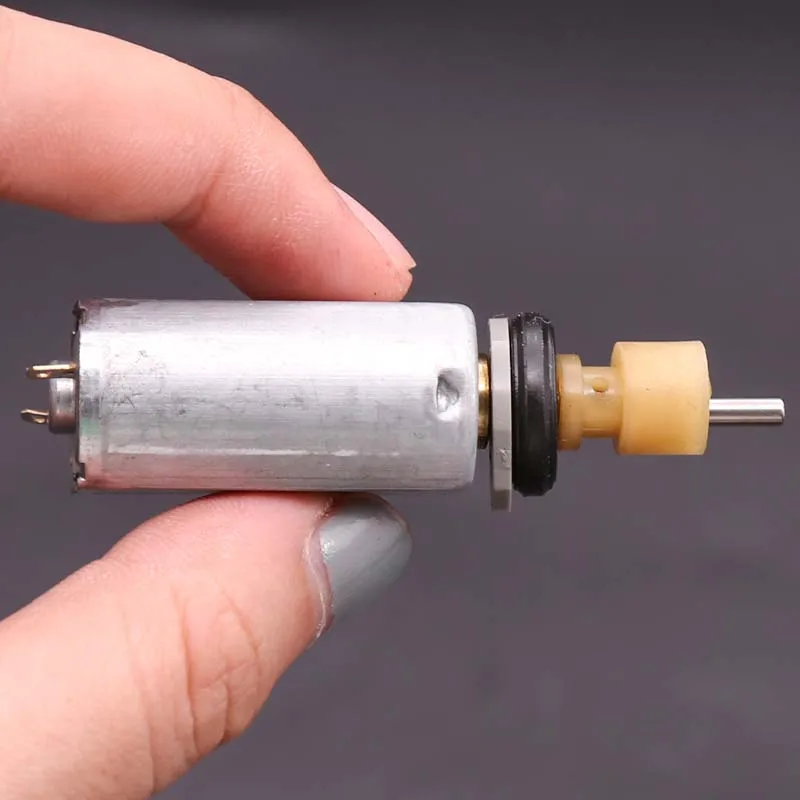

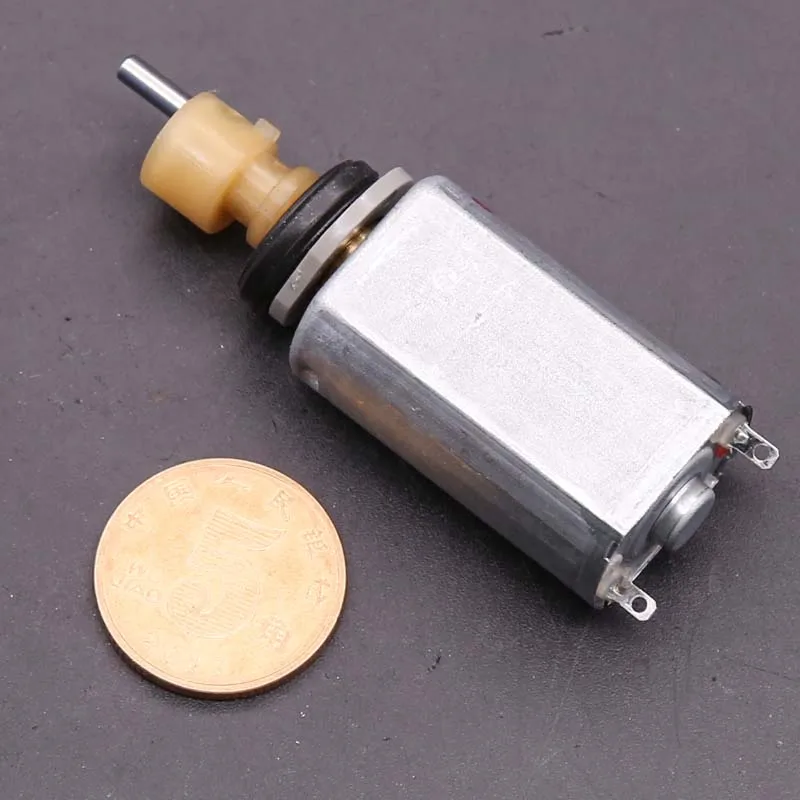

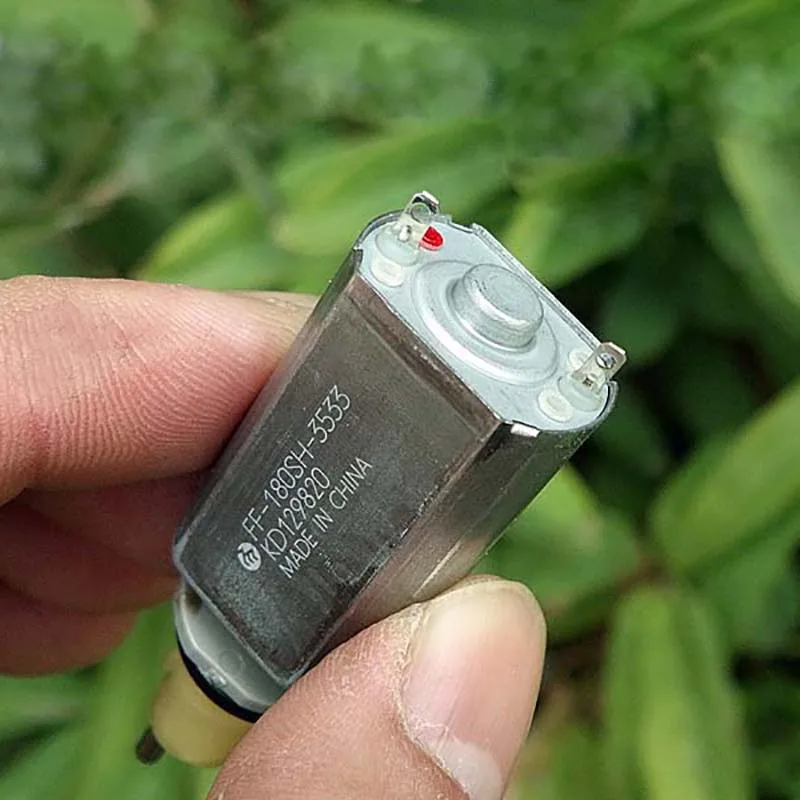

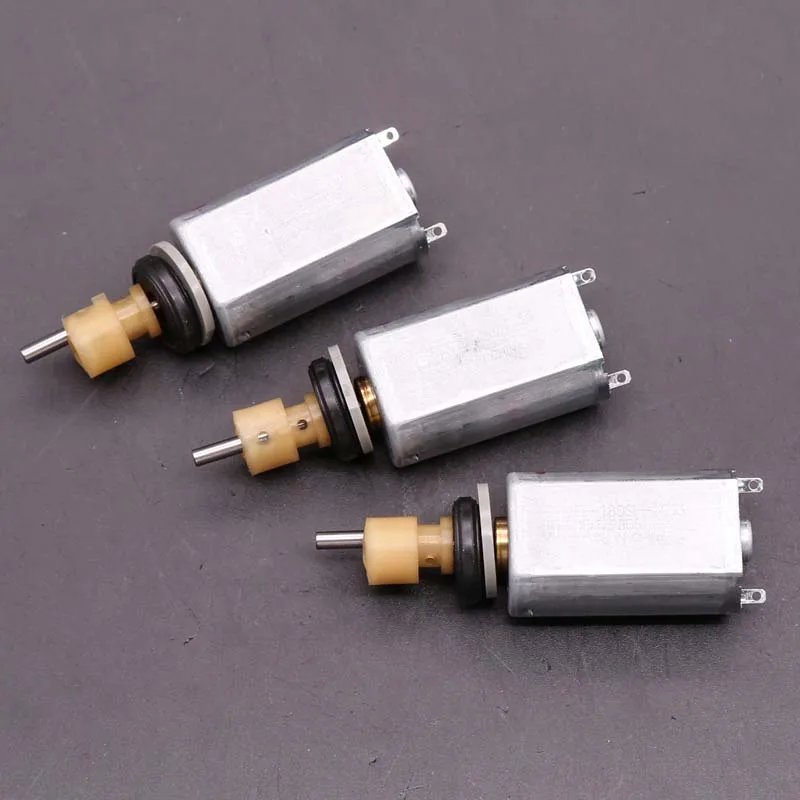

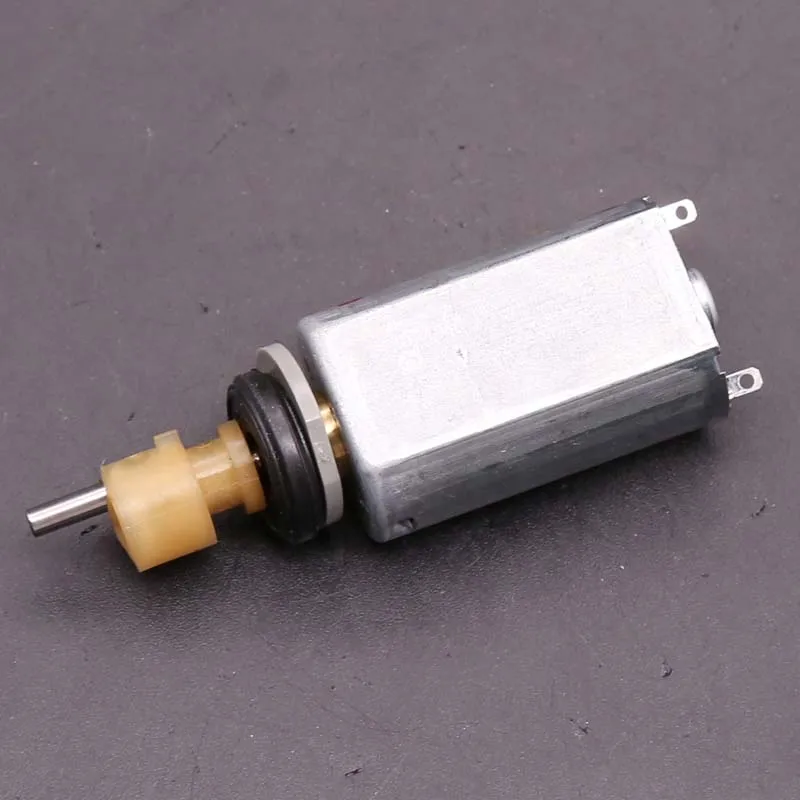

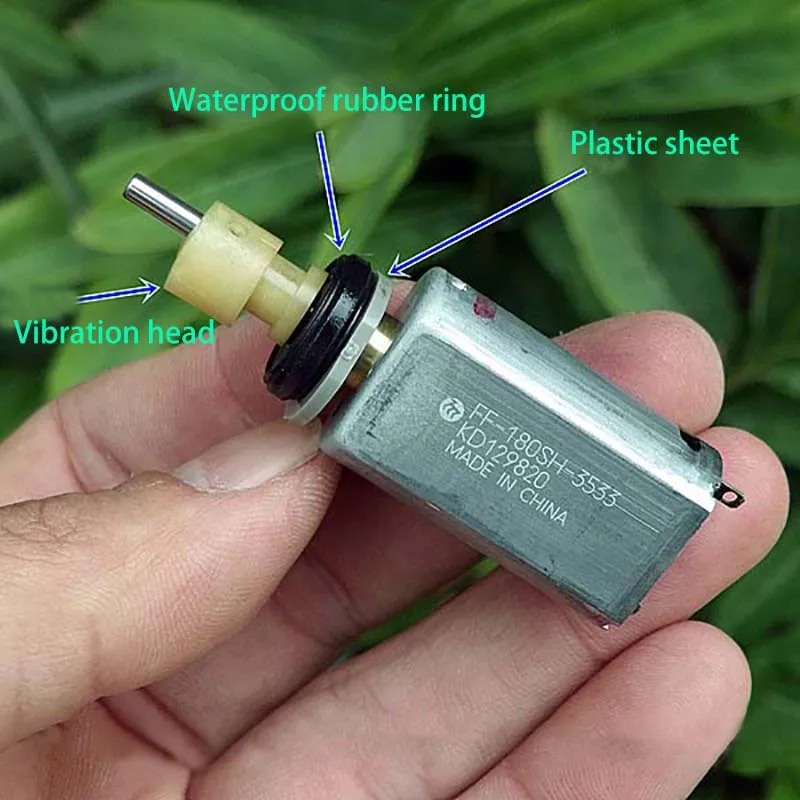

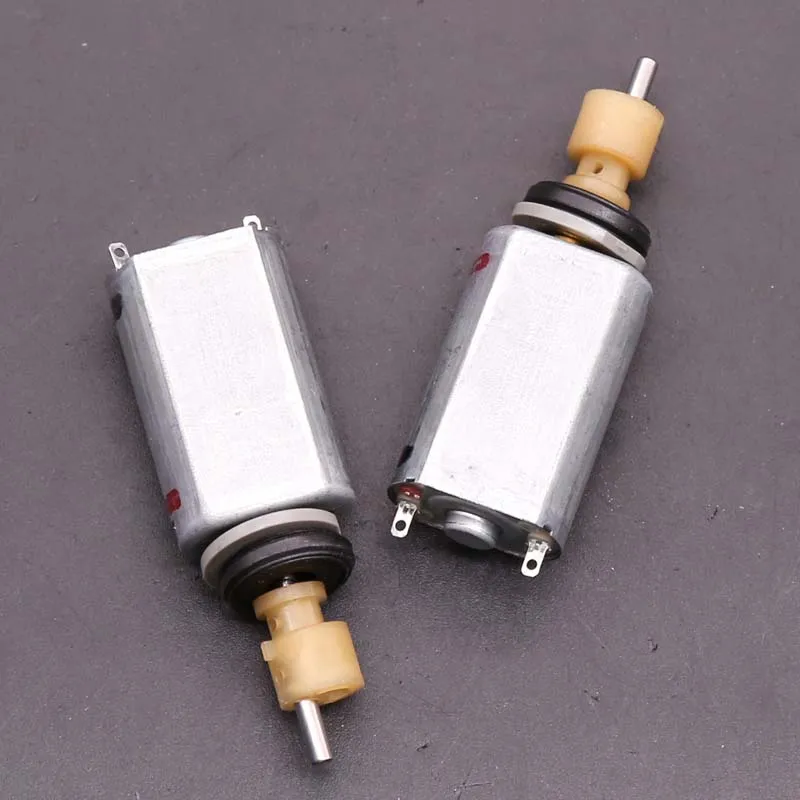

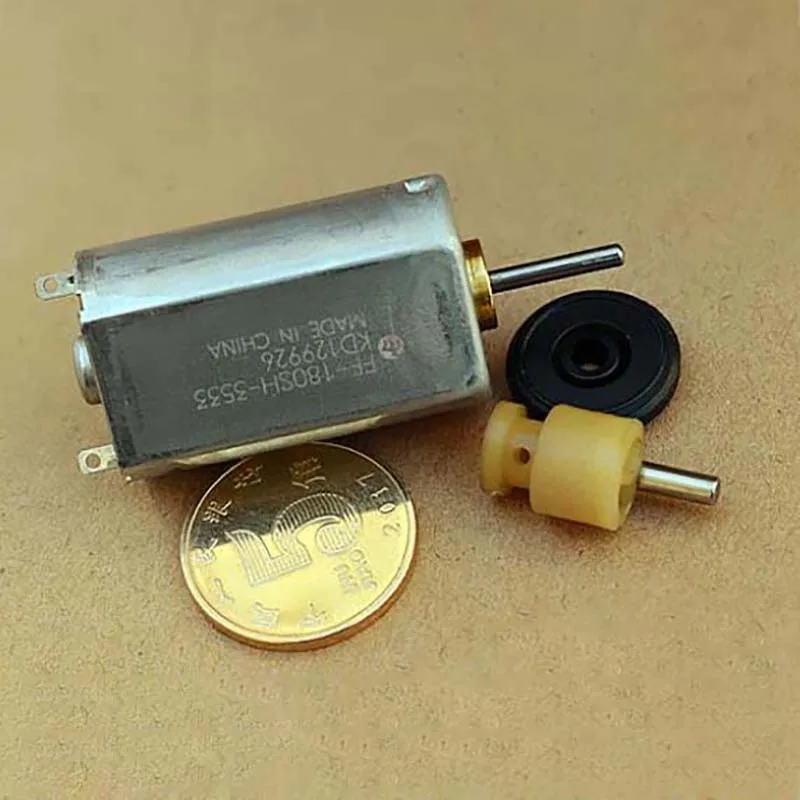

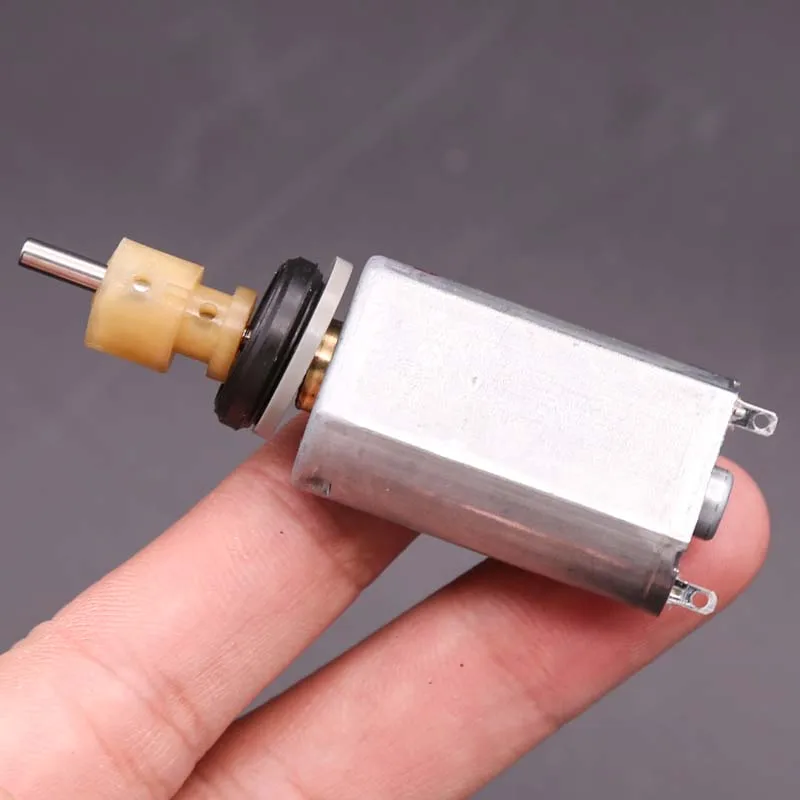

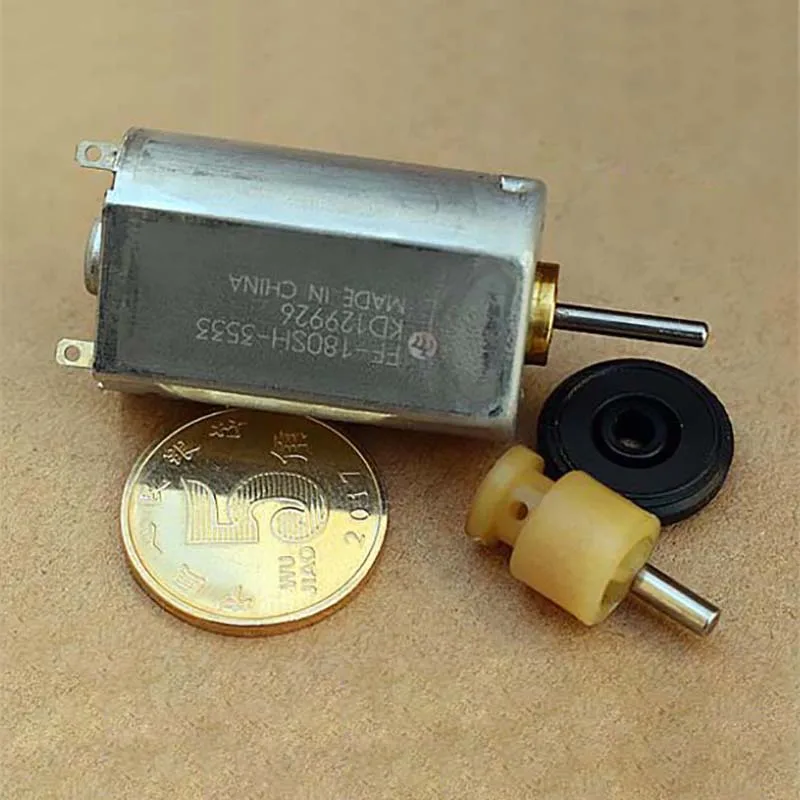

MABUCHI FF-180SH-3533 Electric Shaver Motor Mini Micro 180 DC 2.4V 3V 3.7V Toy Engine Precious Metal Brush 21800RPM High Speed

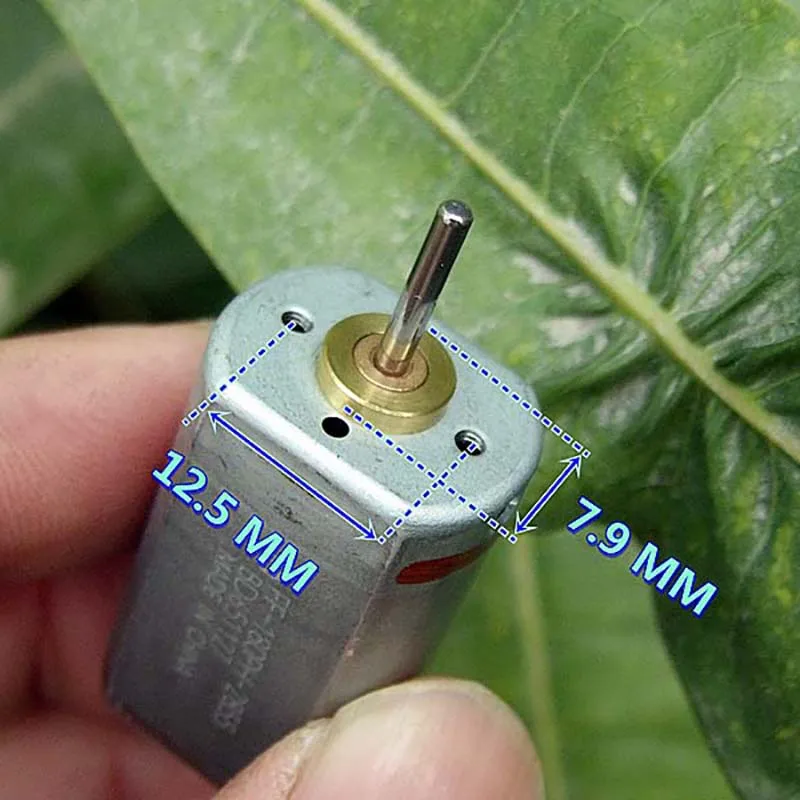

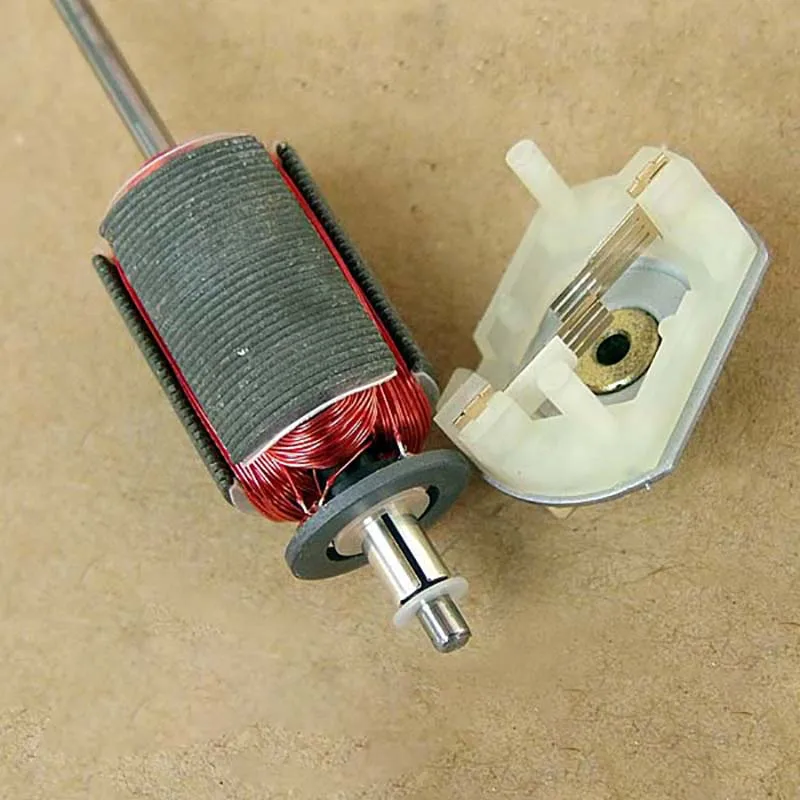

Specifications:This 180 motor is original Mabuchi motor, previous metal brush, good quality.This motor is for electric shaver, hair clipper ect.Brand: MABUCHI Model: FF-180SH-3533 MotorVoltage: DC 1.5-6VMeasured parameters:When the power supply is 3V, the no-load current is about 0.28A, and the rotation speed is about 15000rpm.When the power supply is 6V, the no-load current is about 0.48A, and the rotation speed is about 21800rpm.Motor Specification: 15.4*20.3mmMotor Length: 32mmOutput Shaft Diameter: 2mmOutput Shaft Length: 13.5mmFixed aperture: 2mmFixed hole distance: about 12.5mmWeight: 33.5gPackage included:Shaver Motor x1.
