DC 8V-40V to DC 12V 3A 36W Stabilizer Converter Transformer Booster Regulator Step Up Down Module Power Supply for LED Car Solar

Lighting Transformers>>>Lights & Lighting

Brand Name Free_on

Origin CN(Origin)

Plug Type None

Output Voltage 12V

Certification ce

Certification FCC

Certification ROHS

Material Aluminum

Features DC 8V-40V to DC 12V 3A 36W Converter

Output Signal DC

Item Type Lighting Transformers

Warranty 1 Year

Weight 130g

Model Number PWA-0009

Input Signal DC

Input Voltage 8V-40V

Max Output Current 3A

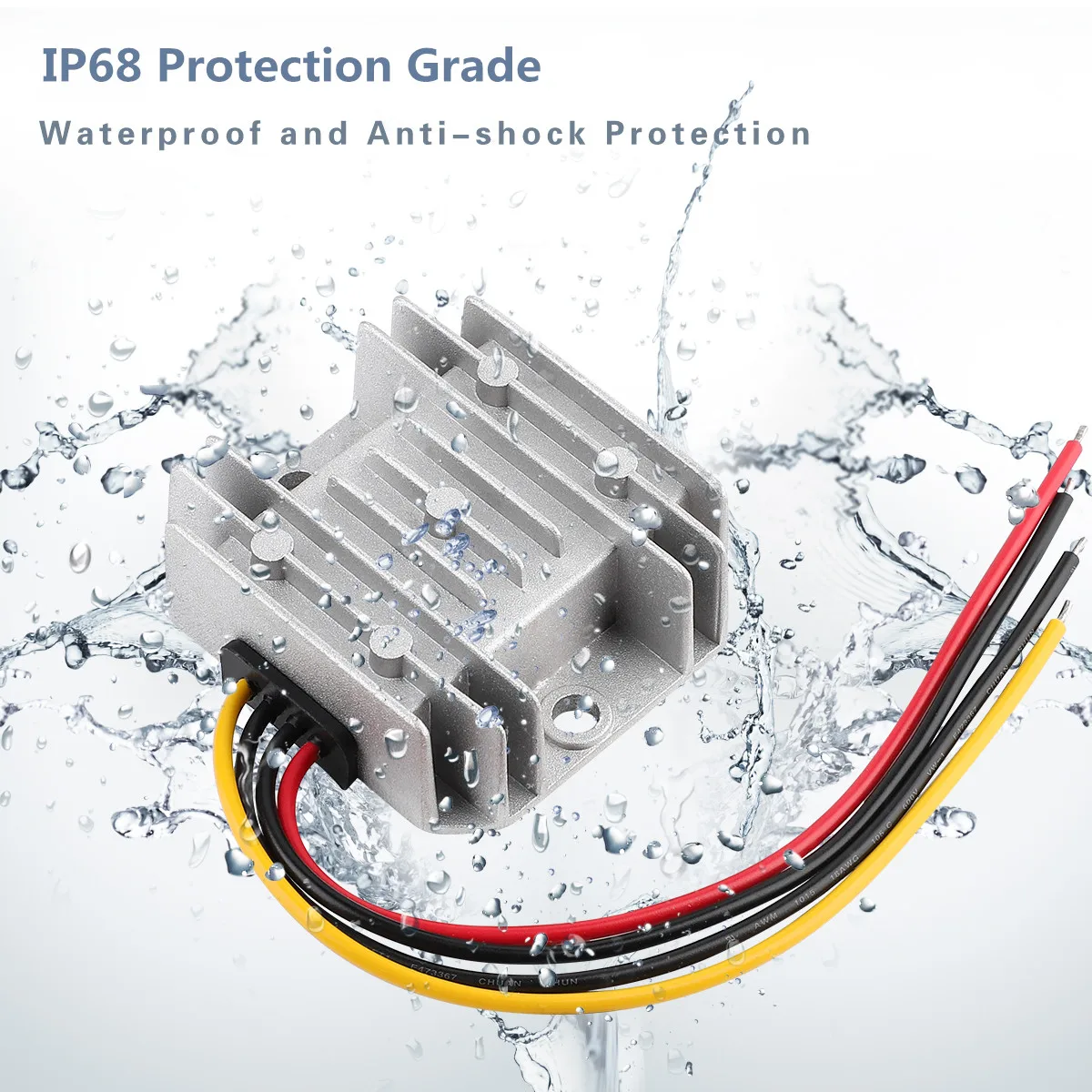

Waterproof Rating IP68

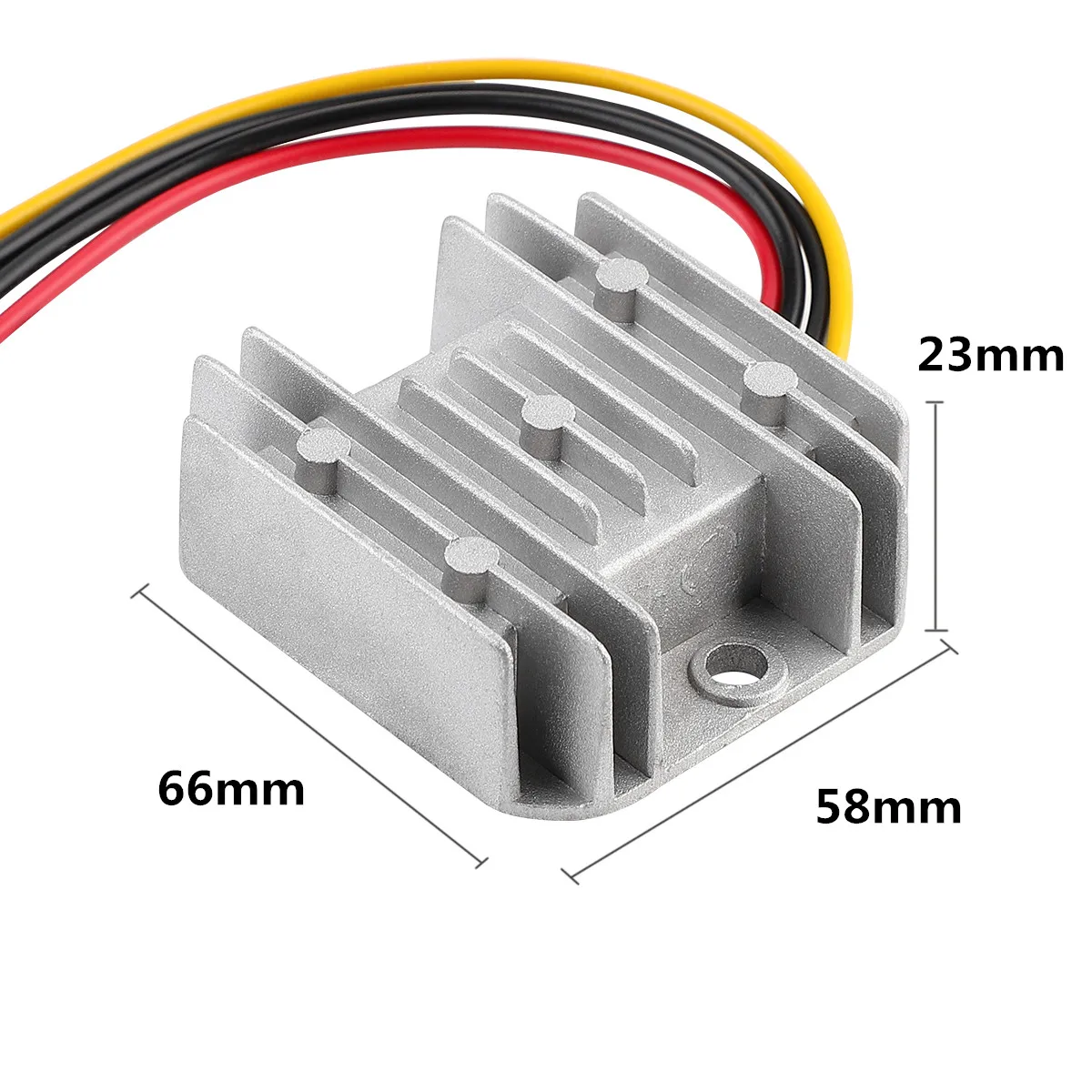

Size 66*58*23mm

Input Range DC 8V-40V

Operating Temperature -40-+85 Degree

Efficiency >96%

Suitable for LED,Car,Solar,Cameras,Electronic,Automation,etc

Protection Short-circuit,High-voltage,Low-voltage,Opposite-connection

Ships From

China

Russian Federation

8V-40V to 12V 3A 36W DC DC Converter Step Up Down Regulator Voltage Stabilizer Waterproof Boost Buck Transformer Power Supply

67170

Hot Selling



Features:

*All epoxy sealed containers with waterproof die-cast aluminum housing;*Light compact, convenient to use and transport;*Non-isolated; High efficiency: > 96%;*Operating temperature: -40 ° ~ +85 ° (max: +85 °);*With overload / over-current / over / low voltage protection, stable performance; Auto recovery.Specification:Input Voltage: 8V-40V nominalInput range: 8V to 40VOutput Voltage: DC 12V ±1.5%Max Output Current: 3A

Ripple:<100mV

No-load Current<0.02A

Line Regulation:±0.02%

Load Regulation:±0.02%

Efficiency: ≥96%

Size: 66*58*32mmWaterproof:IP68

Package Include:

1*DC-DC Converter
