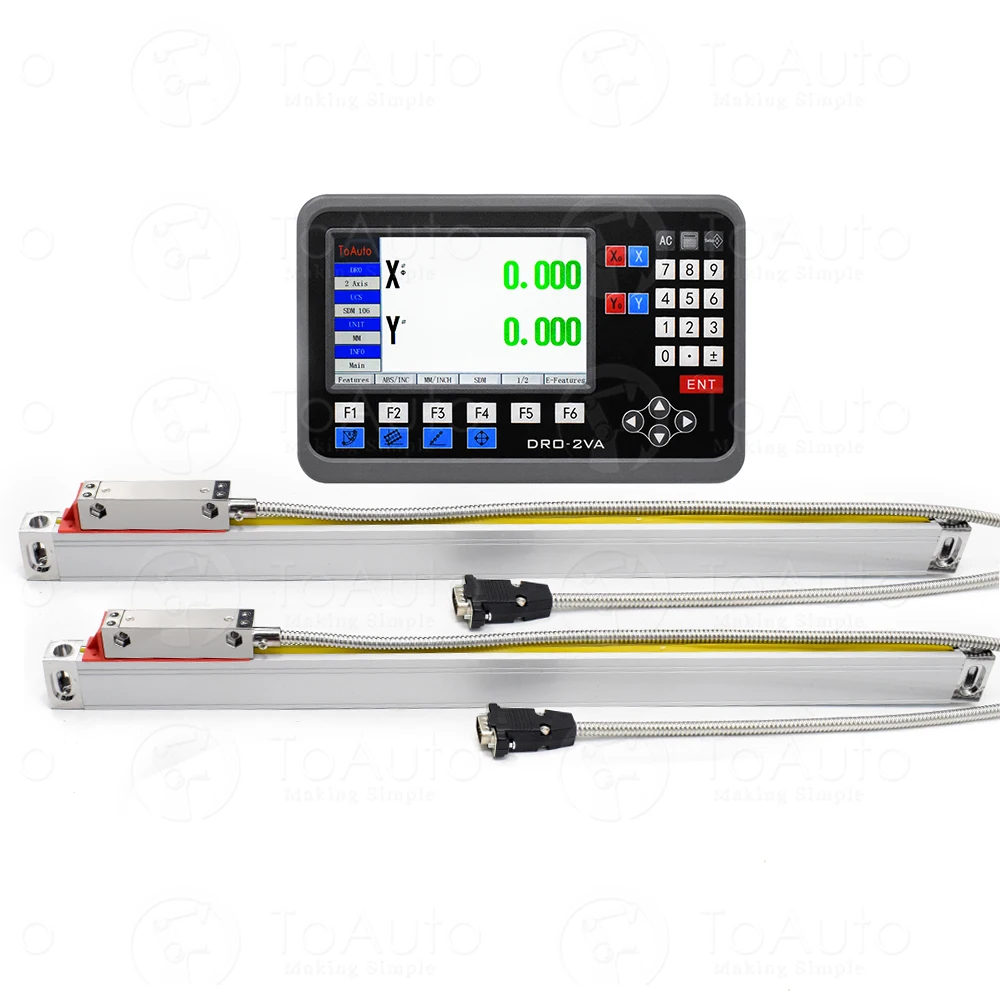

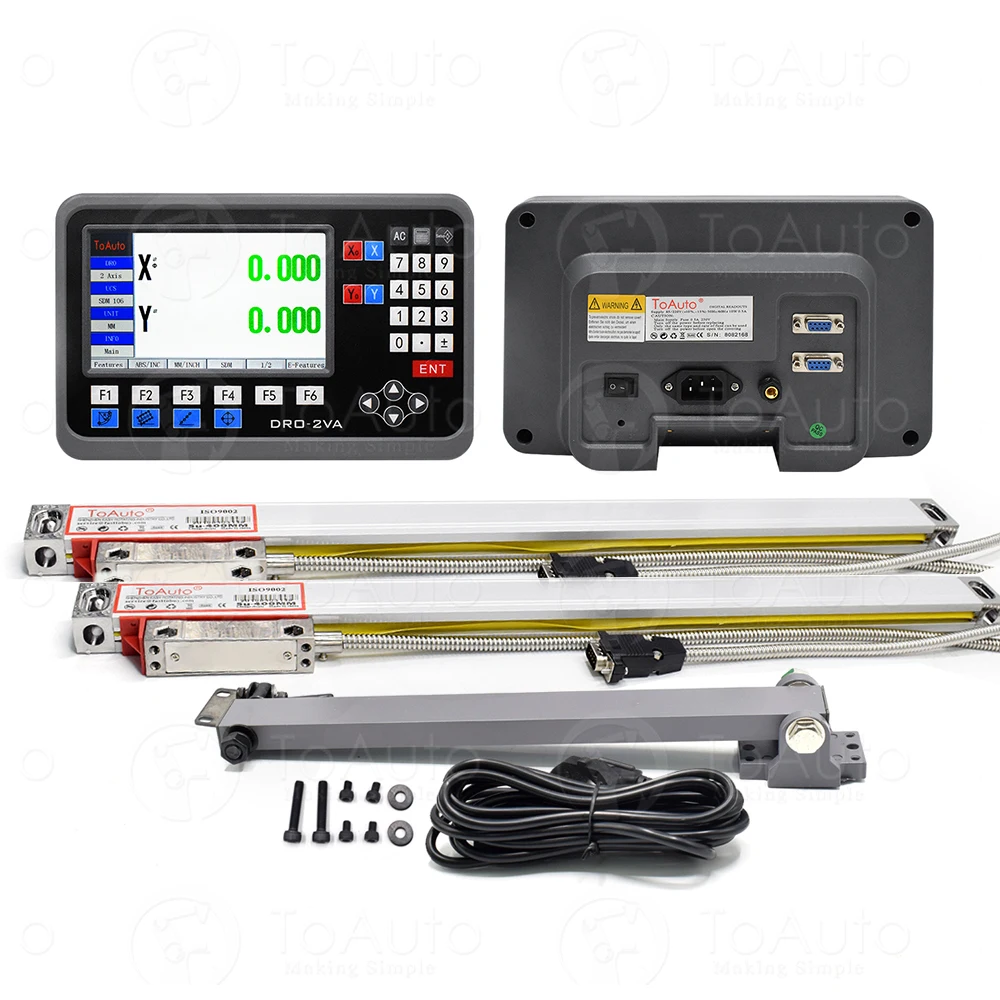

Model Number 2 Axis DRO-LCD 5um + Linear Scale
feature 1 Digital Readout
feature 2 linear scales
feature 3 Encoder Sensor For Milling Lathe
feature 4 2 Axis 1μm / 5μm
feature 5 DRO / Linear Scale
feature 6 2 Axis DRO
feature 7 2Axis LCD Digital Readout
Packing Size 35x15.5x22.5cm
Power consumption 15VA
Supply Voltage range AC86V~240V; 50HZ~60HZ

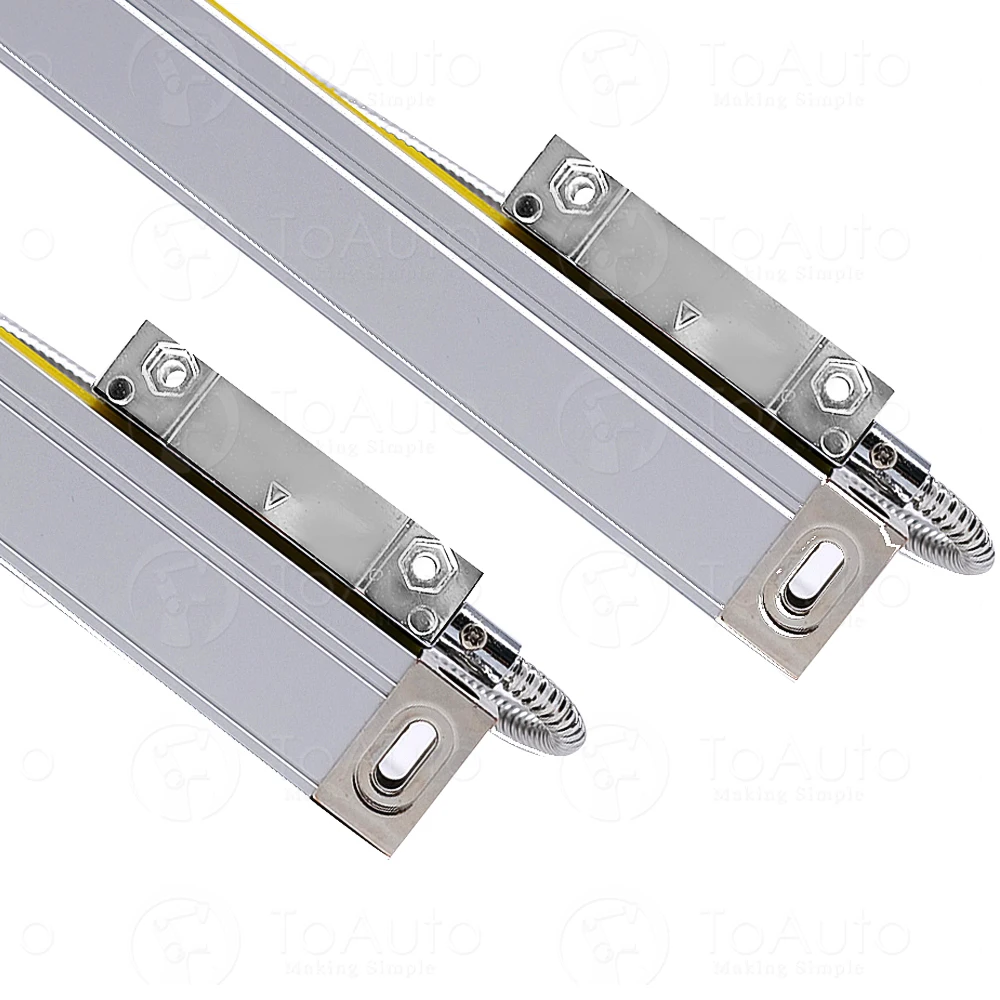

feature 8 Glass Linear Scale Encoder Sensor
Color
Size
5micron
1micron

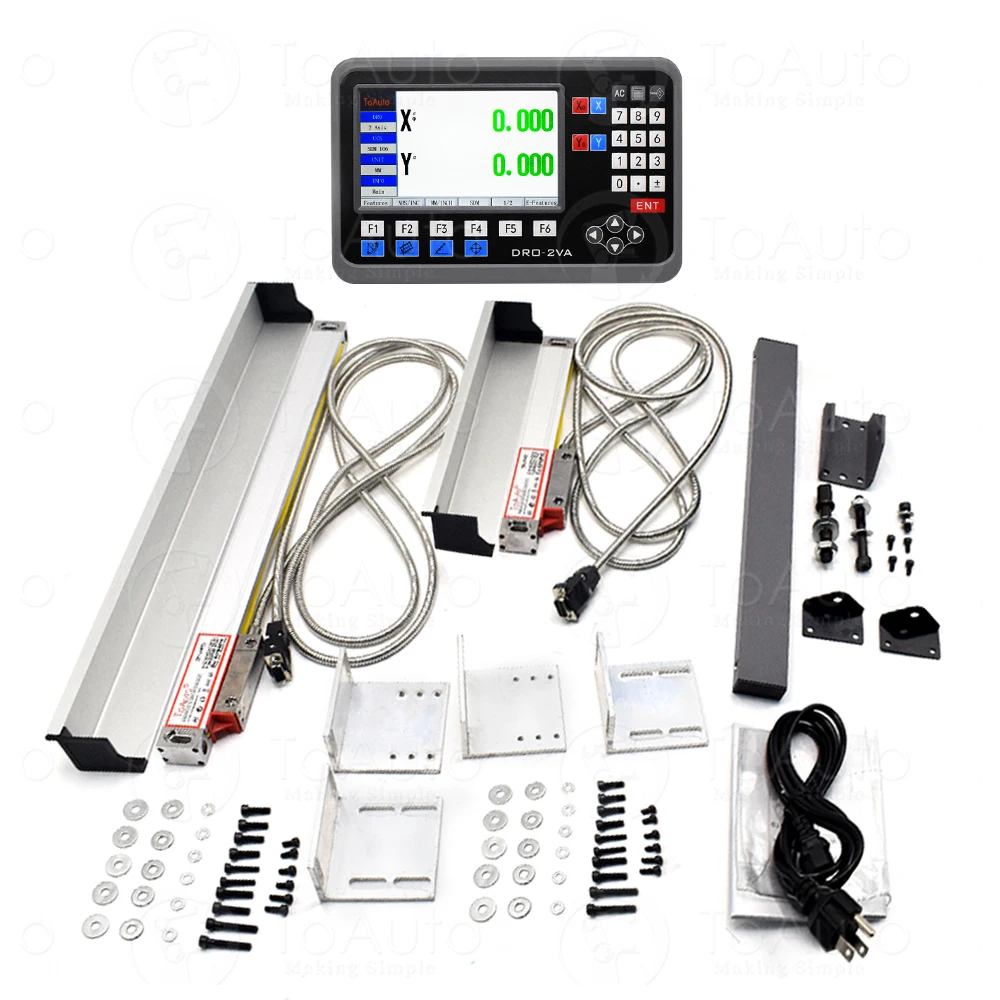

Please note that the scale in the options refers meads a single scale, excluding DRO, If you need a DRO + scale set, please add the DRO and the scales to the shopping cart and combine payment.
PS. The lengths of all optional scales, such as 100mm, 150mm, refer to the effective stroke.(The total length of the it is 140 mm longer than the real travel length ,The extra 140 mm length will not participate in the measurement) For light delete ruler, we have more lengths to choose from, please click here，stroke more than 1000mm, please contact us for a quote!1. Basic functionReset Input preset data for an axis MM/inch Mode Absolute / relative / user coordinate system
Automatically divide by 2 SDM General Clearance Screen saver function Power-down memory function
Set the mechanical zero of the sensor Non-linear compensation Linear compensation
Lathe diameter radius switch Anti-shake switch Coordinate joint switch Brightness adjustment

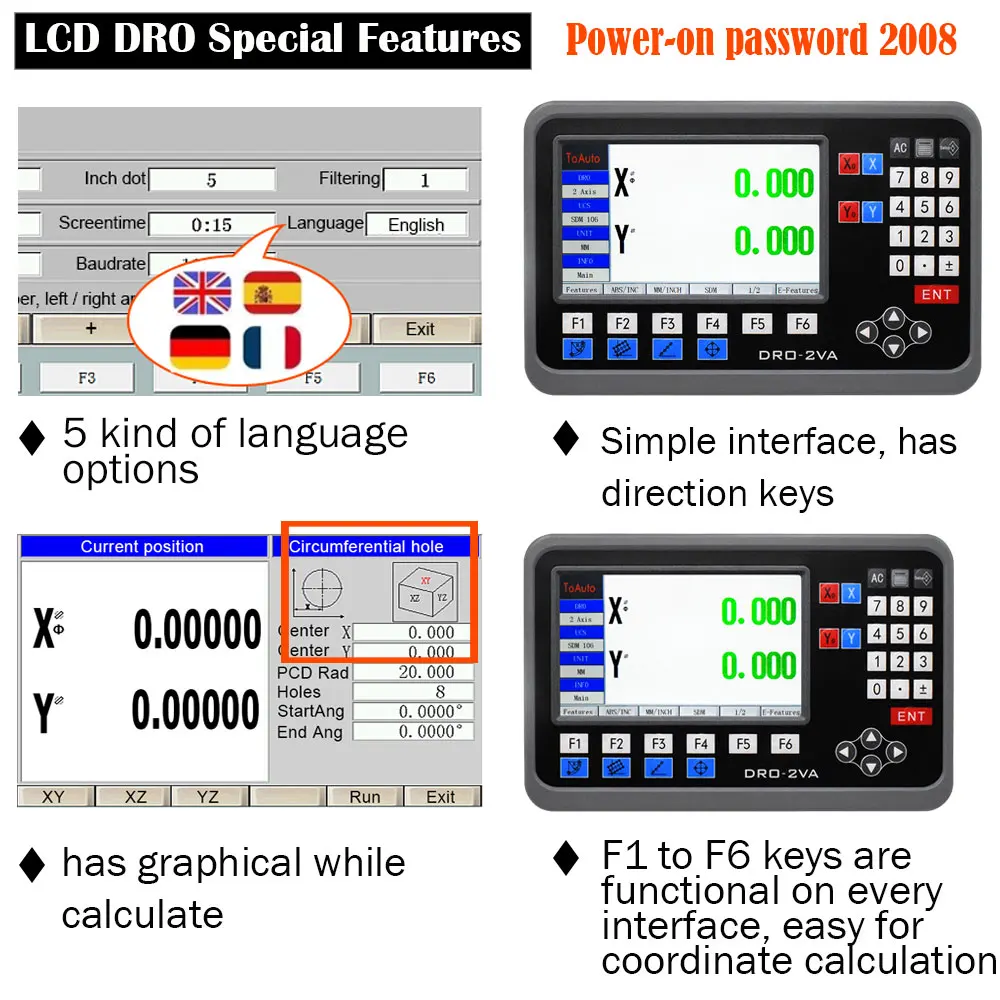

2.special functionsCircumferential hole, Linear hole,
Smooth arc, Simple arc, Bevel machining,
Network hole, Inner machining, Machining function of EDM
3. Specifications of digital readoutModel

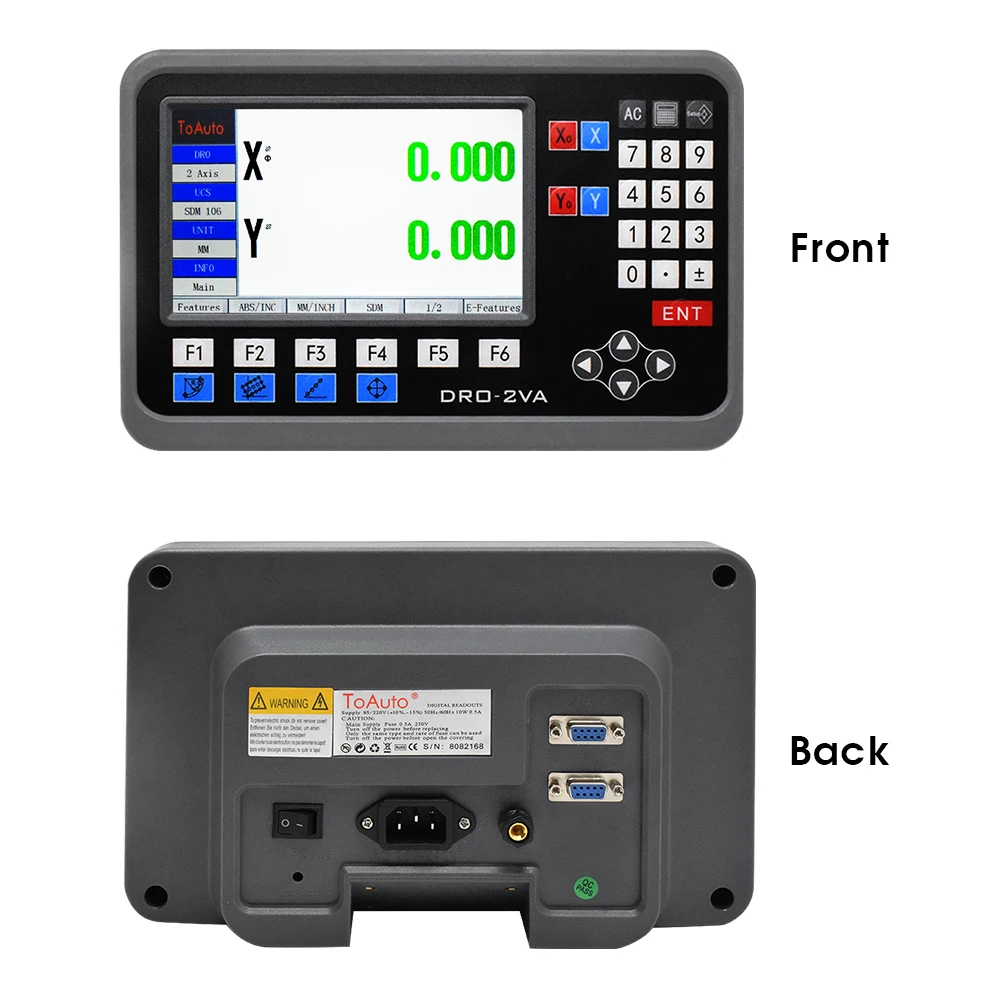

2Axis LCD Digital Readout
Supply Voltage range
AC86V~240V; 50HZ~60HZ
Power consumption
15VA
Operating temperature
0 ~ 50 degree centigrade
Storage temperature
-20~65 degree centigrade
Relative humidity
Less than 90%
Readout allowable input signal

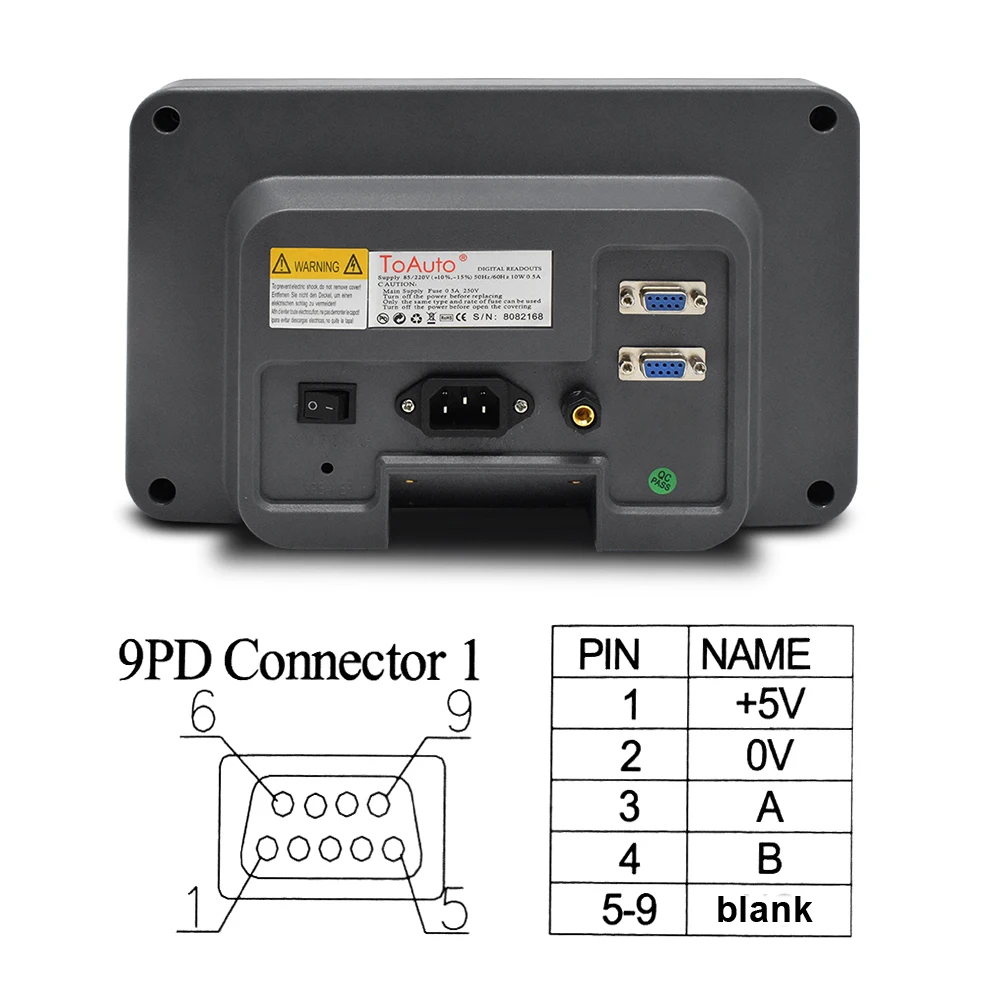

RS 485
Allowable input signal frequency
Less than 5M Hz
Max resolution of digital display length
5µm / 1μm
Weight
1.55kg
Packing Size
35x15.5x22.5cm
Display Advantage
Having a good capacity of resisting disturbance ,durable keyboard, easy to change
5. Application areaThank you for purchasing series digital readouts, The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.
