Parts & Accessories>>>Toys & Hobbies
Origin CN(Origin)
Material plastic
Plastic Type ABS
Recommend Age 12+y
RC Parts & Accs Receivers
Quantity 1
Technical parameters Value 2
Remote Control Peripherals/Devices Receivers
For Vehicle Type Cars
Size 26*22mm
Model Number R324
Warning Small parts included, keep away from kids under 3 years old.
Weight 6.7g
Operating Voltage 3.7V-8.4V
Compatible Transmitters:
Futaba 7PX 4PX 7XC 4GRS 4PV 4PM 4PLS Transmitter(T-FHSS)
Features:
1. Futaba 2.4GHz T-FHSS compatible
2. High performance CPU enhance precision control feeling
3. 4 channel support

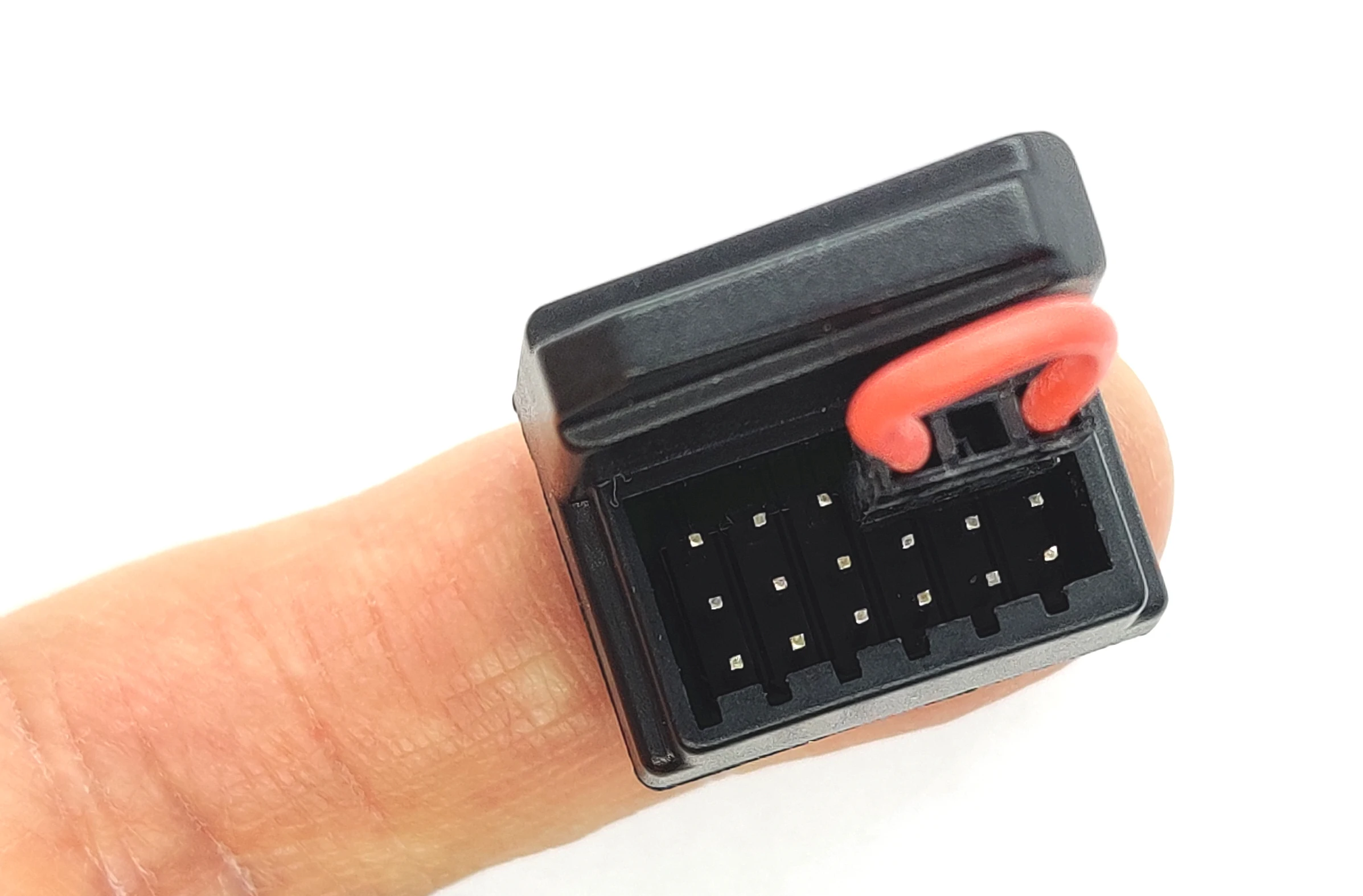

4. Micro size (25.5x22x17.3 mm)
5. Ideal for any micro RC racing chassis
6. Added failsafe function
7. Operating Voltage 3.7V - 8.4V:
8. Weight: 5g
Package Included:
1 x Receiver
Link Procedure:
Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

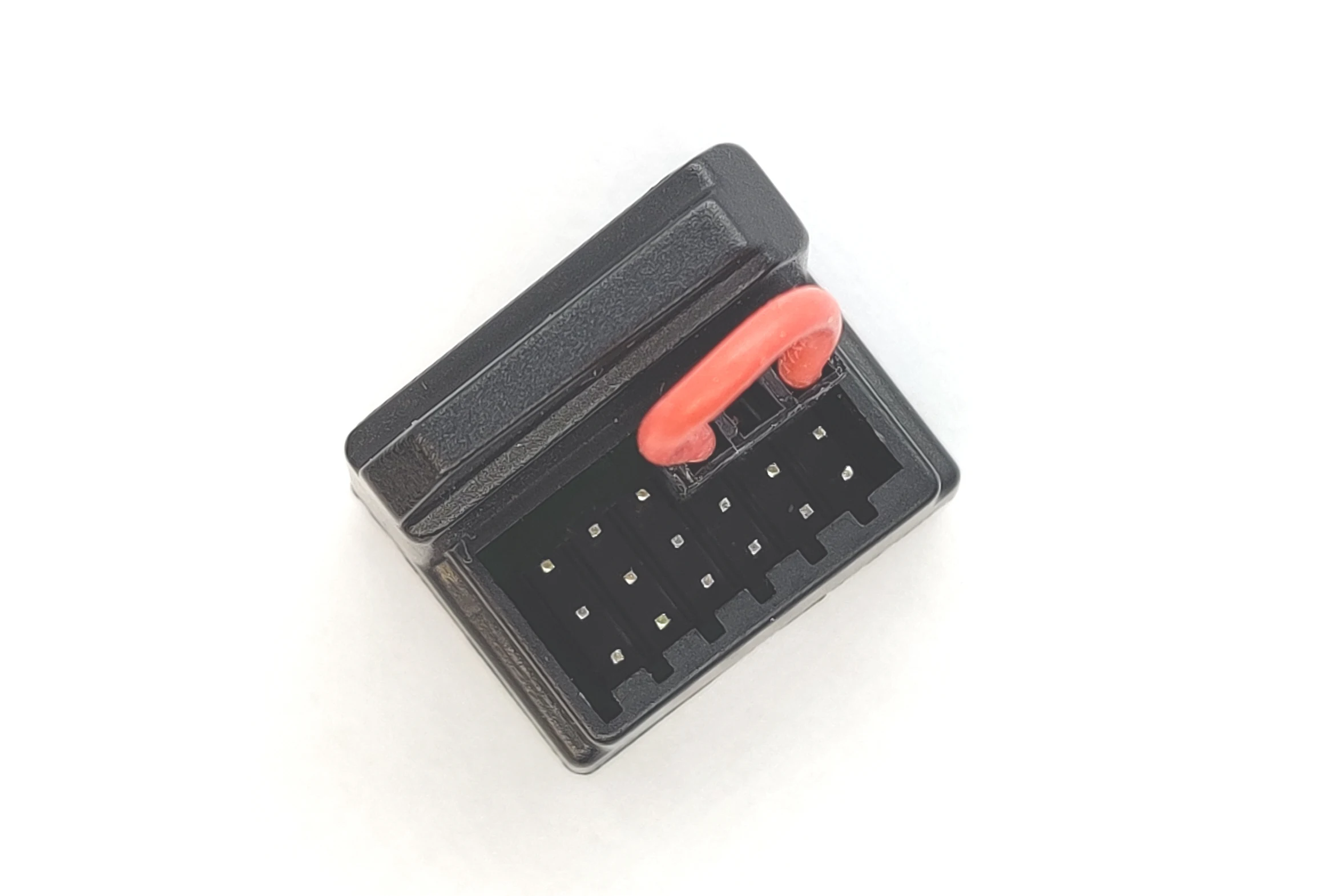

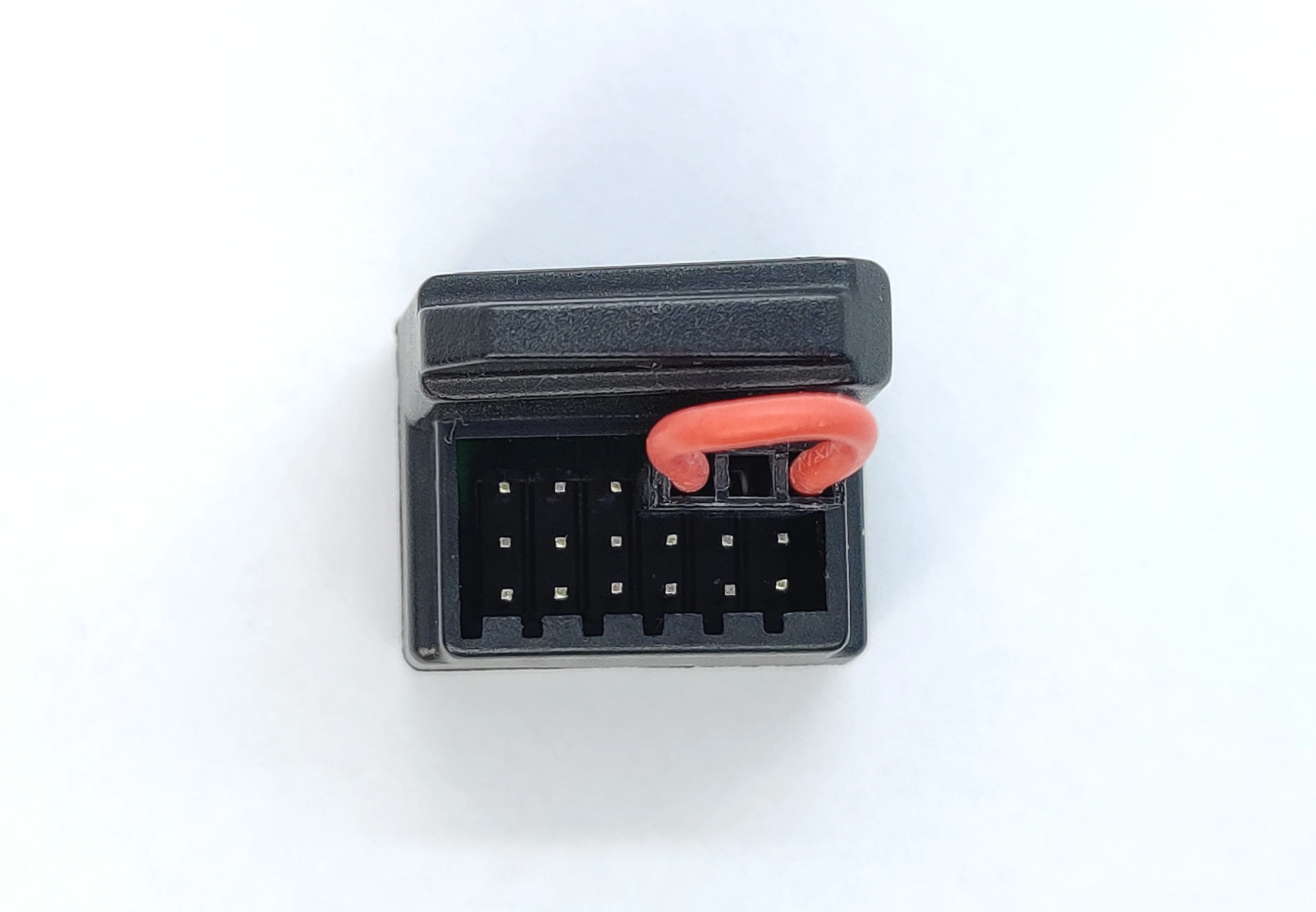

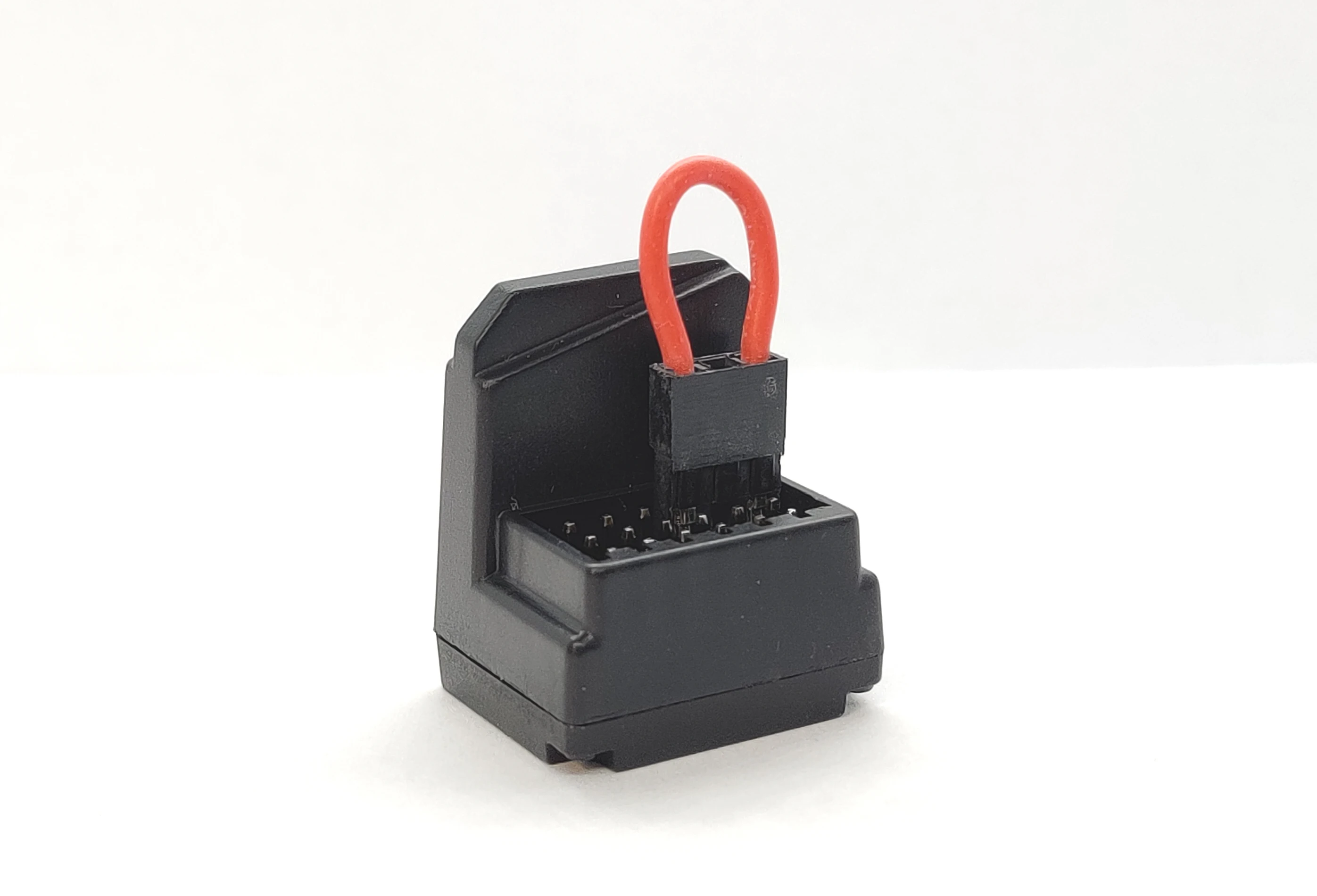

1-Pull out the bind cable. Make sure the bind cable is not on the receiver.
2-Place the transmitter and the receiver close to each other within half (0.5) meter.
3-Place the transmitter into the linking mode and turn on the receiver

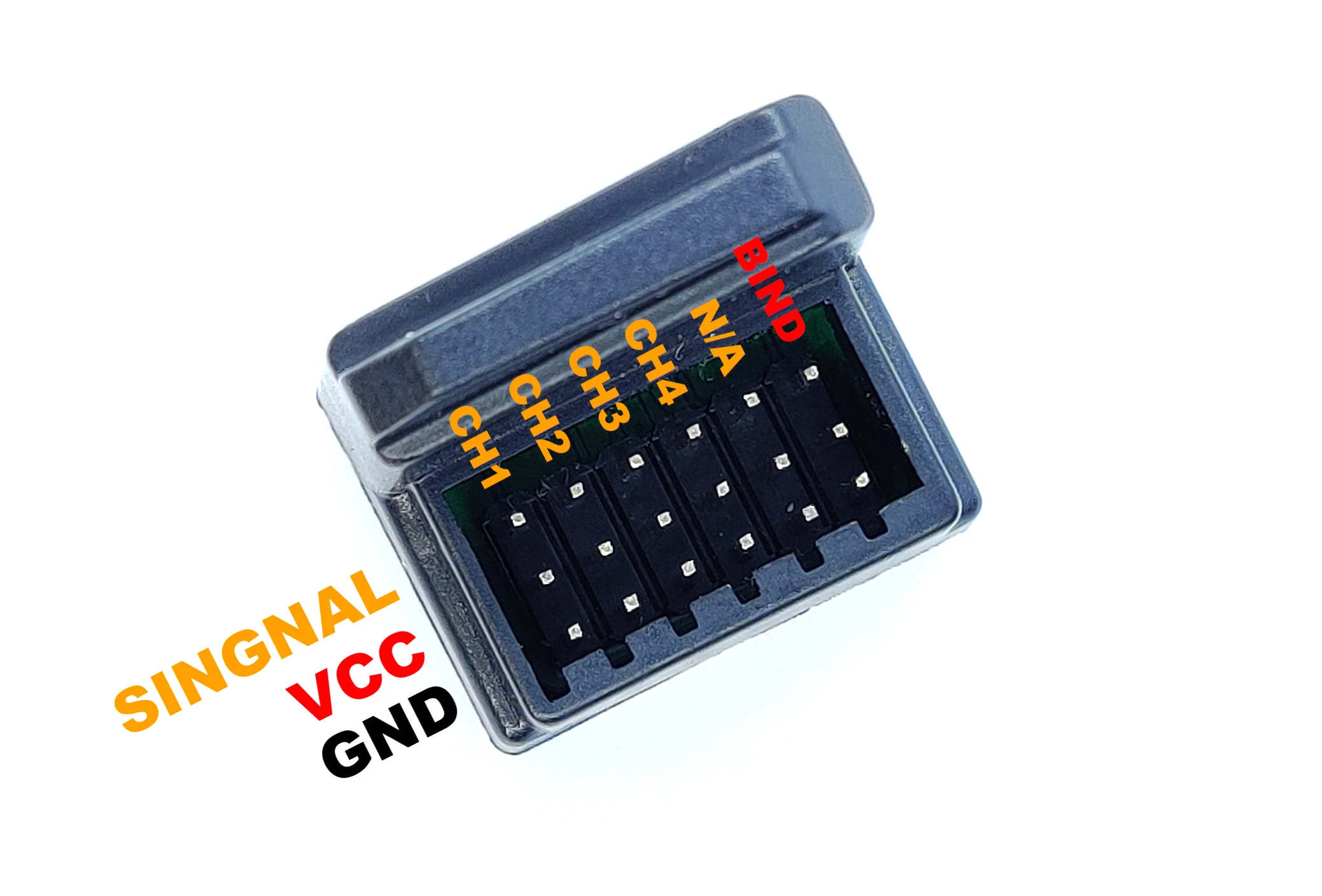

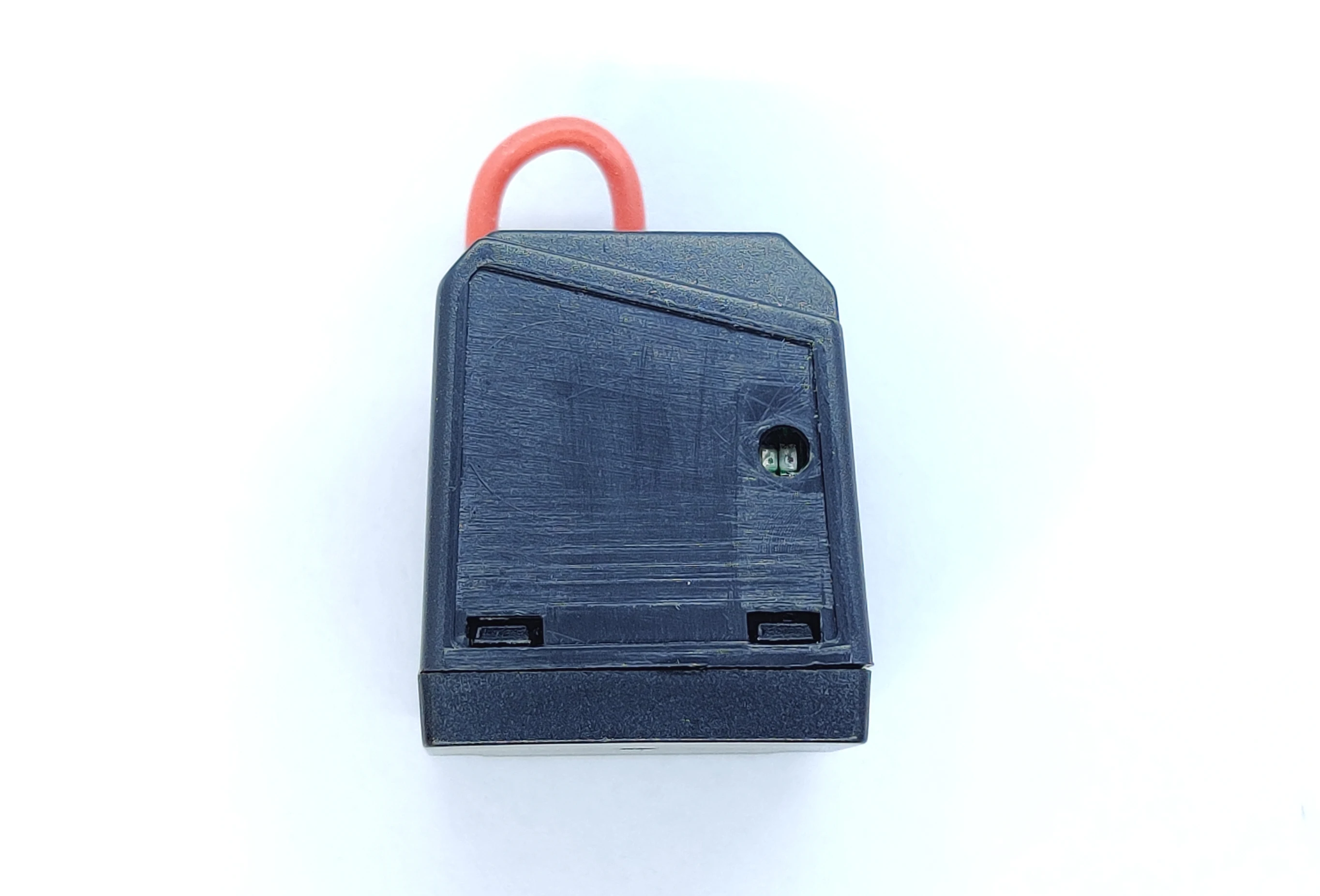

3-During countdown, plug in the bind cable between 'BIND' and 'CH4' for approximately 2 to 3 seconds and then unplug the bind cable. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.
Normal mode / High Speed mode:
The " Normal mode " accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter manual in order to have a pleasant running experience.
,
Description:

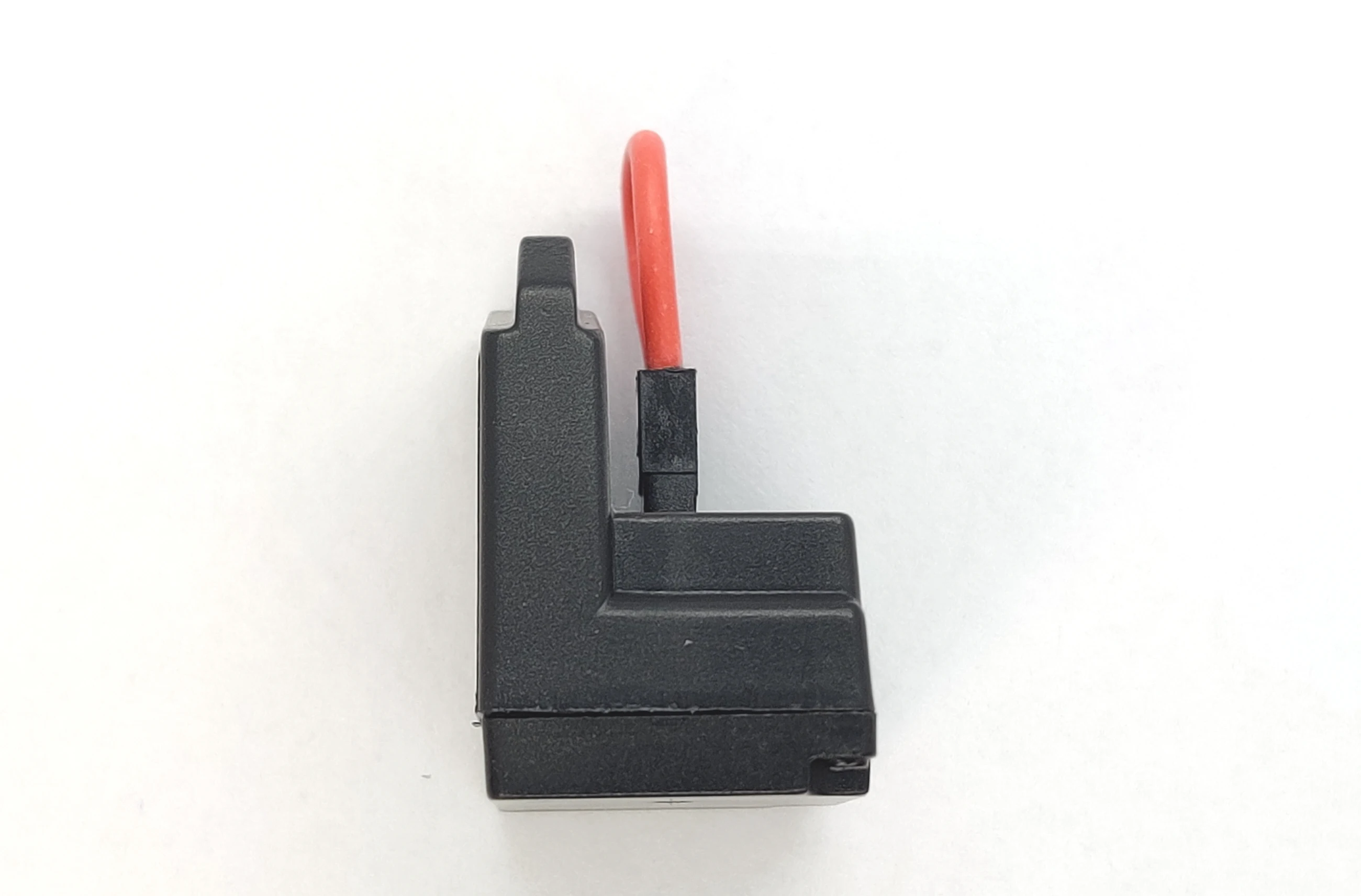

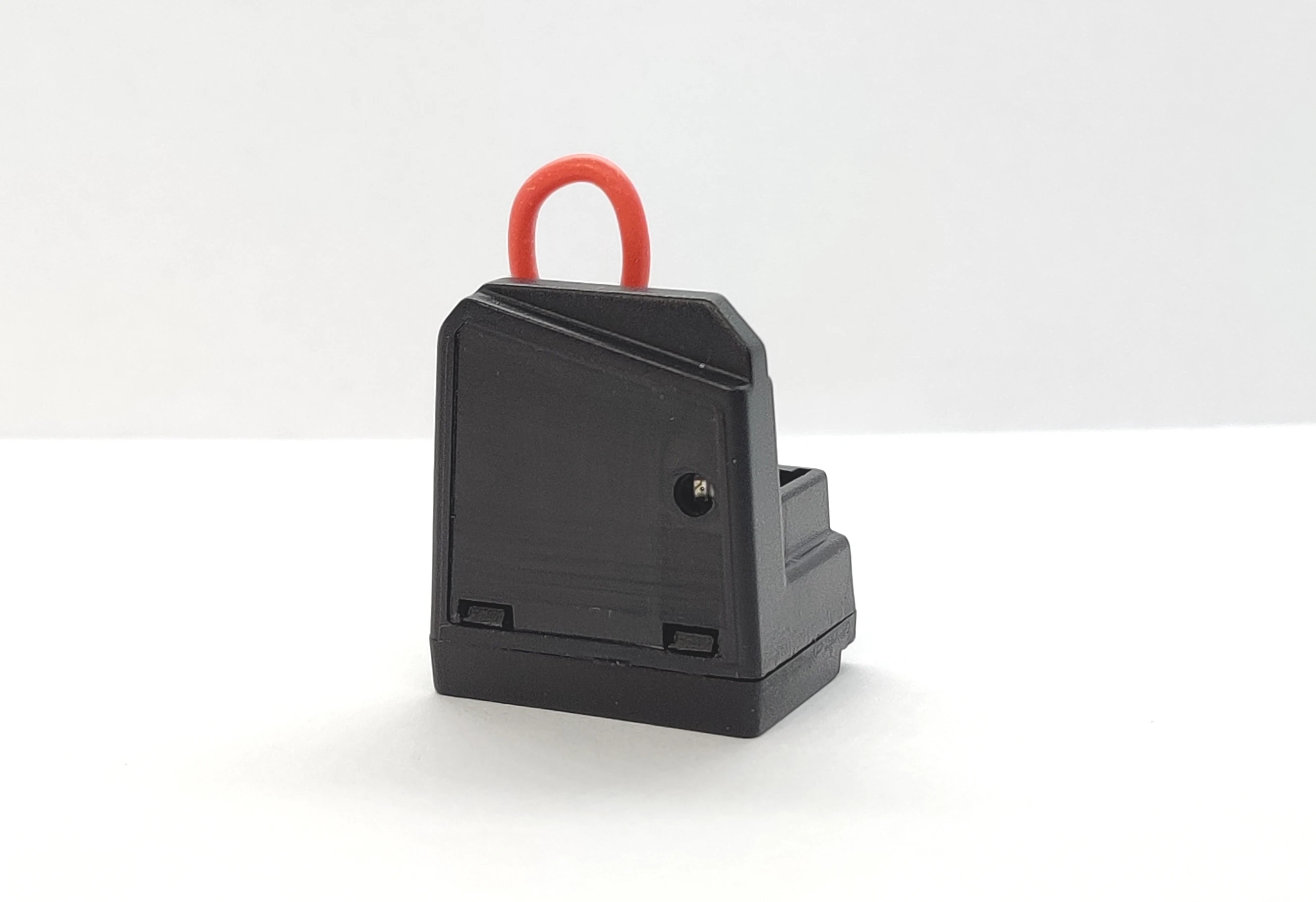

This RC receiver unit is Futaba T-FHSS compatible. It offers full 4-channel support in ultra-light weight and small size.
Features:
1. Futaba 2.4GHz T-FHSS compatible
2. High performance CPU enhance precision control feeling
3. 4 channel support
4. Micro size (25.5x22x17.3 mm)
5. Ideal for any micro RC racing chassis
6. Added failsafe function
7. Operating Voltage 3.7V - 8.4V:
8. Weight: 5g
Compatible Transmitters:
Futaba 7PX 4PX 7XC 4GRS 4PV 4PM 4PLS Transmitter(T-FHSS)
Package Included:
1 x Receiver
Link Procedure:
Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.
1-Pull out the bind cable. Make sure the bind cable is not on the receiver.
2-Place the transmitter and the receiver close to each other within half (0.5) meter.
3-Place the transmitter into the linking mode and turn on the receiver
3-During countdown, plug in the bind cable between 'BIND' and 'CH4' for approximately 2 to 3 seconds and then unplug the bind cable. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.
Normal mode / High Speed mode:
The " Normal mode " accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter manual in order to have a pleasant running experience.
