Demo Board Accessories>>>Computer & Office
Brand Name keyestudio
Accessory Type Tank Robot
Compatible With Arduino
Origin CN(Origin)
Product model KS0526
Working voltage 5v
Input voltage 7-12V
Maximum output current 2A
Maximum power dissipation 25W (T=75℃)
Motor speed 5V 200 rpm/min
Motor drive mode dual H bridge drive(L298P)
Ultrasonic induction angle <15 degrees
Ultrasonic detection distance 2cm-300cm
Infrared remote control distance 10 meters (measured)
BT remote control distance 30 meters (measured)
Battery type 18650 (without battery)
Note:this kit no battery.
Introduction
This STEM educational V3.0 tank robot is newly upgraded, adding an line-tracking and a fire- extinguishing function. It vigorously enhances the relationship between kids and parents, and sparks children’s imagination through programming and coding.

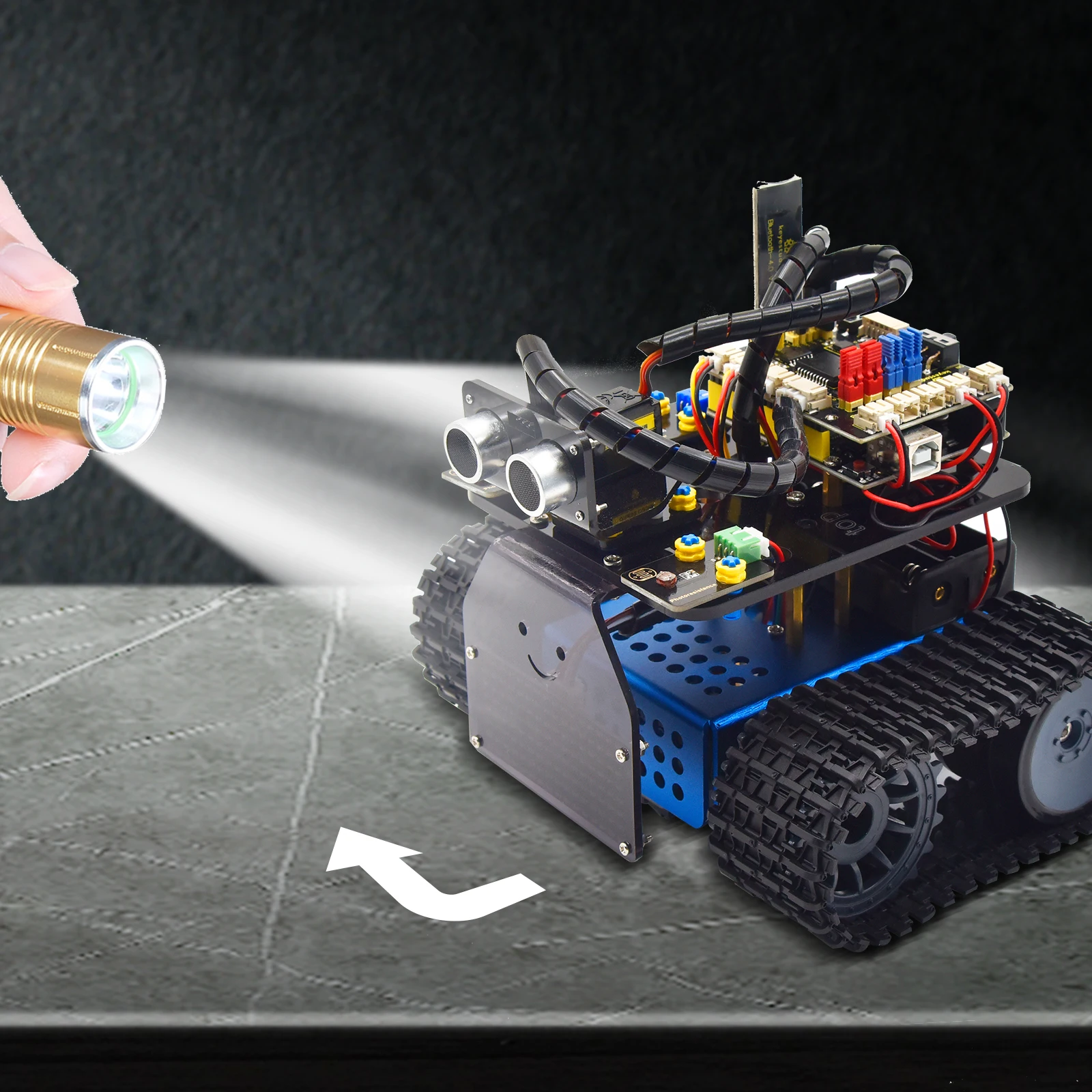

In the course of assembly process, you can see its multiple functions like light following, line tracking, IR and BT remote control, speed adjustment and so on. Additionally, there are some small parts that can help you assemble the robot car.

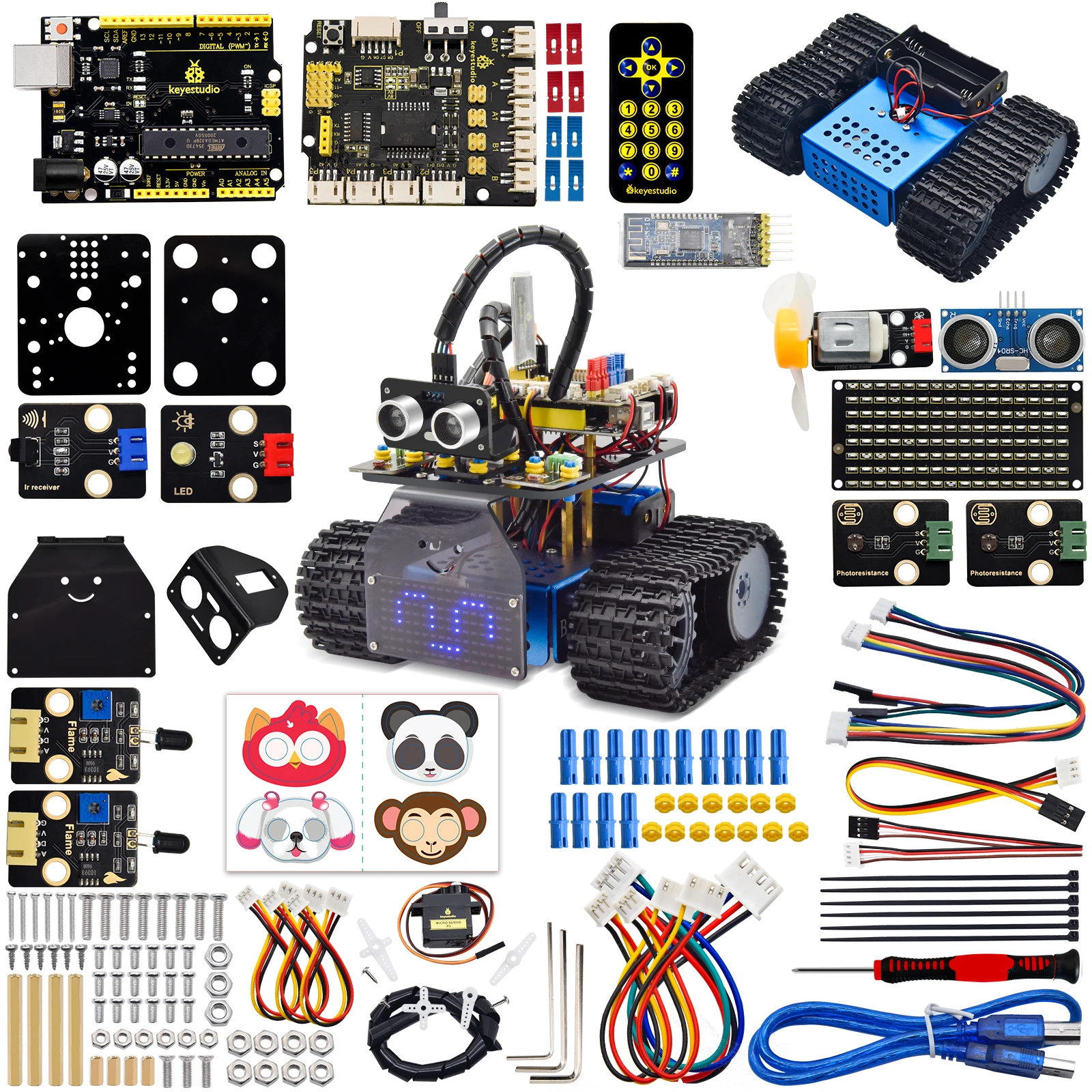

There are basic sensors and modules, such as a flame sensor, a BT sensor, an obstacle avoidance sensor, an line tracking sensor and an ultrasonic sensor are included.
The two tutorials for C language and Arduino are also suitable for the enthusiasts at different ages.
It is really the best choice for you.
Features

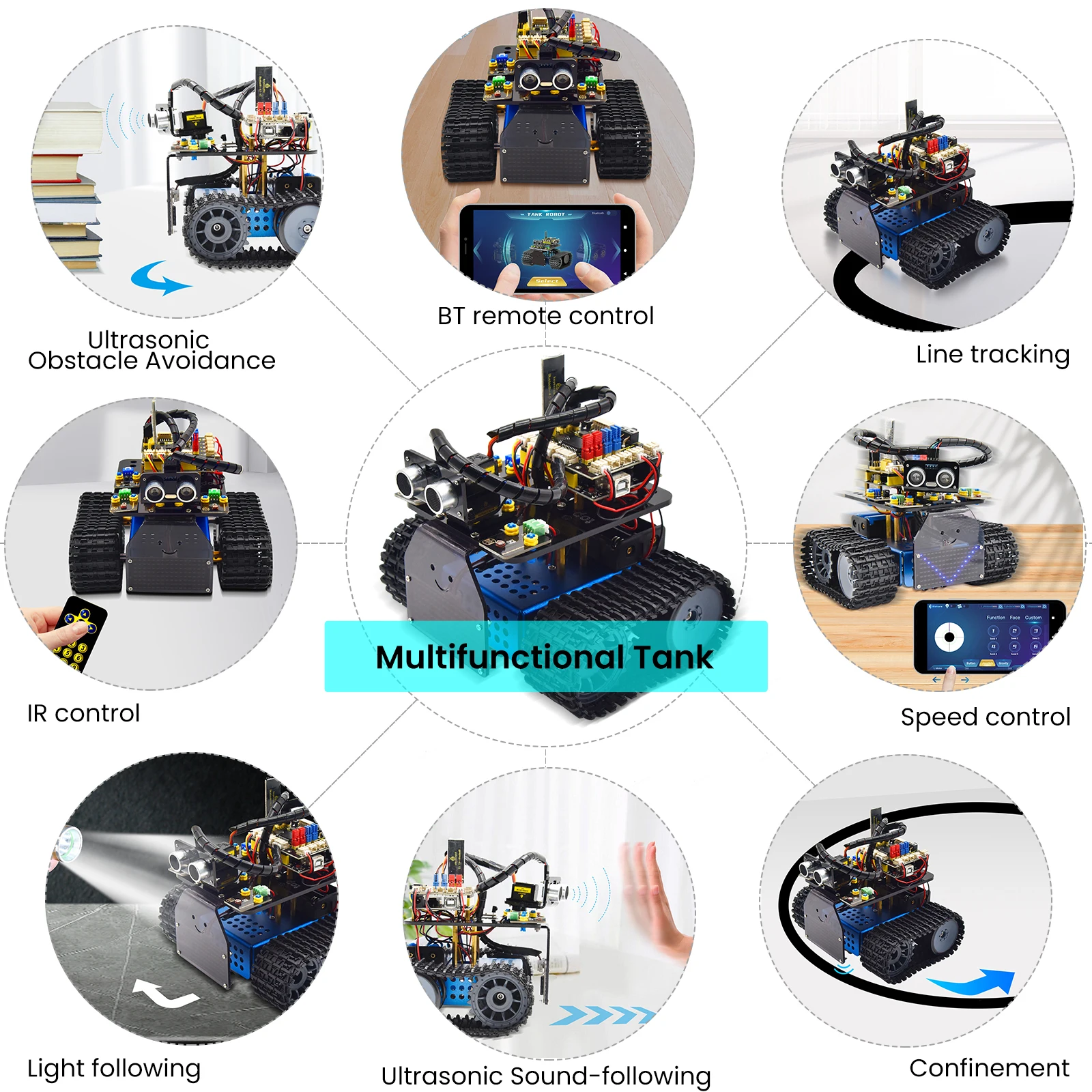

1.Multiple functions：Confinement, line tracking, fire extingushing, light following, IR and BT remote control, speed control and so on.
2. Easy to build: assemble the robot with tiny parts.

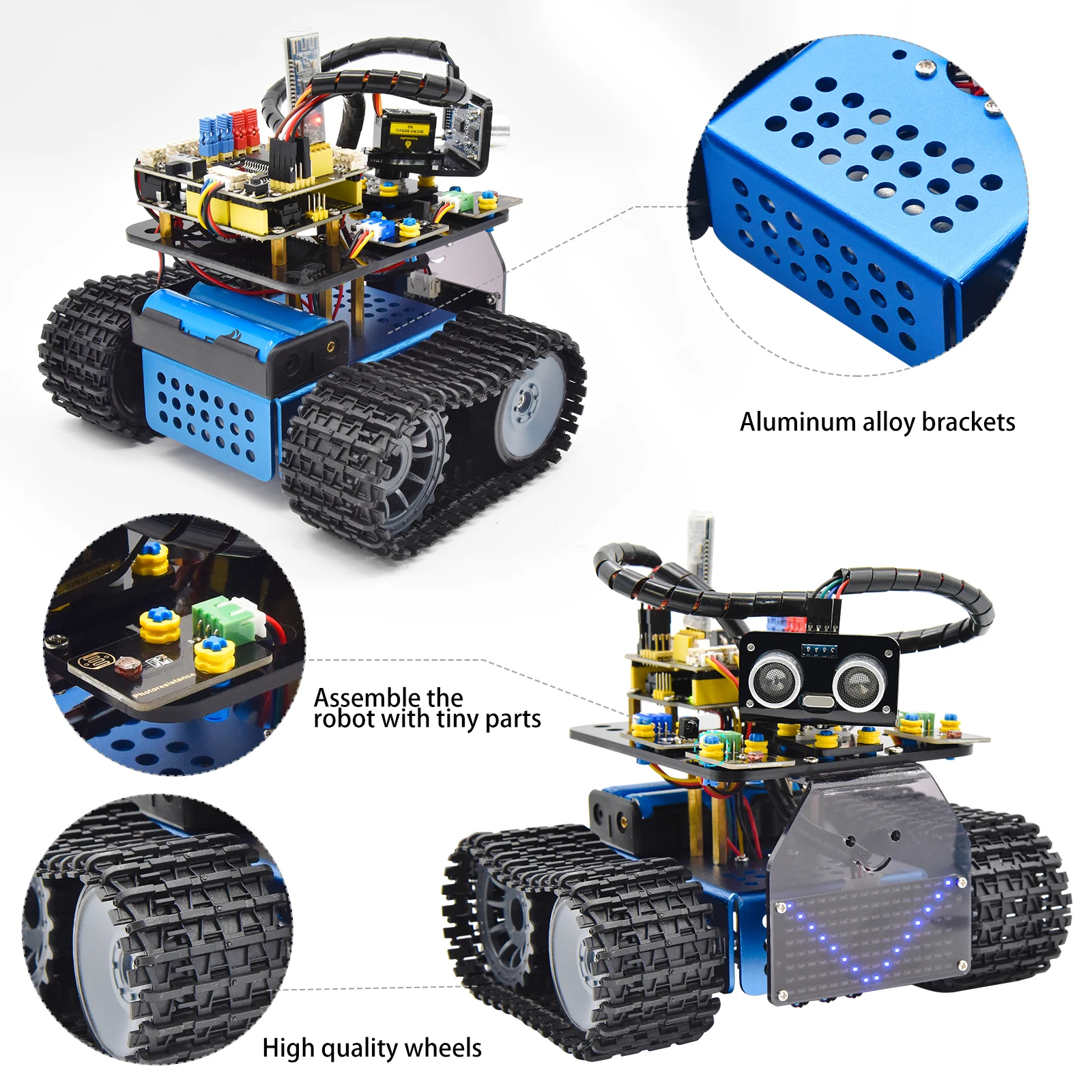

3. High tenacity: Aluminum alloy brackets, metal motors, high quality wheels.
4. High extension: connect many sensors and modules through motor driver shield and sensor shield.

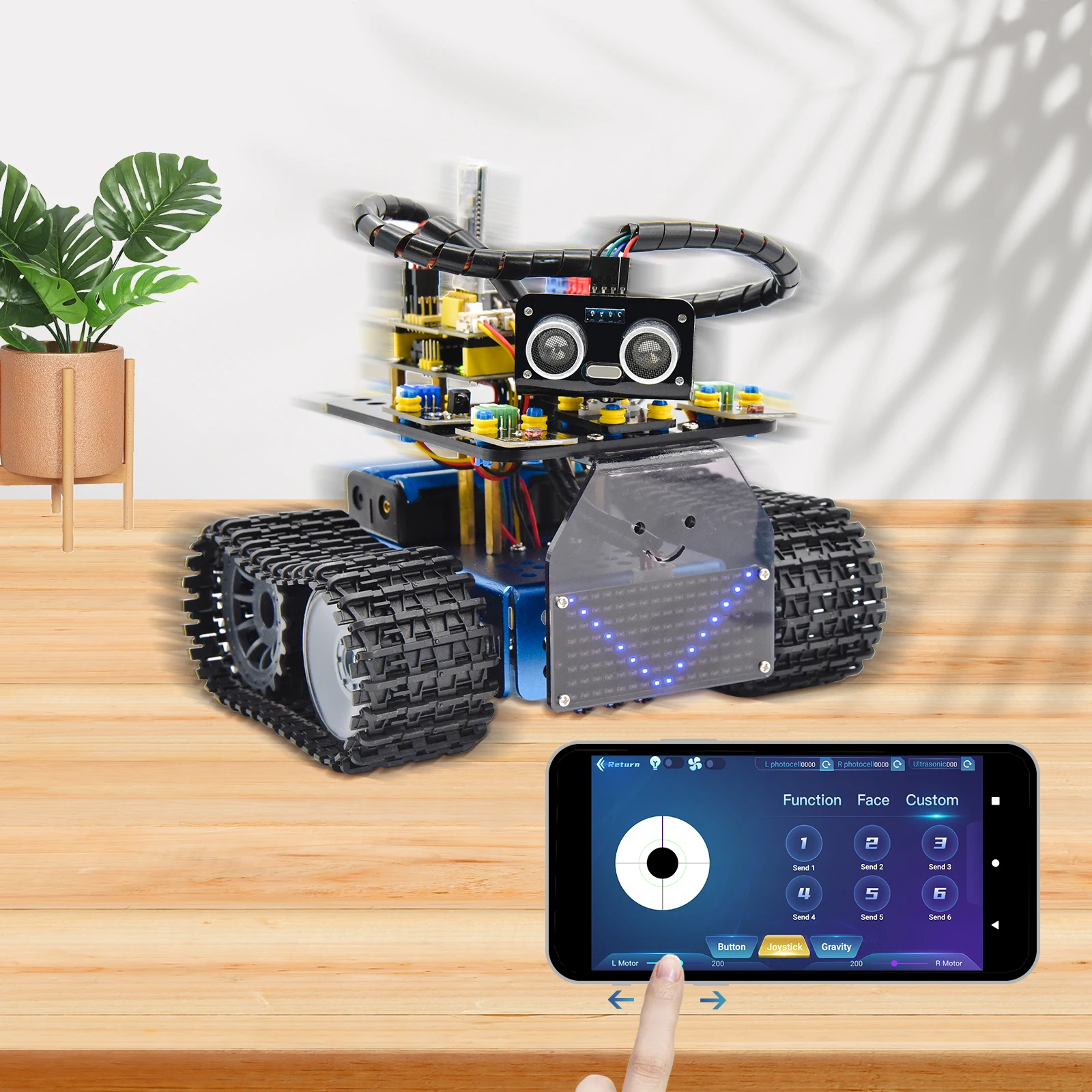

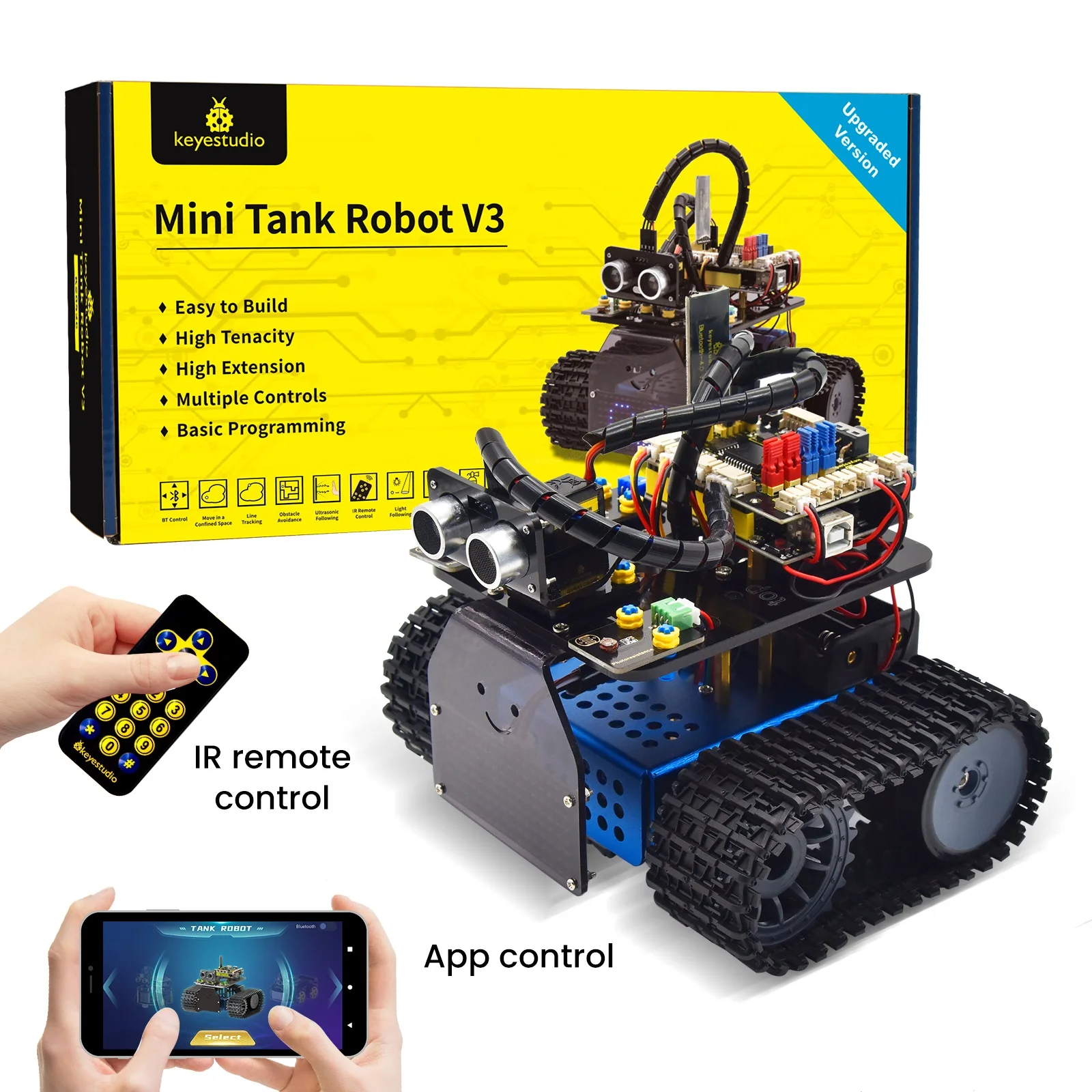

5. Multiple controls: IR remote control, App control(iOS and Android system).
6.Basic programming：C language code of Arduino IDE.

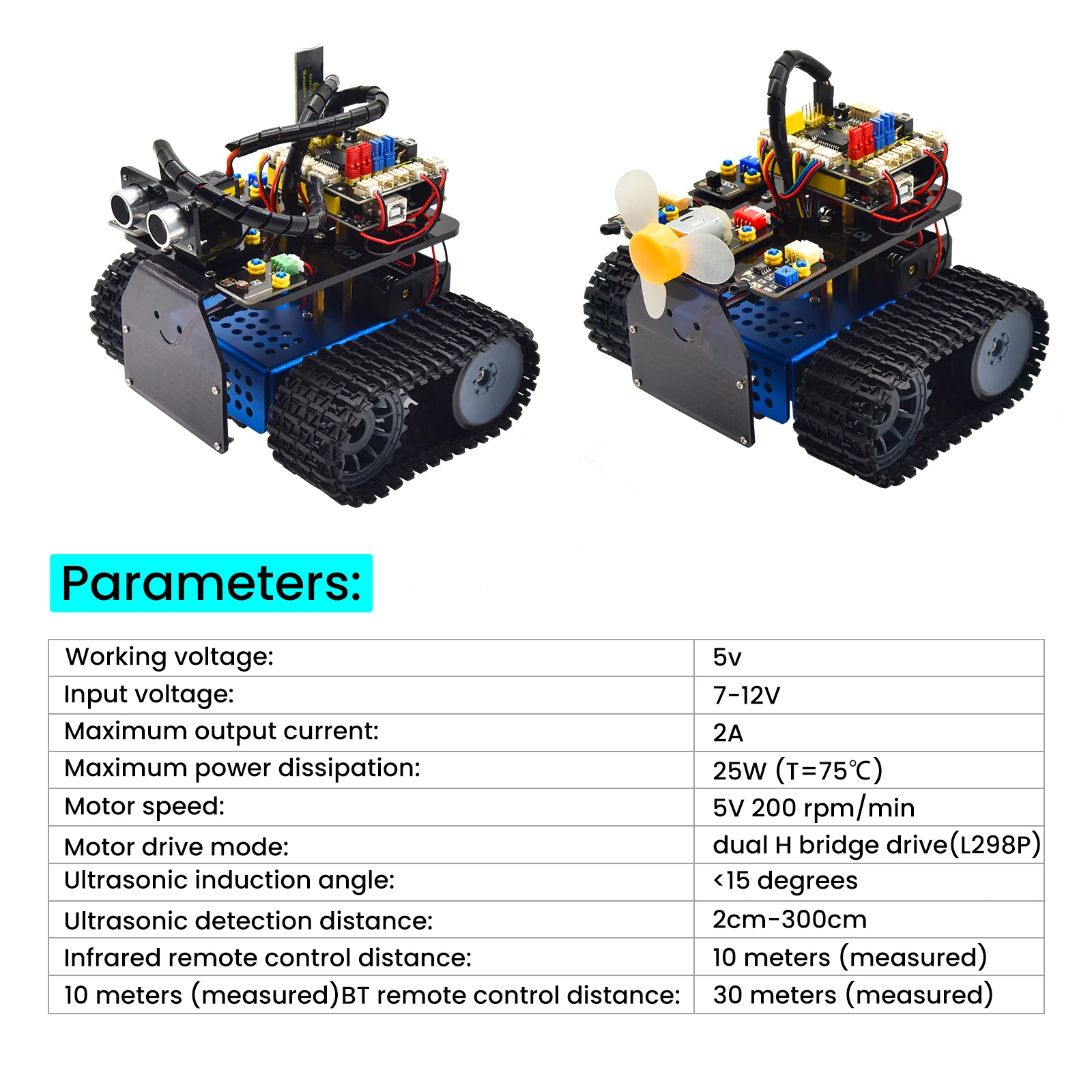

Parameters
Working voltage: 5v
Input voltage: 7-12V
Maximum output current: 2A
Maximum power dissipation: 25W (T=75℃)
Motor speed: 5V 200 rpm/min
Motor drive mode: dual H bridge drive(L298P)
Ultrasonic induction angle: <15 degrees
Ultrasonic detection distance: 2cm-300cm
Infrared remote control distance: 10 meters (measured)
BT remote control distance: 30 meters (measured)
Resources : https://fs.keyestudio.com/KS0526
Note:V2 and V3 difference display
