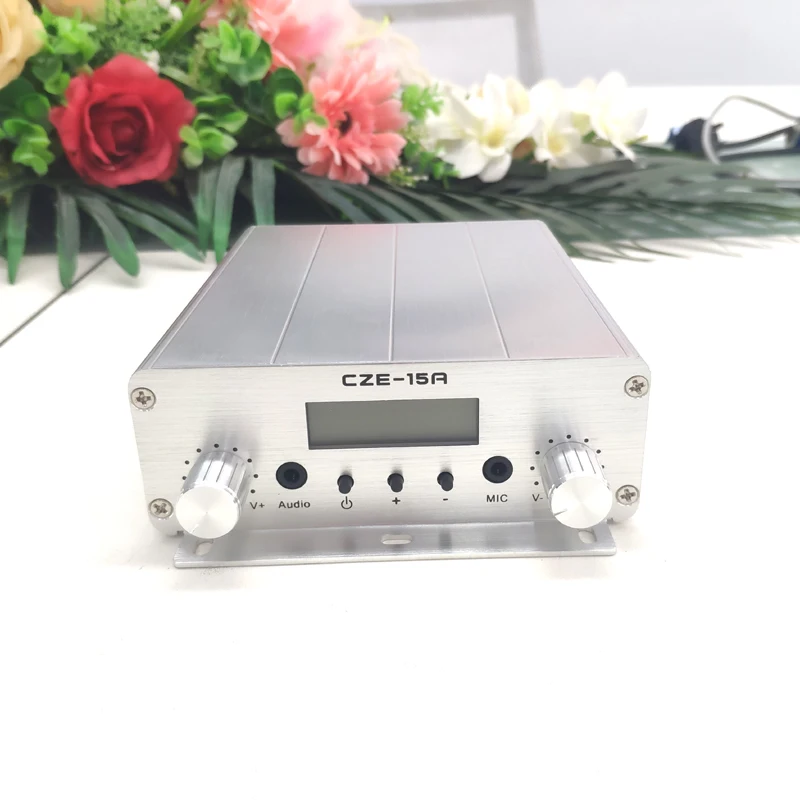

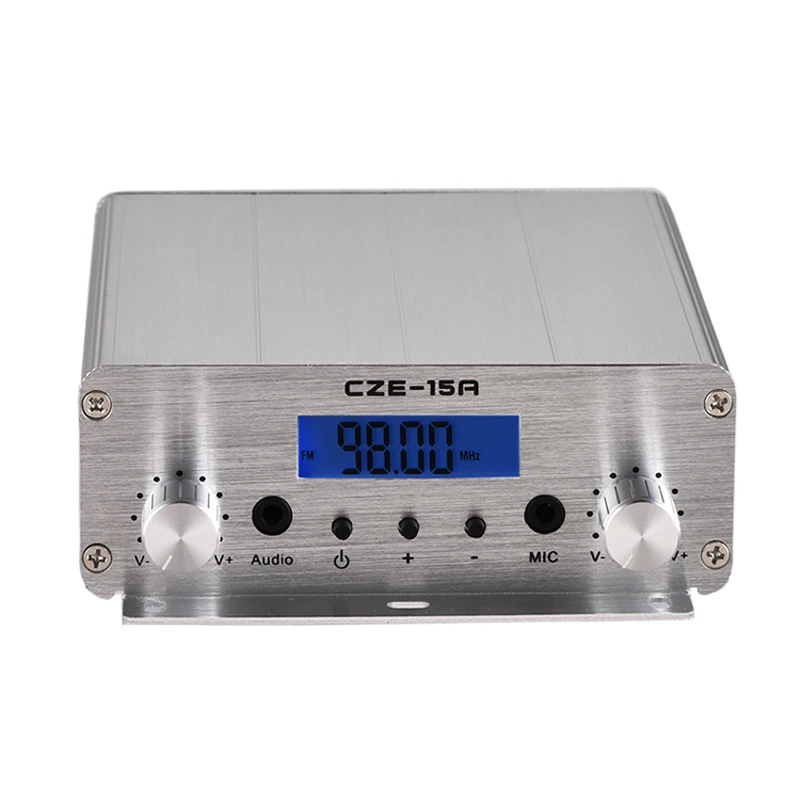

10w 15W FM Radio Broadcast Transmitter + GP 1/4 wave antenna kit for for Church, Car, Home, Conference

TV Receivers>>>Consumer Electronics

Brand Name CZERF

Certification CE

Origin CN(Origin)

Package Yes

Model Number CZE-15A

Voltage 12V

Keywords 15W FM Radio Broadcast Transmitter

Color Silver

Power 0-15 W adjustable

Ideal Coverage 6km

10w 15W FM Radio Broadcast Transmitter + GP 1/4 wave antenna kit for for Church, Car, Home, Conference

Color

10w 15W FM Radio Broadcast Transmitter + GP 1/4 wave antenna kit for for Church, Car, Home, Conference full set

Technical Parameter:

1.Operating voltage 11~13V DC（Nominal Voltage is 12V）

2.Operating Current <3A

3.Frequency range:87~108Mhz（optional 70~90M）

4.Frequency stabilization ±10PPM

5.Frequency stepping: 100KHZ

6.Environment working temperature-10℃~45℃

7.Output Impedance: 50Ω

8.RF output power range:15 W (0-15 watts adjustable)

9.SNR≤－60dB

10.Audio Distortion: 0.30%

11.Frequency Response: 50HZ~15000HZ

12.Pre-emphasis: 50us

13.Degree of separation≥35 dB

14.Input level ≤15 dB

15.Maximum Deviation ±75KHZ

16.SNR≥60 dB

17.Machine Size: 190mm(L)*125mm(W)*45mm(H)

Product Feature:

*This FM stereo transmitter that can be used for factories, schools, supermarkets, farms, Office space or create your own radio station.

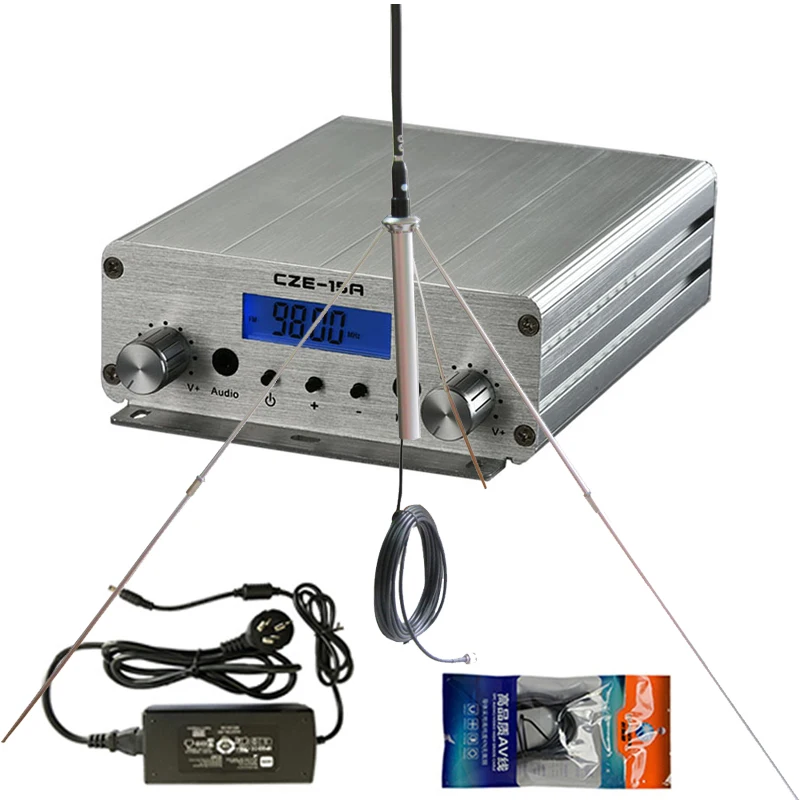

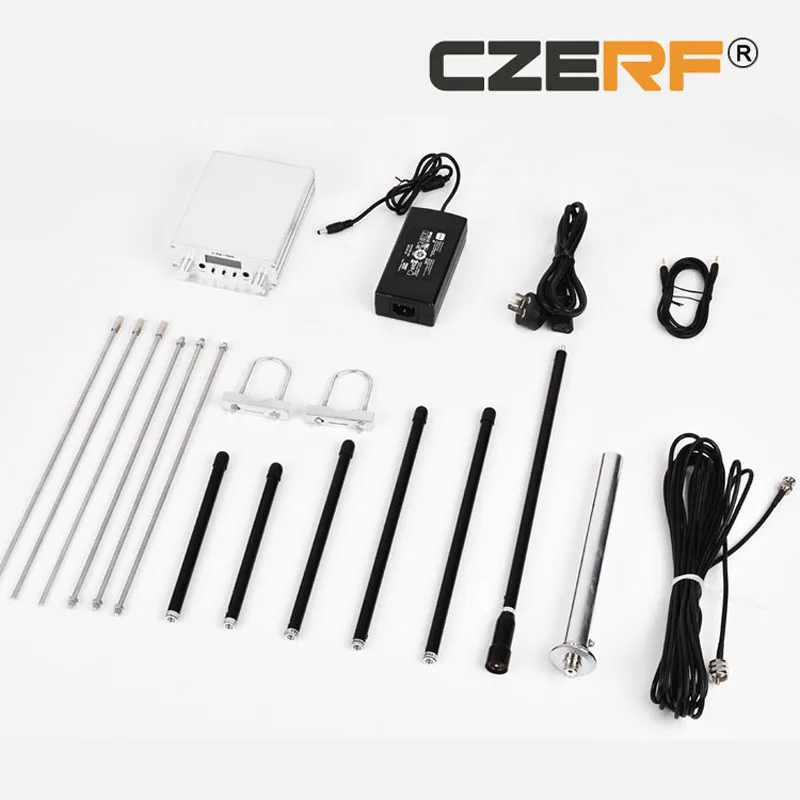

*Equipment using advanced modulation system and built-in PLL frequency, audio pre-emphasis,limiter,and low-pass filter circuit.*The Control circuit board design and amplifier design to reduce noise, so sound quality is even better.*Well-shielded, compact structure, small size, generous appearance, plug and play, very easy to use.Full Set Package includes:1* 15W FM Transmitter1* Audio cable1* 1/4 wave high Aluminum GP antenna Anti-rain1* 8 meters antenna cable
