Model Number 2000W Hybrid Wind Solar Controller
Is Smart Device Yes
is_customized Yes
Application Charger Controller
Application Voltage Controller
Application Wind Controller
Maximum Current 60A
Recommend Solar Panel Power 1000W, 1200W, 1500W
Recommend Wind generator Power 1000W, 1200W, 1500W
Ships From
China
SPAIN
Color
Wind1000WSolar1000W
Wind 800W Solar 800W
Wind 600W Solar 600W
Wind 500W Solar 500W
Wind 300W Solar 300W
Wind1.5KWSolar1.5KW
Wind1.2KWSolar1.2KW
Current
Without WIFI
With WIFI
Rated Voltage
Auto 12V 24V
Auto 12V 24V 48V
Auto 24V 48V
24V

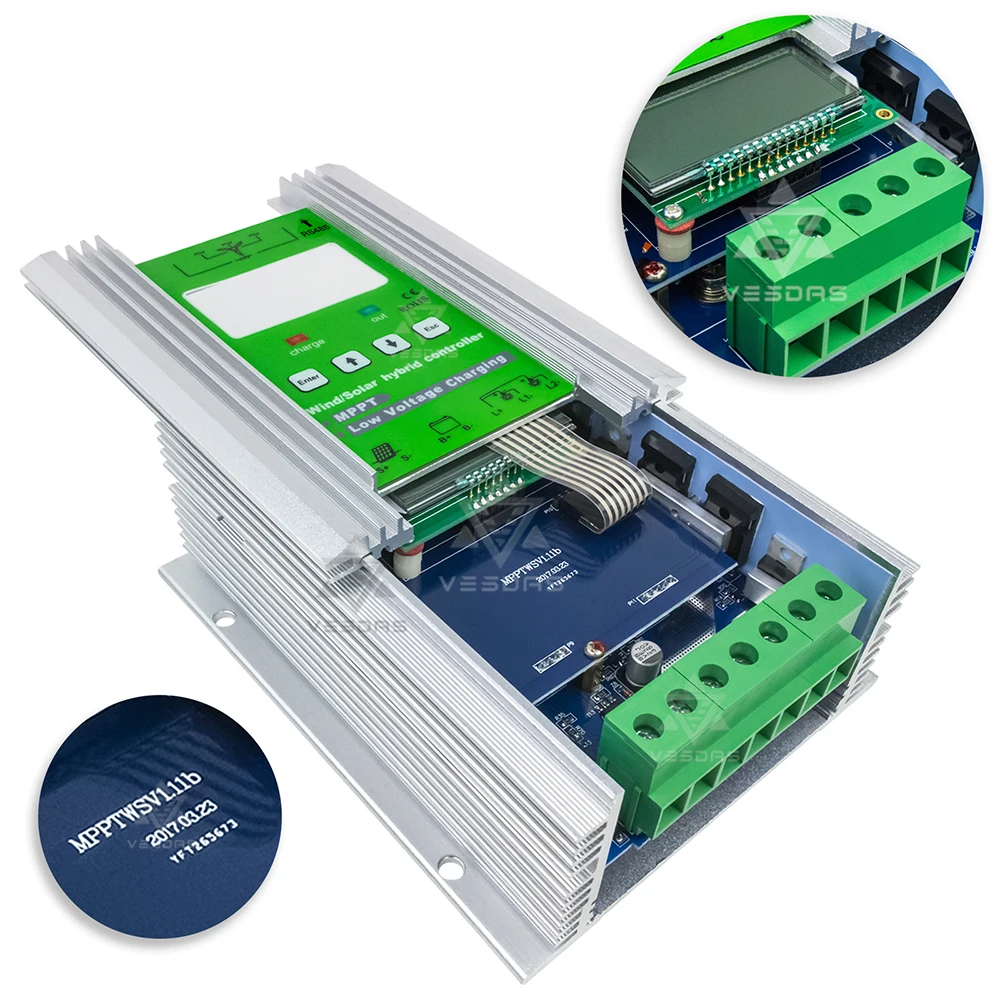

1.Performancesummary
Thank you for choosing the JN series Privilege Version Wind and Solar Hybrid solar charging controller. This series of products adopts advanced high-speed processor and MPPT control algorithm to ensure MPPT charging at low wind speed, featuring high response speed, high reliability and high indus- trial standard features.

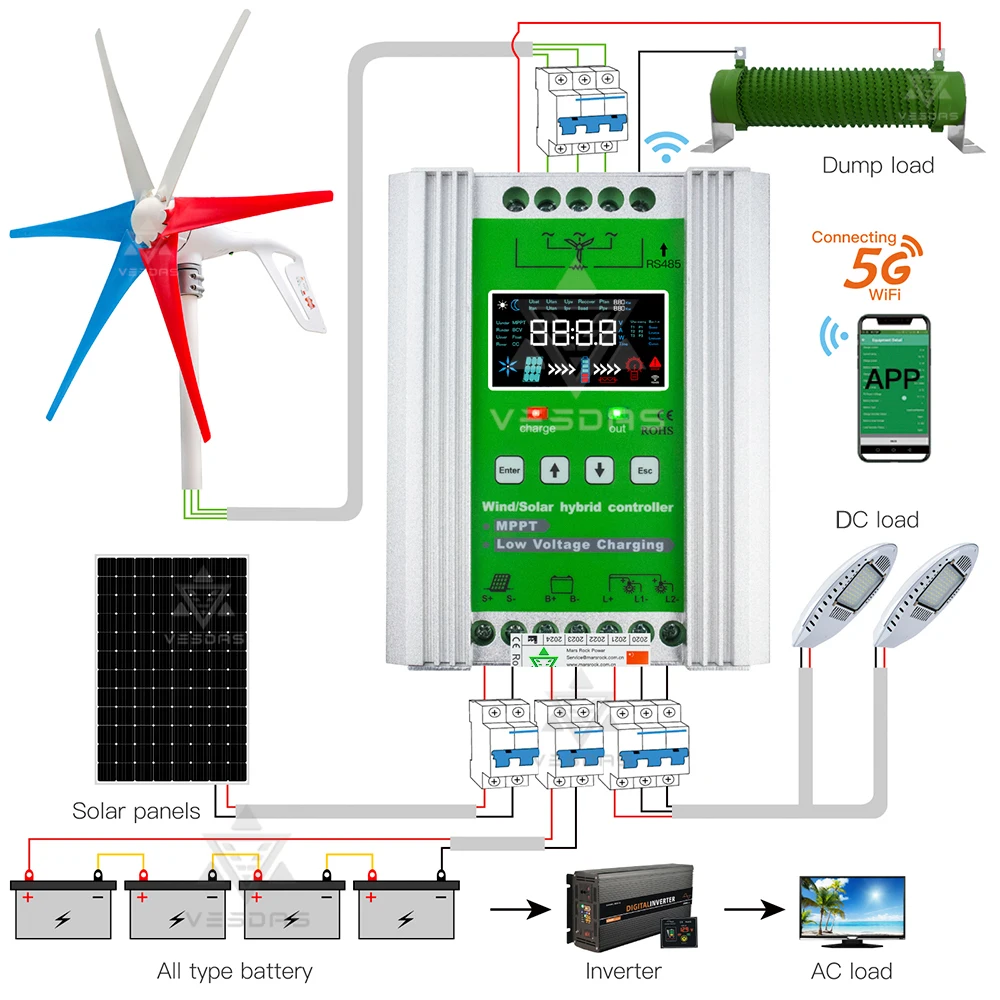

The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring. The controller is suitable for solar off-grid system, automatically controls charging and discharging, and can be applied In communication base stations, household systems, street lighting systems and field monitoring and other fields.

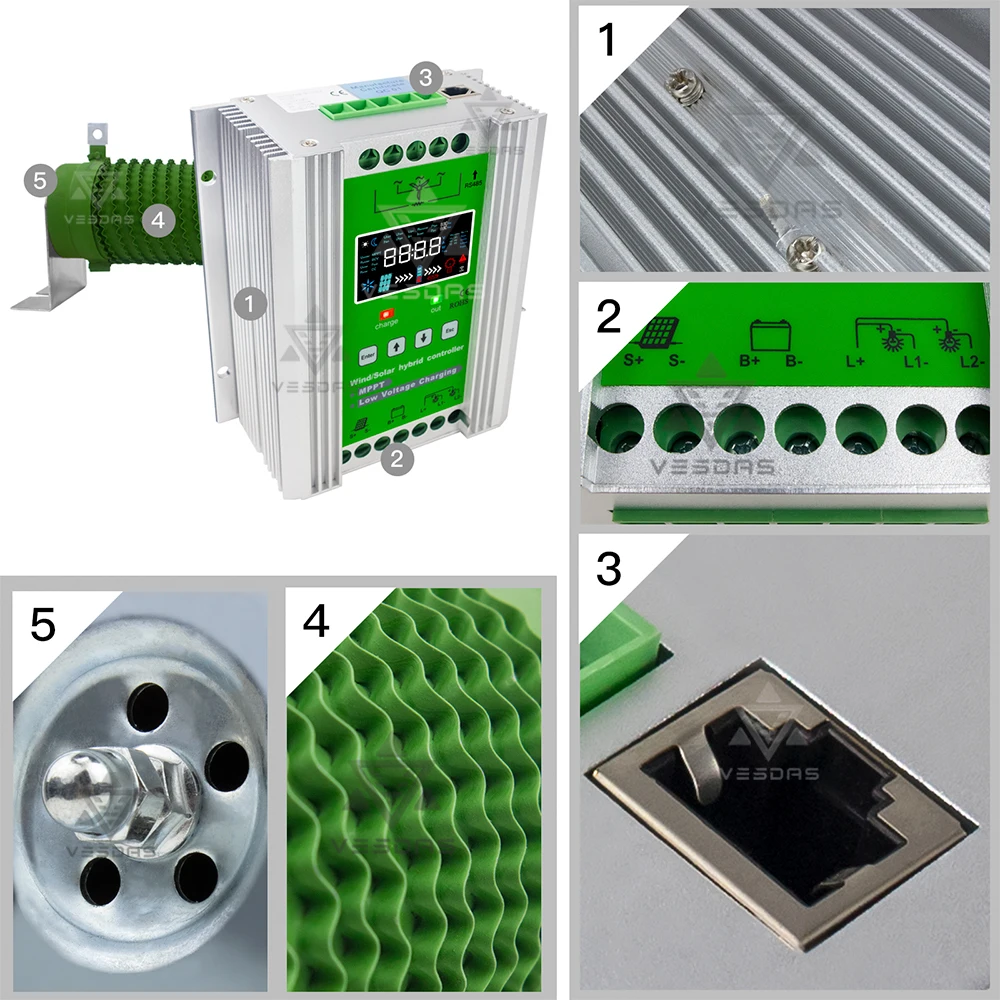

2. Product features
● The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
●The MPPT control algorithm used for fan charging ensures MPPT charging at low wind speed.
●Fan three-stage charging mode:MPPT charging-lifting charging-floating charging.
●Photovoltaic three-stage charging mode:CC constant current-lifting charging-floating charging.
●12V/24V battery system automatically recognizes, or 12V/24V battery system automatically recognizes (Optional).
●RS485 communication can provide communication protocol to facitilate unified management and secondary development for customer.

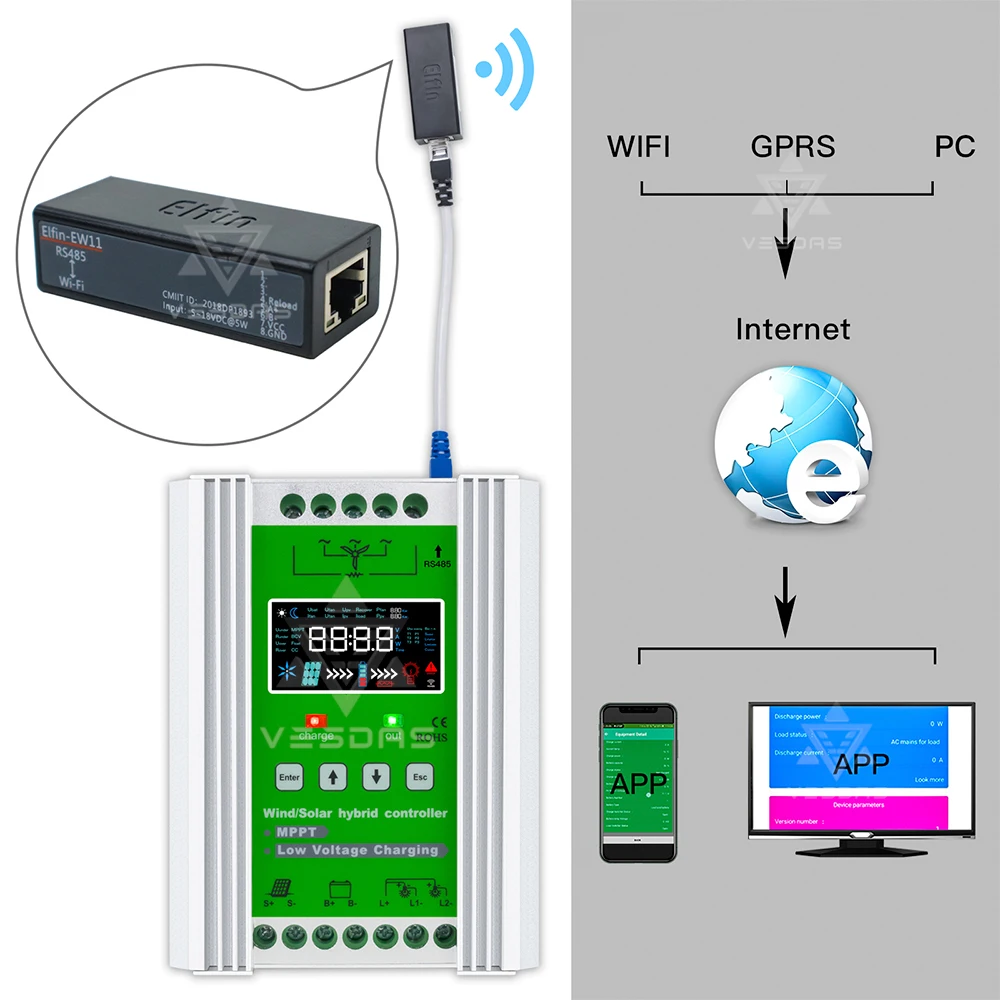

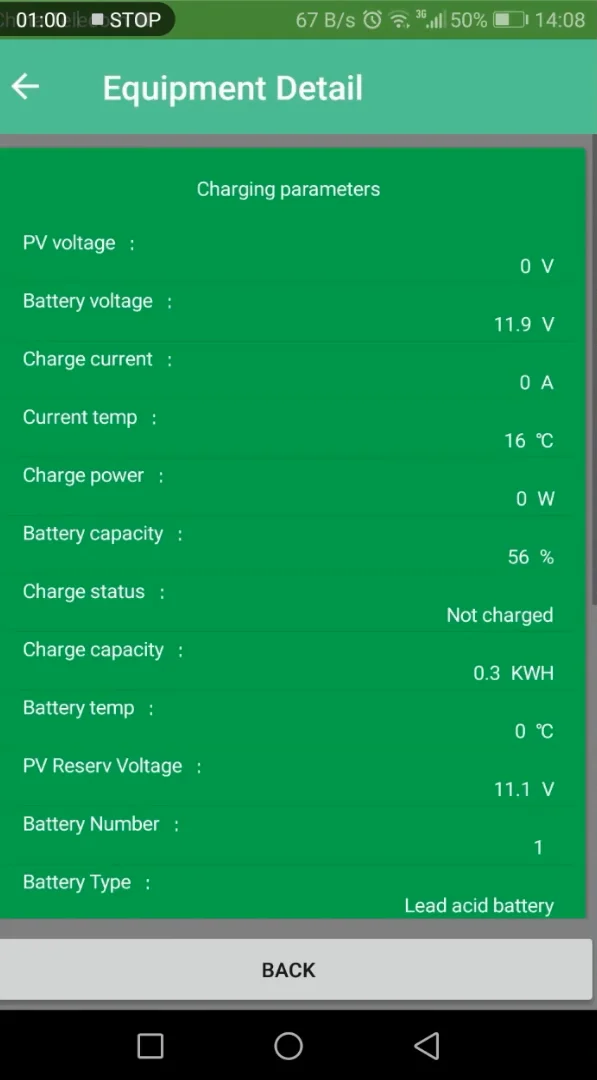

●The controller operating parameters can be viewed and set through the mobile phone APP.( Optional )
●The controller has comprehensive protection functions such as overcharge, over discharge and overload;
●Lead-acid battery, ternary lithium battery, lithium iron phosphate, custom four battery types charging mode to choosing;
●The controller has various load control modes, the load has two outputs, and the output power and time can be set;
●The controller has wide adaptability, adaptive day and night;
System Parameter
Model
600W30
1000W50
1200W60
1600W80
1600W80
2000W100
2400W120
3000W150
System Rated Voltage
12V(9V-16VDC)
24V(18V-32VDC)
48V(42V-60VDC)
Solar Module
Voc
27.6V
55.2V
105V
Vmp
>Vbat+1V
>Vbat+1V
>Vbat+1V
Imp
25A
40A
25A
33A
17A
21A
25A
30A
Workable Power
0W~300W
0W~500W
0W~600W
0W~800W
0W~800W
0W~1000W
0W~1200W
0W~1500W
Wind Turbine
Rated Voltage
12VAC（20.8VDC）
24VAC(41.6VDC）
48VAC（83.1VDC)
Rated Current
25A
40A
25A
33A
17A
21A
25A
30A
Workable Power
0W~300W
0W~500W
0W~600W
0W~800W
0W~800W
0W~1000W
0W~1200W
0W~1500W
DC Load
Out Power
0W~180W(Per one-way)
0W~700W(Per one-way)
0W~1400W(Per one-way)
Rated Voltage
12VDC
24VDC
48VDC
Current Max
30A(15A*2)
60A(30A*2)
60A(30A*2)
Conversion Efficiency
﹥98%
Operation Mode
Default to streetlight mode
Environment
Temperature
1) Working:-20℃～50℃; 2)Storage:-30℃～70℃
Humidity (°C)
10% ～ 90% No condensation
Protection Grade
IP30
Weight
G.W
3.8KGS
4.2KGS
4.7KGS

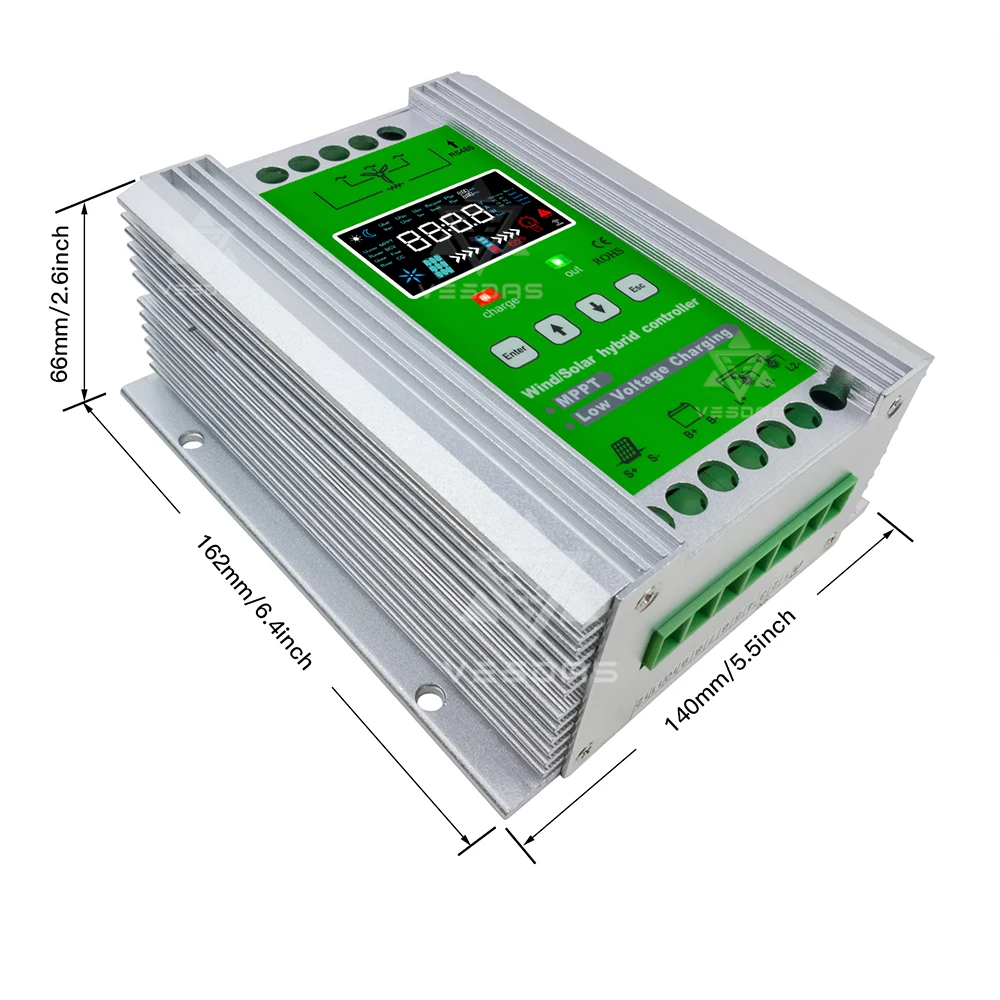

Size
Packing
36*30*13CM
36*30*13CM
39*33*13CM
Battery parameter reference table：
Lead acid battery (single 12V)
System rated voltage / V
12V system (1 string)
24V system (2 strings)
48V system (4 strings)
12V default value
Overvoltage (overcharge) / V
13～17V
26～34V
52～68V
15.5V
Overvoltage return / V
13～17V
26～34V
52～68V
15V
Increase charging voltage / V
9～15V
18～30V
36～60V
14.4V
Floating charge voltage / V
9～15V
18～30V
36～60V
13.8V
Undervoltage /V
7～13V
14～26V
28～52V
10.8V
Undervoltage return voltage /V
9～15V
18～30V
36～60V
13.1V
Ternary lithium battery (single section 3.7V)
System rated voltage
12V system (default 3 strings)
24V system (default 6 strings)
48V system (default 12 strings)
3 string defaults
Overvoltage (overcharge) / V
10.5～15V
21～30V
42～60V
13.5V
Overvoltage return / V
10.5～15V
21～30V
42～60V
12.6V
Increase charging voltage / V
10.5～15V
21～30V
42～60V
12.4V
Floating charge voltage / V
6～13.5V
12～27V
24～54V
12.0V
Undervoltage /V
6～13.5V
12～27V
24～54V
9.3V
Undervoltage return voltage /V
6～13.5V
12～27V
24～54V
10.5V
Number of strings
3～4
6～8
14～18
3
Lithium iron phosphate (single section 3.2V)
System rated voltage
12V system (default 3 strings)
24V system (default 6 strings)
48V system (default 12 strings)
3 string defaults
Overvoltage (overcharge) / V
9～12V
18～24V
36～48V
11.7V
Overvoltage return / V
9～12V
18～24V
36～48V
11.1V
Increase charging voltage / V
9～12V
18～24V
36～48V
10.8V
Floating charge voltage / V
9～12V
18～24V
36～48V
10.2V
Undervoltage /V
6～12V
12～24V
24～48V
8.4V
Undervoltage return voltage /V
6～12V
12～24V
24～48V
9.6V
Number of strings
3～4
6～8
14～18
3

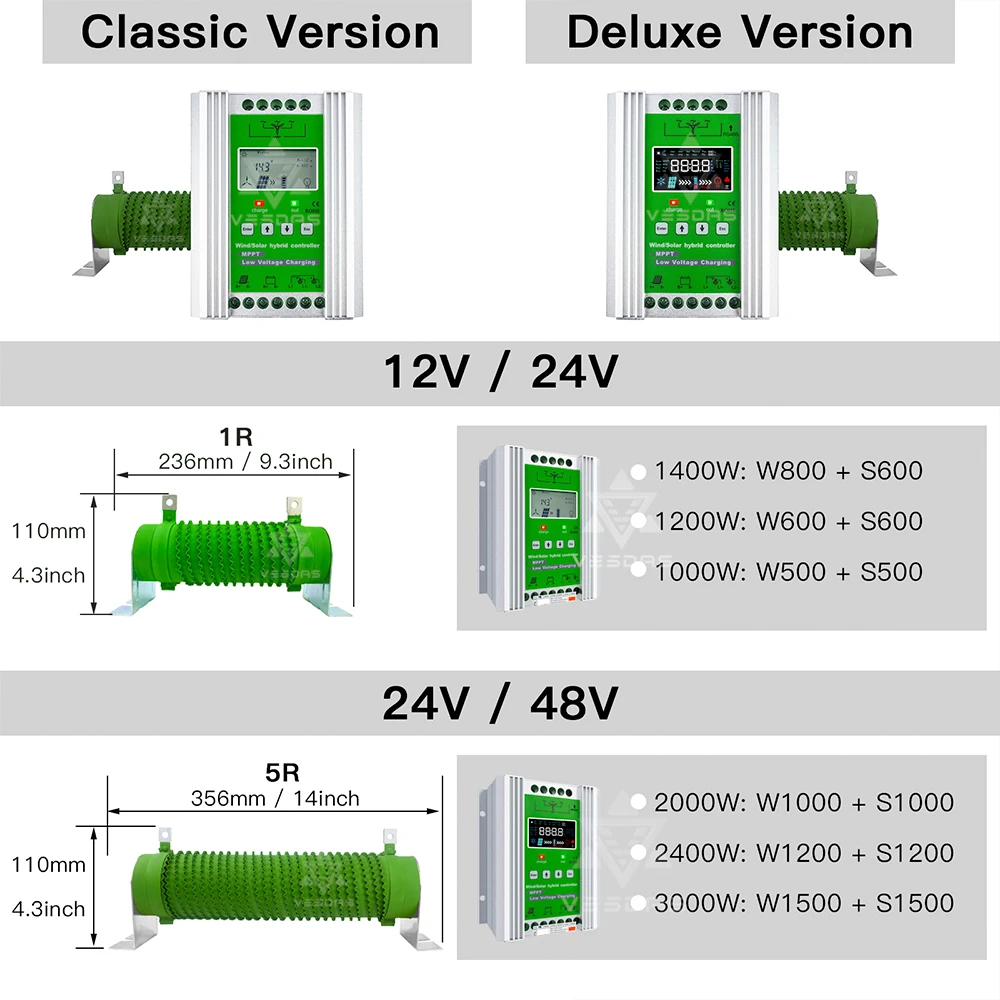

Unloading resistance dimension table
Power
L±5
L1±5
L2±5
A±3
B±1
C±0.5
D±1
H±5
W±1
300W
216
180
198
50
14
6
8
100
50
500W
236
180
208
60
16
6
8
110
60
1000W
356
300
328
60
16
6
8
110
60
Unit：mm.
Battery type setting

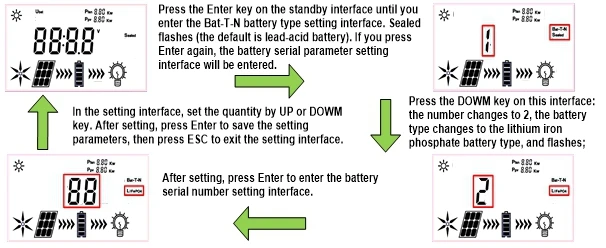

Similarly, other battery types and custom modes can be set by the same method as above. The digital serial number and battery type reference table are as follows:
Number type
type of battery
definition
1
Sealed
Lead-acid batteries
2
LiFePO4
Lithium iron phosphate battery
3
LiNiCoMn
Ternary lithium battery
4
Custom
customize
Time control parameter setting
Remark: In the same way, the time and space second time period T2, the second time period output power P2 percentage and the space time third time period T3, and the third time period output power P3 percentage can be set;
About: APP (WIFI or GPRS mode) connection device setting method, please refer to the corresponding APP manual;
State
The APP (WIFI or GPRS mode) is an optional accessory. The equipment can only use one mode for single communication, and cannot use two communication modes at the same time!
