Lighting Transformers>>>Lights & Lighting
Brand Name warm and happy
Origin CN(Origin)
Plug Type None
Output Voltage 3-11V/9-18V/12-26V/24-46V/36-65V/54-87V/75-135V
Certification CCC
Certification ce
Certification ROHS
Material Plastic and smart chips
Features All Isolated driver
Output Signal DC
Item Type Lighting Transformers
Warranty 3
Weight 0.03kg
Model Number TDHJ3432
Input Signal AC
Input Voltage AC85-265V
Application Place 1 LED Spotlight / LED Bulb / LED Corn Light
Application Place 2 LED Tube Light / LED Table Lamp
Application Place 3 LED track light / LED bulb
Application Place 4 LED panel light / LED chandelier / living room lamp
Feature 1 The voltage is automatically balanced based on lamp performance
Feature 2 Current stability
Note No-load test is prohibited
Output Current 300mA±5%/250mA±5%/
Feature 3 Use for ceiling lights
Warning ! Can't used on DC12V LED string lights !!!
Use for 1 LED lights LEDs
Use for 2 Light-emitting diode
Color
Voltage
AC85-265V

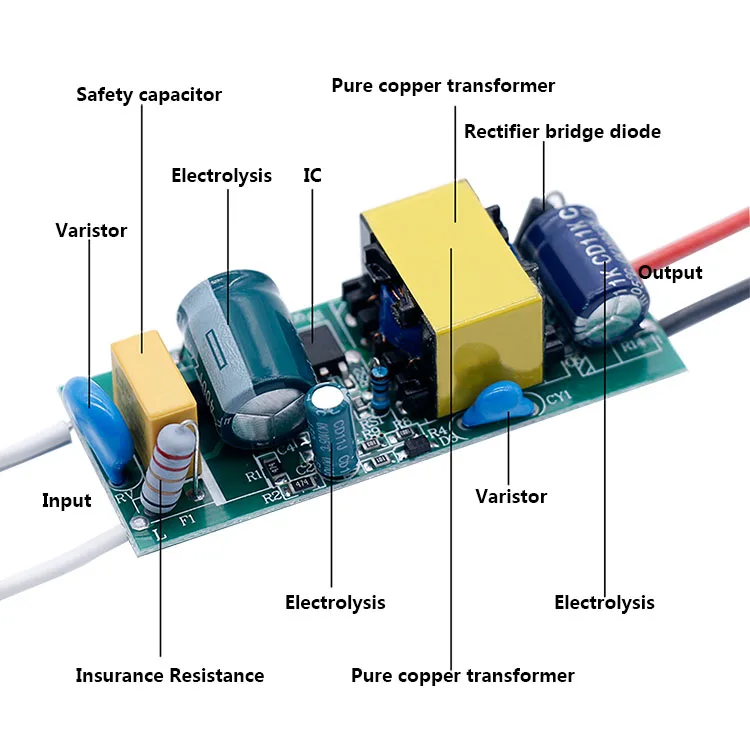

25-36W driver internal diagram display
Parameter
Warning: Can not be used in constant voltage DC12V light stringTip 1: How to choose the right driver for the LED?I met a lot of buyers and didn't know how to choose the right LED driver.First, you need to determine the lamp's input voltage and input current by 100%, then select the matching voltage and current of the LED driver.Example: We detected a bulb voltage of 40V and a current of 290mA.So we should choose the 8-12W 280-300mA option. Tip 2: Dear buyer, if you need a full power LED driver, please choose 280-300 current product, this is a full power LED driver. Tip 3: The no-load test is forbidden. The voltage is too large and the data is inaccurate, so be sure to enter the bulb load test. All Isolated DriverFeatureThe LED Driver will automatically lit by balancing the voltage according to the lamp performance.Advantage ：1-TransformerBold copper wirePower is sufficient and temperature is low. 2-ChipAdopting the first-line brand IC-AishiHigh quality intelligent constant currentOvervoltage protection, overload protection,overheat protection, short circuit protectionNo flicker 3-Electrolytic CapacitorHigh frequency low resistance capacitorIn theory, if the LED driver is used for 8 hours a day, it can be used for 3 years. If the LED driver uses a temperature below 70 ° C, it can even be as long as 5 years. 4-Processing TechnologyAll use mechanized patches, efficient and stable. Eliminate manual soldering and lead to poor contact of electronic components. 5-Application PlaceLED track light / LED bulb LED Spotlight / LED Bulb / LED Corn Light LED Strip Light / LED Tube Light / LED Table LampLED panel light / LED chandelier / living room lamp
1-3W LED Driver
1-3W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：40*26*19mm AC230V load test Output Voltage: 3-12VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 3-27V(Danger! No-load testing is forbidden, and the test data is inaccurate.)

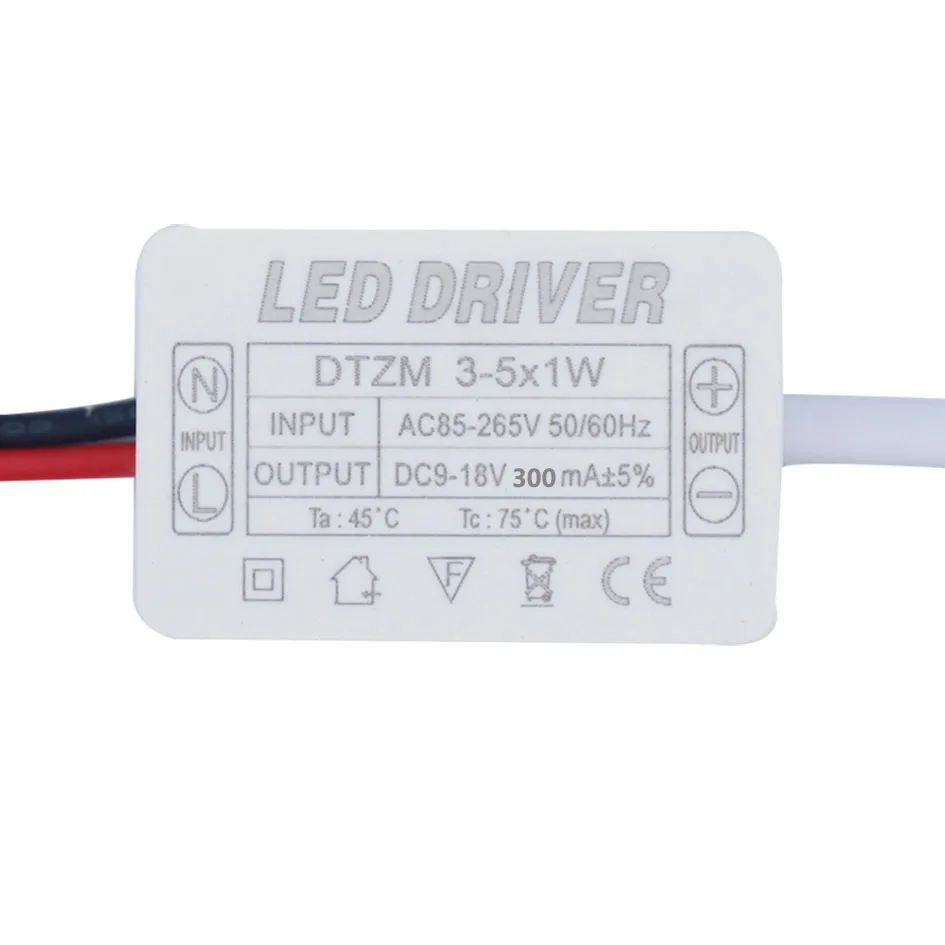

3-5W LED Driver
3-5W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：40*26*19mm AC230V load test Output Voltage: 9-18VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 9-29V(Danger! No-load testing is forbidden, and the test data is inaccurate.)

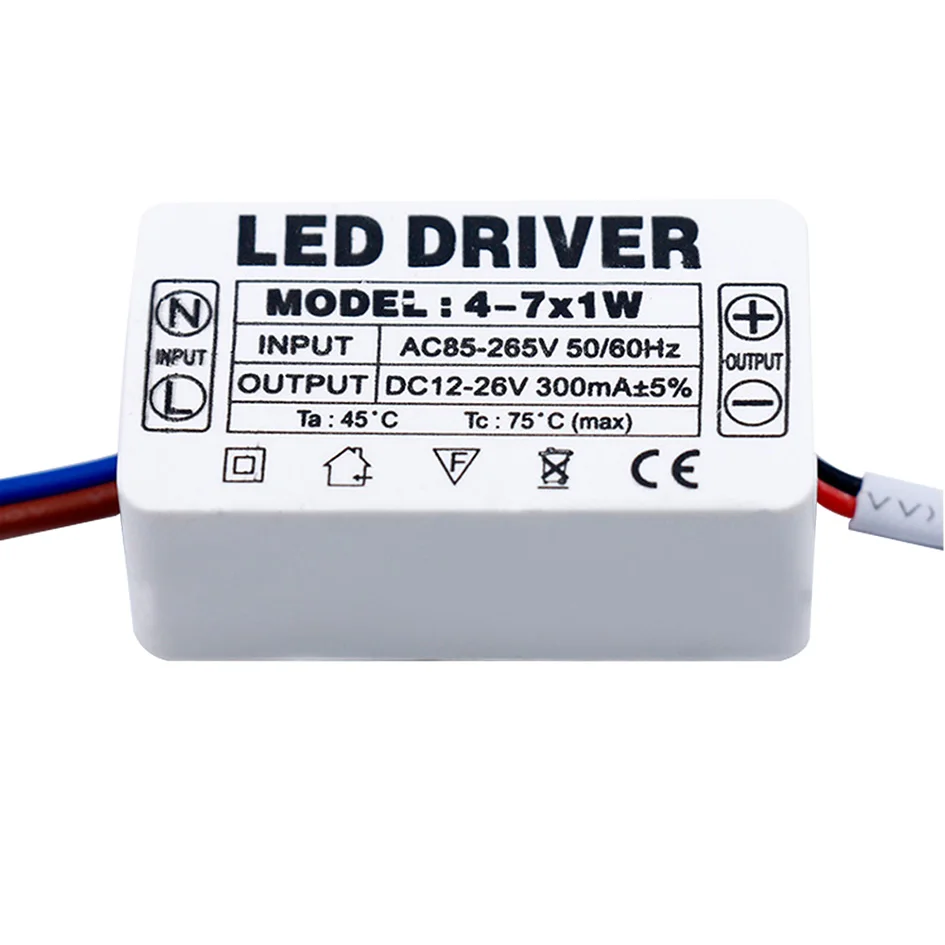

4-7W LED Driver
4-7W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：51*28*20mmAC230V load test Output Voltage: 12-26VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 12-32V(Danger! No-load testing is forbidden, and the test data is inaccurate.)
8-12W LED Driver
8-12W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：65*30*20mmAC230V load test Output Voltage: 24-46VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 24-59V(Danger! No-load testing is forbidden, and the test data is inaccurate.)

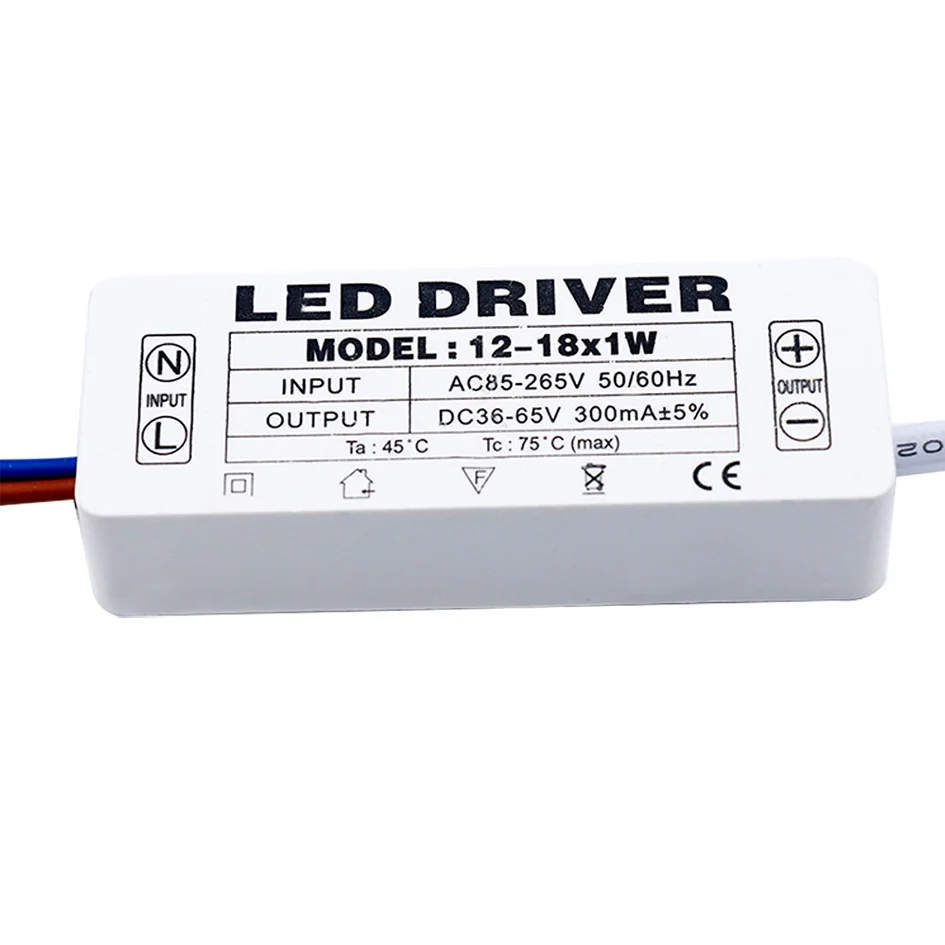

12-18W LED Driver
12-18W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：83*30*20mmAC230V load test Output Voltage: 36-65VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 36-88V(Danger! No-load testing is forbidden, and the test data is inaccurate.)

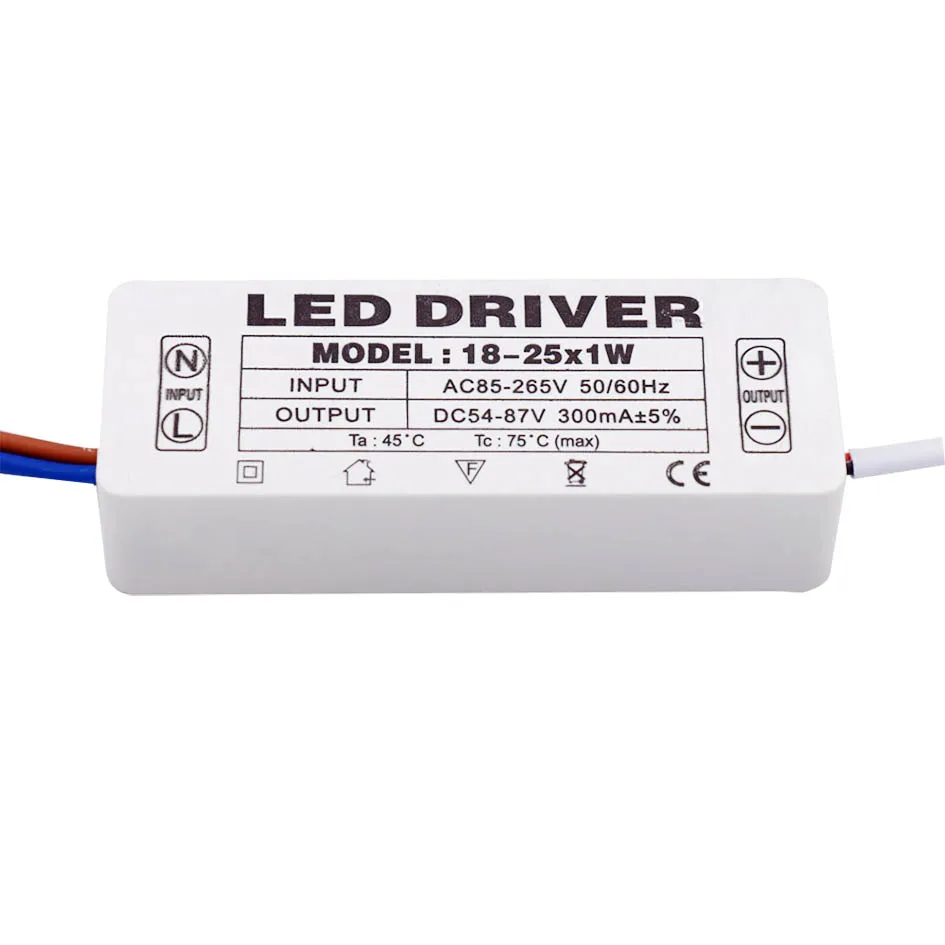

18-25W LED Driver
18-25W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：83*30*20mmAC230V load test Output Voltage: 54-87VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 54-134V(Danger! No-load testing is forbidden, and the test data is inaccurate.)

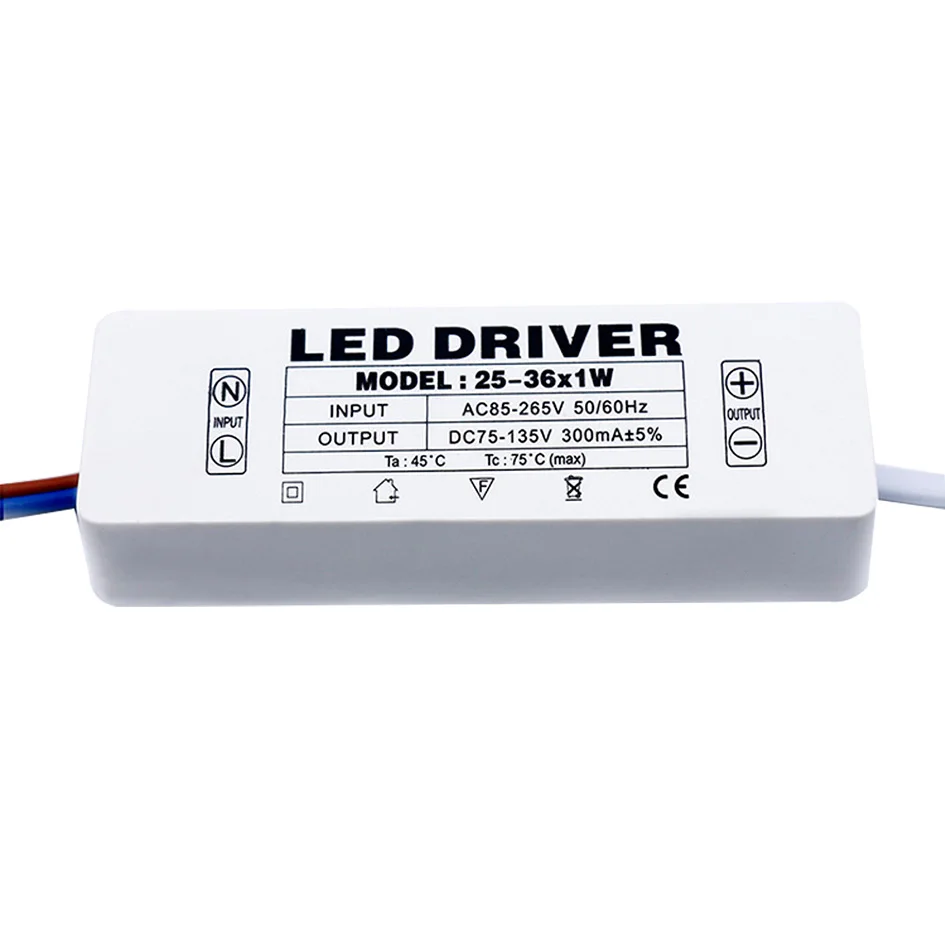

25-36W LED Driver
25-36W LED Driver (Use 3 years)Input Voltage: 85-265VSize ：100*33*20mmAC230V load test Output Voltage: 75-135VOutput Current: 280-300mAAC230V no-load test: Output Voltage: 75-135V(Danger! No-load testing is forbidden, and the test data is inaccurate.)
