CC2652 BLE Simplelink 2.4G Zigbee2MQTT Thread Home Assistant

Furniture Legs>>>Furniture

Origin CN(Origin)

Type Furniture Leg

modname=ckeditor The coordinator firmware is pre-flashed.Supports: coordinator,routerConfirmed working with ZHA, ZIGBEE2MQTT

Cool feature:

Super tiny CC2652R1 multiprotocol 2.4GHz development dongle

Zigbee coordinator/router or as an Openthread border router

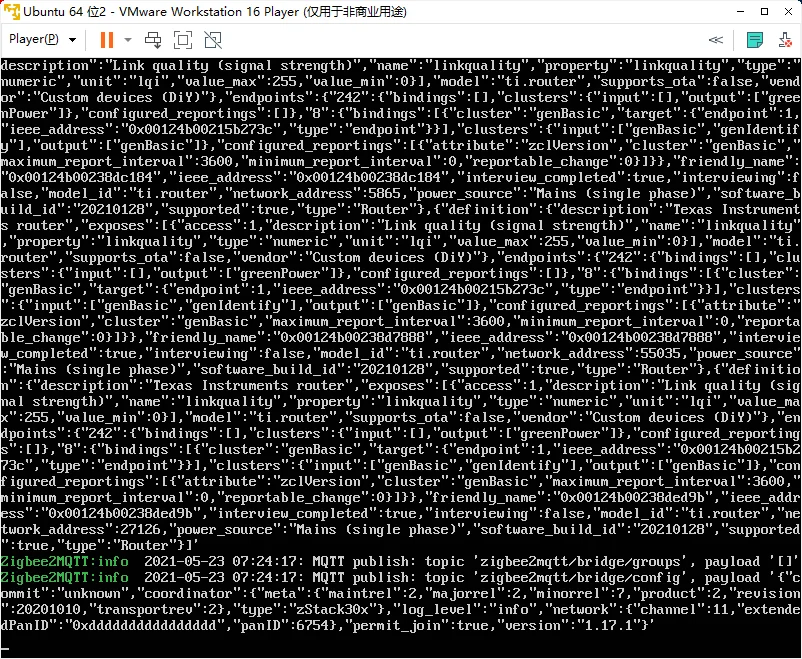

Zigbee2MQTT adapter

Compatible with LAUNCH-XL CC2652R1

DIO break out with 2.0mm pitch hole

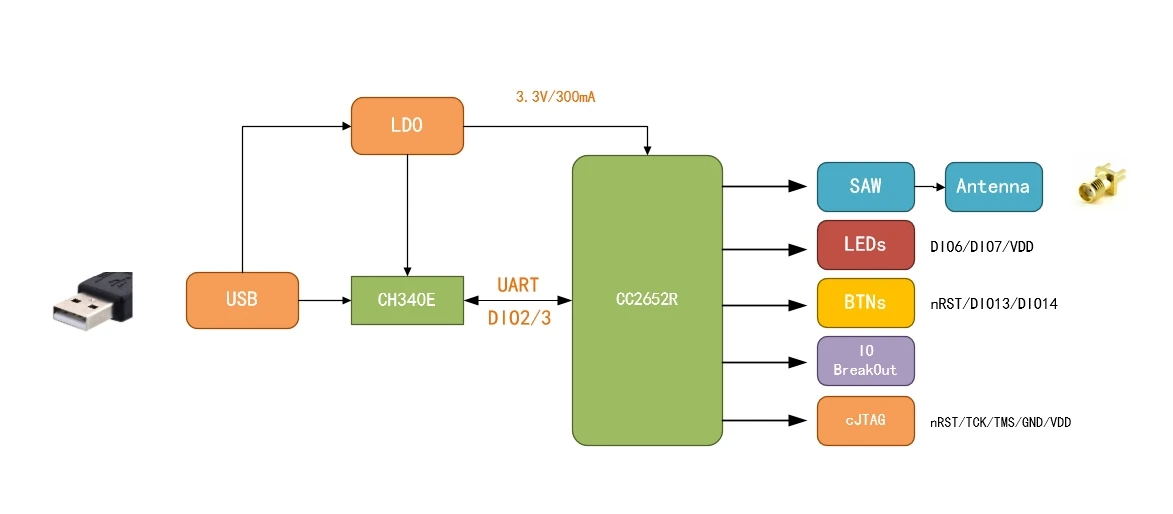

On board function:

3xLED(Red--3.3V/Green--DIO7/Blue--DIO6)3xButton (BTN1--DIO13/BTN2--DIO14/RST--nRESET)Integrated with CH340E

Usage:

Zigbee2MQTTSnifferContiki/Openthread/Simplelink study

Dimension：

5.5cm*2.3cm*1.3cm

BOM：

muRata L/CEPSON XTALLINKS:

https://www.zigbee2mqtt.io/information/supported_adapters.html

Firmware:

https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator/Z-Stack_3.x.0/bin
